医学图像分割模型U-Net介绍和Kaggle的Top1解决方案源码解析
内容列表
介绍
先决条件
什么是U-NET
U-NET结构
KAGGLE数据科学SCIENCE BOWL 2018 挑战赛
介绍
计算机视觉是人工智能的一个领域，训练计算机解释和理解视觉世界。利用来自相机、视频和深度学习模型的数字图像，机器可以准确地识别和分类物体，然后对它们看到的东西做出反应。
在过去几年里，深度学习使得计算机视觉领域迅速发展。在这篇文章中，我想讨论计算机视觉中一个叫做分割的特殊任务。尽管研究人员已经提出了许多方法来解决这个问题，但我将讨论一种特殊的架构，即UNET，它使用一个完全卷积的网络模型来完成这项任务。
我们将利用UNET构建Kaggle SCIENCE BOWL 2018 挑战赛的第一解决方案。
先决条件
这篇文章是假设读者已经熟悉机器学习和卷积网络的基本概念。同时，他/她也有一些使用Python和Keras库的ConvNets的工作知识。
什么是市场细分?
分割的目的是将图像的不同部分分割成可感知的相干部分。细分有两种类型:
语义分割(基于标记类的像素级预测)
实例分割(目标检测和目标识别)
在这篇文章中，我们将主要关注语义分割。
U-NET是什么?
U-Net创建于2015年，是一款专为生物医学图像分割而开发的CNN。目前，U-Net已经成为一种非常流行的用于语义分割的端到端编解码器网络。它有一个独特的上下结构，有一个收缩路径和一个扩展路径。
U-NET 结构
U-Net下采样路径由4个block组成，其层数如下:
3x3 CONV (ReLU +批次标准化和Dropout使用)
3x3 CONV (ReLU +批次标准化和Dropout使用)
2x2 最大池化
当我们沿着这些块往下走时，特征图会翻倍，从64开始，然后是128、256和512。
瓶颈层由2个CONV层、BN和Dropout组成
与下采样相似上采样路径由4个块组成，层数如下:
反卷积层
从特征图中拼接出相应的收缩路径
3x3 CONV (ReLU +BN和Dropout)
3x3 CONV (ReLU +BN和Dropout)
KAGGLE DATA SCIENCE BOWL 2018 CHALLENGE
这项挑战的主要任务是在图像中检测原子核。通过自动化核检测，你可以帮助更快的解锁治疗。识别细胞核是大多数分析的起点，因为人体30万亿个细胞中的大多数都包含一个充满DNA的细胞核，而DNA是给每个细胞编程的遗传密码。识别细胞核使研究人员能够识别样本中的每个细胞，并通过测量细胞对各种治疗的反应，研究人员可以了解潜在的生物学过程。

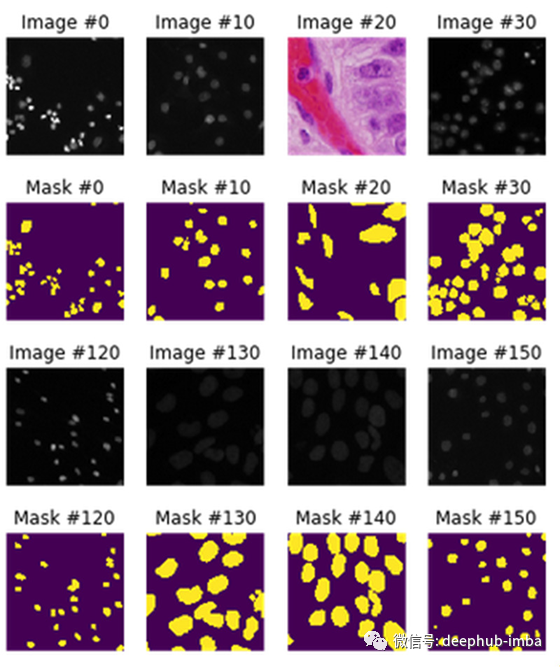

样本图像，目标和方法
我们将使用U-Net这个专门为分割任务而设计的CNN自动生成图像遮罩
导入所有必要的包和模块
import os
import sys
import random
import warnings
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from tqdm import tqdm
from itertools import chain
from skimage.io import imread, imshow, imread_collection, concatenate_images
from skimage.transform import resize
from skimage.morphology import label
from keras.models import Model, load_model
from keras.layers import Input
from keras.layers.core import Dropout, Lambda
from keras.layers.convolutional import Conv2D, Conv2DTranspose
from keras.layers.pooling import MaxPooling2D
from keras.layers.merge import concatenate
from keras.callbacks import EarlyStopping, ModelCheckpoint
from keras import backend as K
import tensorflow as tf
IMG_WIDTH = 128
IMG_HEIGHT = 128
IMG_CHANNELS = 3
TRAIN_PATH = './U_NET/train/'
TEST_PATH = './U_NET/validation/'
warnings.filterwarnings('ignore', category=UserWarning, module='skimage')
seed = 42
random.seed = seed
np.random.seed = seed为训练和测试数据收集我们的文件名
train_ids = next(os.walk(TRAIN_PATH))[1]
test_ids = next(os.walk(TEST_PATH))[1]创建尺寸为128 x 128的图像遮罩(黑色图像)
print('Getting and resizing training images ... ')
X_train = np.zeros((len(train_ids), IMG_HEIGHT, IMG_WIDTH, IMG_CHANNELS), dtype=np.uint8)
Y_train = np.zeros((len(train_ids), IMG_HEIGHT, IMG_WIDTH, 1), dtype=np.bool)# Re-sizing our training images to 128 x 128
# Note sys.stdout prints info that can be cleared unlike print.
# Using TQDM allows us to create progress bars
sys.stdout.flush()
for n, id_ in tqdm(enumerate(train_ids), total=len(train_ids)):
path = TRAIN_PATH + id_
img = imread(path + '/images/' + id_ + '.png')[:,:,:IMG_CHANNELS]
img = resize(img, (IMG_HEIGHT, IMG_WIDTH), mode='constant', preserve_range=True)
X_train[n] = img
mask = np.zeros((IMG_HEIGHT, IMG_WIDTH, 1), dtype=np.bool)
# Now we take all masks associated with that image and combine them into one single mask
for mask_file in next(os.walk(path + '/masks/'))[2]:
mask_ = imread(path + '/masks/' + mask_file)
mask_ = np.expand_dims(resize(mask_, (IMG_HEIGHT, IMG_WIDTH), mode='constant',
preserve_range=True), axis=-1)
mask = np.maximum(mask, mask_)
# Y_train is now our single mask associated with our image
Y_train[n] = mask
# Get and resize test images
X_test = np.zeros((len(test_ids), IMG_HEIGHT, IMG_WIDTH, IMG_CHANNELS), dtype=np.uint8)
sizes_test = []
print('Getting and resizing test images ... ')
sys.stdout.flush()
# Here we resize our test images
for n, id_ in tqdm(enumerate(test_ids), total=len(test_ids)):
path = TEST_PATH + id_
img = imread(path + '/images/' + id_ + '.png')[:,:,:IMG_CHANNELS]
sizes_test.append([img.shape[0], img.shape[1]])
img = resize(img, (IMG_HEIGHT, IMG_WIDTH), mode='constant', preserve_range=True)
X_test[n] = img
print('Done!')建立U-Net模型
def my_iou_metric(label, pred): metric_value = tf.py_func(iou_metric_batch, [label, pred], tf.float32)
return metric_value
# Build U-Net model
# Note we make our layers varaibles so that we can concatenate or stack
# This is required so that we can re-create our U-Net Modelinputs = Input((IMG_HEIGHT, IMG_WIDTH, IMG_CHANNELS))
s = Lambda(lambda x: x / 255) (inputs)c1 = Conv2D(16, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (s)
c1 = Dropout(0.1) (c1)
c1 = Conv2D(16, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (c1)
p1 = MaxPooling2D((2, 2)) (c1)c2 = Conv2D(32, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (p1)
c2 = Dropout(0.1) (c2)
c2 = Conv2D(32, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (c2)
p2 = MaxPooling2D((2, 2)) (c2)c3 = Conv2D(64, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (p2)
c3 = Dropout(0.2) (c3)
c3 = Conv2D(64, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (c3)
p3 = MaxPooling2D((2, 2)) (c3)c4 = Conv2D(128, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (p3)
c4 = Dropout(0.2) (c4)
c4 = Conv2D(128, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (c4)
p4 = MaxPooling2D(pool_size=(2, 2)) (c4)c5 = Conv2D(256, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (p4)
c5 = Dropout(0.3) (c5)
c5 = Conv2D(256, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (c5)u6 = Conv2DTranspose(128, (2, 2), strides=(2, 2), padding='same') (c5)
u6 = concatenate([u6, c4])
c6 = Conv2D(128, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (u6)
c6 = Dropout(0.2) (c6)
c6 = Conv2D(128, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (c6)u7 = Conv2DTranspose(64, (2, 2), strides=(2, 2), padding='same') (c6)
u7 = concatenate([u7, c3])
c7 = Conv2D(64, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (u7)
c7 = Dropout(0.2) (c7)
c7 = Conv2D(64, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (c7)u8 = Conv2DTranspose(32, (2, 2), strides=(2, 2), padding='same') (c7)
u8 = concatenate([u8, c2])
c8 = Conv2D(32, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (u8)
c8 = Dropout(0.1) (c8)
c8 = Conv2D(32, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (c8)u9 = Conv2DTranspose(16, (2, 2), strides=(2, 2), padding='same') (c8)
u9 = concatenate([u9, c1], axis=3)
c9 = Conv2D(16, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (u9)
c9 = Dropout(0.1) (c9)
c9 = Conv2D(16, (3, 3), activation='elu', kernel_initializer='he_normal', padding='same') (c9)# Note our output is effectively a mask of 128 x 128
outputs = Conv2D(1, (1, 1), activation='sigmoid') (c9)model = Model(inputs=[inputs], outputs=[outputs])
model.compile(optimizer='adam', loss='binary_crossentropy', metrics=[my_iou_metric])
model.summary()训练我们的模型
model_path = "./nuclei_finder_unet_1.h5"
checkpoint = ModelCheckpoint(model_path,
monitor="val_loss",
mode="min",
save_best_only = True,
verbose=1)
earlystop = EarlyStopping(monitor = 'val_loss',
min_delta = 0,
patience = 5,
verbose = 1,
restore_best_weights = True)
# Fit our model
results = model.fit(X_train, Y_train, validation_split=0.1,
batch_size=16, epochs=10,
callbacks=[earlystop, checkpoint])生成验证数据的预测
# Predict on training and validation data
# Note our use of mean_iou metri
model = load_model('./nuclei_finder_unet_1.h5',
custom_objects={'my_iou_metric': my_iou_metric})
# the first 90% was used for training
preds_train = model.predict(X_train[:int(X_train.shape[0]*0.9)], verbose=1)
# the last 10% used as validation
preds_val = model.predict(X_train[int(X_train.shape[0]*0.9):], verbose=1)
#preds_test = model.predict(X_test, verbose=1)
# Threshold predictions
preds_train_t = (preds_train > 0.5).astype(np.uint8)
preds_val_t = (preds_val > 0.5).astype(np.uint8)在我们的训练数据上显示我们预测的遮罩
ix = random.randint(0, 602)
plt.figure(figsize=(20,20))
# Our original training image
plt.subplot(131)
imshow(X_train[ix])
plt.title("Image")
# Our original combined mask
plt.subplot(132)
imshow(np.squeeze(Y_train[ix]))
plt.title("Mask")
# The mask our U-Net model predicts
plt.subplot(133)
imshow(np.squeeze(preds_train_t[ix] > 0.5))
plt.title("Predictions")
plt.show()最后这里是完整的代码：
数据集：https://www.kaggle.com/c/data-science-bowl-2018
本文代码：https://github.com/bhaveshgoyal27/mediumblogs/blob/master/U-Net.ipynb
作者：Bhavesh Goyal
deephub翻译组
