1. 环境
采用的是虚拟机上安装CentOs7.x，安装java15环境，安装mysql8.0.28，这两步骤省略，之前的文章里面有讲，属于基础环境配置，也比较简单，说明我用的是一台CentOs7.x的虚拟机实例，都安装在一台上面，需要开放8081、3306和5801的防火墙，不然会网络访问不到。
2. SeaTunnel安装部署
2.1下载安装包
export version="2.3.3"
wget "https://archive.apache.org/dist/seatunnel/${version}/apache-seatunnel-${version}-bin.tar.gz"
tar -xzvf "apache-seatunnel-${version}-bin.tar.gz"
2.2 设置环境变量
vi /etc/profile.d/seatunnel.sh
# 新增如下变量
export SEATUNNEL_HOME=/root/apache-seatunnel-2.3.3 #这里设置的是seatunnel的解压目录即可
export PATH=$PATH:$SEATUNNEL_HOME/bin
然后执行source /etc/profile
2.3 安装连接器插件
进入/root/apache-seatunnel-2.3.3路径下执行安装连接器插件
![file]()
sh bin/install-plugin.sh 2.3.3
可以修改/root/apache-seatunnel-2.3.3/connectors下的plugin-mapping.properties文件，根据需要加入连接器插件，把不需要的连接器插件名称删除留下需要的即可，然后执行上面的安装命令，由于我没有修改这个文件，默认安装的是全部的连接器插件，所以需要一点时间，下载速度取决于网速。

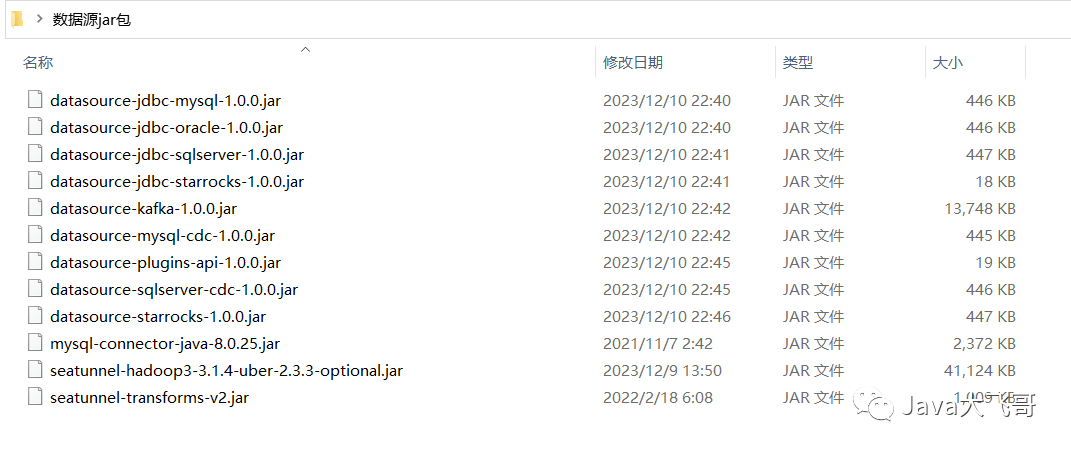

2.4 拷贝jar包到lib下
![file]()
2.5 启动命令
进入/root/apache-seatunnel-2.3.3路径下执行启动命令：
sh bin/seatunnel-cluster.sh -d -DJvmOption="-Xms1G -Xmx1G"
或者
nohup sh bin/seatunnel-cluster.sh 2>&1 &

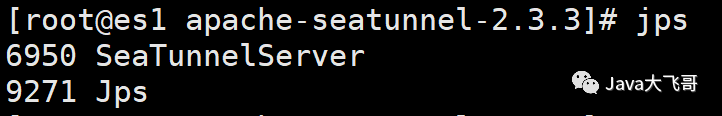

jps查看seatunnel的进程如下：
![file]()
查看logs下的日志均正常输出没有报错，说明启动成功，然后执行下面的官方demo没有报错，说明seatunnel启动是正常的。
2.6 执行官方client提交任务demo
进入/root/apache-seatunnel-2.3.3路径下执行启动命令：
$SEATUNNEL_HOME/bin/seatunnel.sh --config $SEATUNNEL_HOME/config/v2.batch.config.template
该命令来自于官网，执行结果如下：
[root@es1 apache-seatunnel-2.3.3]# $SEATUNNEL_HOME/bin/seatunnel.sh --config $SEATUNNEL_HOME/config/v2.batch.config.template
WARNING: sun.reflect.Reflection.getCallerClass is not supported. This will impact performance.
12月 19, 2023 12:11:20 上午 com.hazelcast.internal.config.AbstractConfigLocator
信息: Loading configuration '/root/apache-seatunnel-2.3.3/config/seatunnel.yaml' from System property 'seatunnel.config'
12月 19, 2023 12:11:20 上午 com.hazelcast.internal.config.AbstractConfigLocator
信息: Using configuration file at /root/apache-seatunnel-2.3.3/config/seatunnel.yaml
12月 19, 2023 12:11:20 上午 org.apache.seatunnel.engine.common.config.SeaTunnelConfig
信息: seatunnel.home is /root/apache-seatunnel-2.3.3
12月 19, 2023 12:11:20 上午 com.hazelcast.internal.config.AbstractConfigLocator
信息: Loading configuration '/root/apache-seatunnel-2.3.3/config/hazelcast.yaml' from System property 'hazelcast.config'
12月 19, 2023 12:11:20 上午 com.hazelcast.internal.config.AbstractConfigLocator
信息: Using configuration file at /root/apache-seatunnel-2.3.3/config/hazelcast.yaml
12月 19, 2023 12:11:20 上午 com.hazelcast.internal.config.AbstractConfigLocator
信息: Loading configuration '/root/apache-seatunnel-2.3.3/config/hazelcast-client.yaml' from System property 'hazelcast.client.config'
12月 19, 2023 12:11:20 上午 com.hazelcast.internal.config.AbstractConfigLocator
信息: Using configuration file at /root/apache-seatunnel-2.3.3/config/hazelcast-client.yaml
2023-12-19 00:11:21,149 INFO com.hazelcast.client.impl.spi.ClientInvocationService - hz.client_1 [seatunnel] [5.1] Running with 2 response threads, dynamic=true
2023-12-19 00:11:21,233 INFO com.hazelcast.core.LifecycleService - hz.client_1 [seatunnel] [5.1] HazelcastClient 5.1 (20220228 - 21f20e7) is STARTING
2023-12-19 00:11:21,234 INFO com.hazelcast.core.LifecycleService - hz.client_1 [seatunnel] [5.1] HazelcastClient 5.1 (20220228 - 21f20e7) is STARTED
WARNING: An illegal reflective access operation has occurred
WARNING: Illegal reflective access by com.hazelcast.internal.networking.nio.SelectorOptimizer (file:/root/apache-seatunnel-2.3.3/starter/seatunnel-starter.jar) to field sun.nio.ch.SelectorImpl.selectedKeys
WARNING: Please consider reporting this to the maintainers of com.hazelcast.internal.networking.nio.SelectorOptimizer
WARNING: Use --illegal-access=warn to enable warnings of further illegal reflective access operations
WARNING: All illegal access operations will be denied in a future release
2023-12-19 00:11:21,294 INFO com.hazelcast.client.impl.connection.ClientConnectionManager - hz.client_1 [seatunnel] [5.1] Trying to connect to cluster: seatunnel
2023-12-19 00:11:21,298 INFO com.hazelcast.client.impl.connection.ClientConnectionManager - hz.client_1 [seatunnel] [5.1] Trying to connect to [localhost]:5801
2023-12-19 00:11:21,352 INFO com.hazelcast.core.LifecycleService - hz.client_1 [seatunnel] [5.1] HazelcastClient 5.1 (20220228 - 21f20e7) is CLIENT_CONNECTED
2023-12-19 00:11:21,352 INFO com.hazelcast.client.impl.connection.ClientConnectionManager - hz.client_1 [seatunnel] [5.1] Authenticated with server [localhost]:5801:772efc0a-4c18-4a4b-baa7-b82b9ae4a395, server version: 5.1, local address: /127.0.0.1:36095
2023-12-19 00:11:21,356 INFO com.hazelcast.internal.diagnostics.Diagnostics - hz.client_1 [seatunnel] [5.1] Diagnostics disabled. To enable add -Dhazelcast.diagnostics.enabled=true to the JVM arguments.
2023-12-19 00:11:21,384 INFO com.hazelcast.client.impl.spi.ClientClusterService - hz.client_1 [seatunnel] [5.1]
Members [1] {
Member [localhost]:5801 - 772efc0a-4c18-4a4b-baa7-b82b9ae4a395
}
2023-12-19 00:11:21,421 INFO com.hazelcast.client.impl.statistics.ClientStatisticsService - Client statistics is enabled with period 5 seconds.
2023-12-19 00:11:21,706 INFO org.apache.seatunnel.engine.client.job.JobExecutionEnvironment - add common jar in plugins :[]
2023-12-19 00:11:21,733 INFO org.apache.seatunnel.core.starter.utils.ConfigBuilder - Loading config file from path: /root/apache-seatunnel-2.3.3/config/v2.batch.config.template
2023-12-19 00:11:21,799 INFO org.apache.seatunnel.core.starter.utils.ConfigShadeUtils - Load config shade spi: [base64]
2023-12-19 00:11:21,848 INFO org.apache.seatunnel.core.starter.utils.ConfigBuilder - Parsed config file: {
"env" : {
"execution.parallelism" : 2,
"job.mode" : "BATCH",
"checkpoint.interval" : 10000
},
"source" : [
{
"schema" : {
"fields" : {
"name" : "string",
"age" : "int"
}
},
"row.num" : 16,
"parallelism" : 2,
"result_table_name" : "fake",
"plugin_name" : "FakeSource"
}
],
"sink" : [
{
"plugin_name" : "Console"
}
]
}
2023-12-19 00:11:21,885 INFO org.apache.seatunnel.api.configuration.ReadonlyConfig - Config uses fallback configuration key 'plugin_name' instead of key 'factory'
2023-12-19 00:11:21,886 INFO org.apache.seatunnel.api.configuration.ReadonlyConfig - Config uses fallback configuration key 'plugin_name' instead of key 'factory'
2023-12-19 00:11:21,895 INFO org.apache.seatunnel.plugin.discovery.AbstractPluginDiscovery - Load SeaTunnelSink Plugin from /root/apache-seatunnel-2.3.3/connectors/seatunnel
2023-12-19 00:11:21,911 INFO org.apache.seatunnel.plugin.discovery.AbstractPluginDiscovery - Discovery plugin jar: FakeSource at: file:/root/apache-seatunnel-2.3.3/connectors/seatunnel/connector-fake-2.3.3.jar
2023-12-19 00:11:21,912 INFO org.apache.seatunnel.plugin.discovery.AbstractPluginDiscovery - Discovery plugin jar: Console at: file:/root/apache-seatunnel-2.3.3/connectors/seatunnel/connector-console-2.3.3.jar
2023-12-19 00:11:21,915 INFO org.apache.seatunnel.engine.core.parse.ConfigParserUtil - Currently, incorrect configuration of source_table_name and result_table_name options don't affect job running. In the future we will ban incorrect configurations.
2023-12-19 00:11:21,915 INFO org.apache.seatunnel.api.configuration.ReadonlyConfig - Config uses fallback configuration key 'plugin_name' instead of key 'factory'
2023-12-19 00:11:21,915 INFO org.apache.seatunnel.api.configuration.ReadonlyConfig - Config uses fallback configuration key 'plugin_name' instead of key 'factory'
2023-12-19 00:11:21,916 WARN org.apache.seatunnel.engine.core.parse.ConfigParserUtil - This configuration is not recommended. A source/transform(FakeSource) is configured with 'result_table_name' option value of 'fake', but subsequent transform/sink(Console) is not configured with 'source_table_name' option.
2023-12-19 00:11:21,919 INFO org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser - start generating all sources.
2023-12-19 00:11:21,919 INFO org.apache.seatunnel.api.configuration.ReadonlyConfig - Config uses fallback configuration key 'plugin_name' instead of key 'factory'
2023-12-19 00:11:21,953 INFO org.apache.seatunnel.plugin.discovery.AbstractPluginDiscovery - Load SeaTunnelSource Plugin from /root/apache-seatunnel-2.3.3/connectors/seatunnel
2023-12-19 00:11:21,970 INFO org.apache.seatunnel.plugin.discovery.AbstractPluginDiscovery - Discovery plugin jar: FakeSource at: file:/root/apache-seatunnel-2.3.3/connectors/seatunnel/connector-fake-2.3.3.jar
2023-12-19 00:11:21,974 INFO org.apache.seatunnel.plugin.discovery.AbstractPluginDiscovery - Load plugin: PluginIdentifier{engineType='seatunnel', pluginType='source', pluginName='FakeSource'} from classpath
2023-12-19 00:11:22,003 INFO org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser - start generating all transforms.
2023-12-19 00:11:22,003 INFO org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser - start generating all sinks.
2023-12-19 00:11:22,004 INFO org.apache.seatunnel.api.configuration.ReadonlyConfig - Config uses fallback configuration key 'plugin_name' instead of key 'factory'
2023-12-19 00:11:22,011 INFO org.apache.seatunnel.api.configuration.ReadonlyConfig - Config uses fallback configuration key 'plugin_name' instead of key 'factory'
2023-12-19 00:11:22,090 INFO org.apache.seatunnel.engine.client.job.ClientJobProxy - Start submit job, job id: 789162834679300097, with plugin jar [file:/root/apache-seatunnel-2.3.3/connectors/seatunnel/connector-fake-2.3.3.jar, file:/root/apache-seatunnel-2.3.3/connectors/seatunnel/connector-console-2.3.3.jar]
2023-12-19 00:11:22,893 INFO org.apache.seatunnel.engine.client.job.ClientJobProxy - Submit job finished, job id: 789162834679300097, job name: SeaTunnel
2023-12-19 00:11:22,956 WARN org.apache.seatunnel.engine.client.job.JobMetricsRunner - Failed to get job metrics summary, it maybe first-run
2023-12-19 00:11:24,370 INFO org.apache.seatunnel.engine.client.job.ClientJobProxy - Job (789162834679300097) end with state FINISHED
2023-12-19 00:11:24,416 INFO org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand -
***********************************************
Job Statistic Information
***********************************************
Start Time : 2023-12-19 00:11:21
End Time : 2023-12-19 00:11:24
Total Time(s) : 2
Total Read Count : 32
Total Write Count : 32
Total Failed Count : 0
***********************************************
2023-12-19 00:11:24,416 INFO com.hazelcast.core.LifecycleService - hz.client_1 [seatunnel] [5.1] HazelcastClient 5.1 (20220228 - 21f20e7) is SHUTTING_DOWN
2023-12-19 00:11:24,422 INFO com.hazelcast.client.impl.connection.ClientConnectionManager - hz.client_1 [seatunnel] [5.1] Removed connection to endpoint: [localhost]:5801:772efc0a-4c18-4a4b-baa7-b82b9ae4a395, connection: ClientConnection{alive=false, connectionId=1, channel=NioChannel{/127.0.0.1:36095->localhost/127.0.0.1:5801}, remoteAddress=[localhost]:5801, lastReadTime=2023-12-19 00:11:24.411, lastWriteTime=2023-12-19 00:11:24.371, closedTime=2023-12-19 00:11:24.420, connected server version=5.1}
2023-12-19 00:11:24,422 INFO com.hazelcast.core.LifecycleService - hz.client_1 [seatunnel] [5.1] HazelcastClient 5.1 (20220228 - 21f20e7) is CLIENT_DISCONNECTED
2023-12-19 00:11:24,431 INFO com.hazelcast.core.LifecycleService - hz.client_1 [seatunnel] [5.1] HazelcastClient 5.1 (20220228 - 21f20e7) is SHUTDOWN
2023-12-19 00:11:24,433 INFO org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand - Closed SeaTunnel client......
2023-12-19 00:11:24,433 INFO org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand - Closed metrics executor service ......
2023-12-19 00:11:24,438 INFO org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand - run shutdown hook because get close signal
3. SeaTunnel-Web安装部署
3.1 下载安装包
安装包下在地址如下：
https://seatunnel.apache.org/download
解压：
tar -zxvf apache-seatunnel-web-bin-${project.version}.tar.gz
解压目录如下：
![file]()
3.2 初始化数据库脚本或修改配置application.yml中的数据库连接信息
3.2.1 不使用它的初始化脚本自动创建
事先，手动执行好脚本，然后在修改application.yml文件中的数据库连接信息
3.2.2 使用脚本初始化数据库
首先，设置变量如下：
export HOSTNAME="localhost"
export PORT="3306"
export USERNAME="root"
export PASSWORD="123456"
然后执行：
sh apache-seatunnel-web-bin-2.3.3/script/init_sql.sh
如果环境变量有冲突需要改下名字和init_sql.sh中的环境变量的名字，可以加一个前缀可以加上前缀`STWEB_ ，然后把init_sql.sh中上面的那几个环境变量也加上这个前缀即可，然后执行初始化命令
3.3 修改端口与数据源

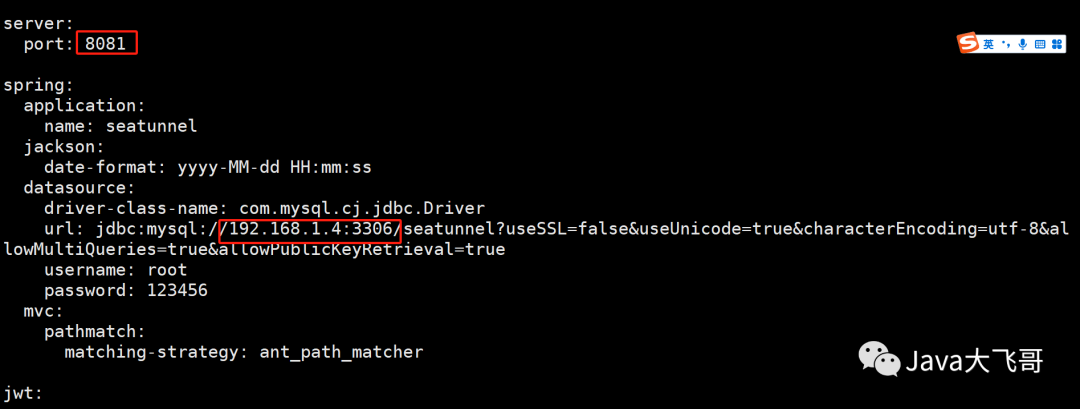

vim conf/application.yml修改端口号和数据源信息
![file]()
3.4 两个文件拷贝配置
需要将apache-seatunnel-2.3.3/config/hazelcast-client和apache-seatunnel-2.3.3/connectors/plugin-mapping.properties文件拷贝到apache-seatunnel-web-bin-2.3.3的conf下。
3.5 拷贝jar到lib下
![file]()
3.6 启动
sh bin/seatunnel-backend-daemon.sh start

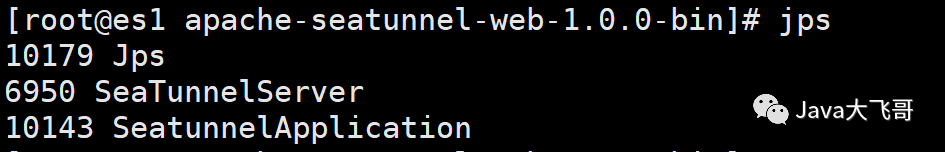

jps查看java进程如下：
![file]()
这里有个很坑的地方就是，执行命令如果是进入bin路径执行，访问首页的时候就会有问题，访问首页就会报404的错
sh seatunnel-backend-daemon.sh start
访问首页报错如下：
![file]()

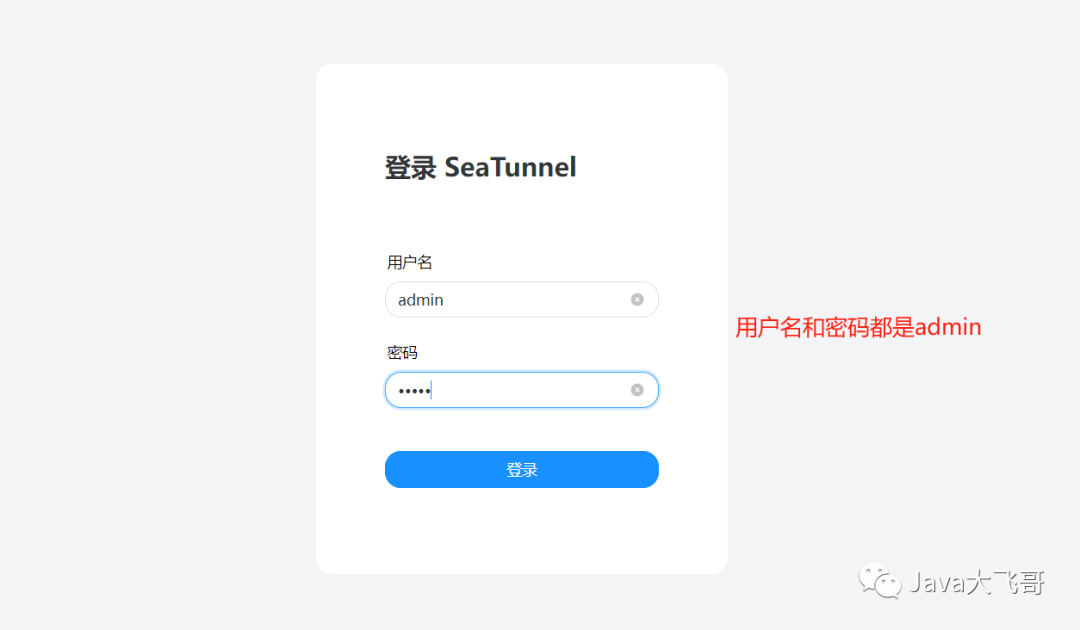

3.7 访问首页
访问ip:8081/ui，此端口为conf/application.yml中配置的端口
http://192.168.1.4:8081/
![file]()
登录不上有可能是没有启动mysql数据库
service mysqld start #使用service启动mysql服务
service mysqld status #查看MYSQL运行状态
service mysqld stop #使用service停止mysql服务
service mysqld restart #使用service重启mysql服务
systemctl enable mysqld.service #设置MySQL服务开机自动启动
systemctl is-enabled mysqld.service #确认MySQL服务已经被设置为自动启动
![file]()

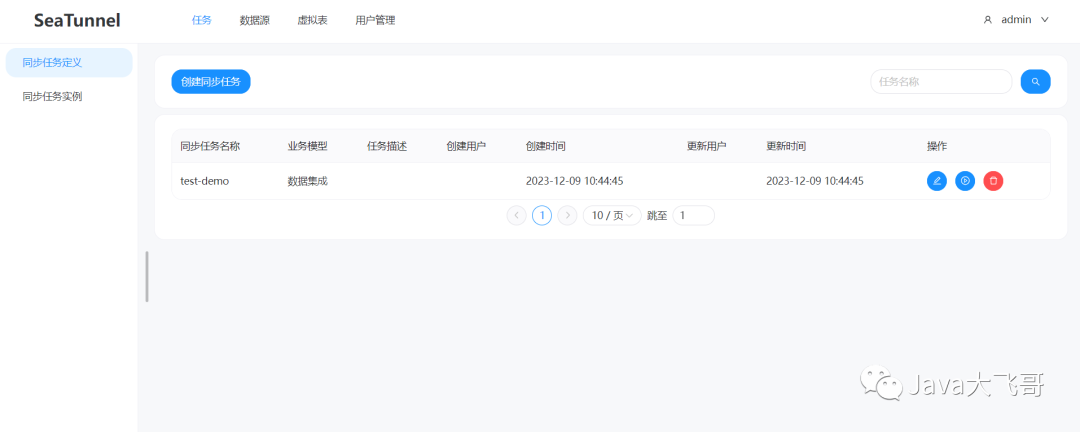

3.8 执行myslq-jdbc-->mysl-jdbc的单表数据同步
执行是成功的，但是在我的CentOs7.x的虚拟机上我是没有安装hadoop3.1.3的环境，执行看日志是没有报错的，官方说是这个hadoop的环境不是必须的也是有道理的，但是之前的文章在本地调试的时候没有hadoop环境会报错，所以建议需要本地编译构建的小伙伴还是安装一个hadoop，以免执行任务报错。
4. 总结
本次分享就到此结束了，踩了一些坑，还是请教了官方的大佬才知道的是哪里有问题，希望我的分享对你有所帮助，请一键三连，么么么哒！
