长文图解七种负载均衡策略

2022-02-07 481

欢迎大家关注公众号「JAVA前线」查看更多精彩分享文章，主要包括源码分析、实际应用、架构思维、职场分享、产品思考等等，同时欢迎大家加我个人微信「java_front」一起交流学习

1 三组概念

负载均衡、集群容错、服务降级这三个概念在DUBBO中非常重要，同理其它分布式框架也都有相同或者相近之概念。

从调用顺序角度分析，调用顺序依次是负载均衡、集群容错、服务降级。从解决问题角度分析，负载均衡解决了「选哪一个」问题，集群容错解决了「换哪一个」问题，服务降级解决了「全错怎么办」问题。

假设有1个服务消费者面对10个提供者，这时面临第一个问题就是「选哪一个」进行调用，所以负载均衡最先调用，假设选定了5号服务提供者进行服务调用。

假设消费者调用5号提供者发生了超时异常，这时面临第二个问题就是「换哪一个」进行调用：5号超时要不要换1号试一试，或者直接返回不进行重试，所以集群容错第二个调用。

假设已经重试了1号、3号、6号提供者全部超时，这时面临「全错怎么办」这第三个问题，这时可以直接返回一个固定值或者提示文案，所以服务降级第三个调用。

负载均衡作为整个链路第一个节点非常重要，本文结合DUBBO源码分析以下七种负载均衡策略：

简单随机
加权随机
简单轮询
简单加权轮询
平滑加权轮询
一致性哈希
最少活跃数

2 简单随机

简单随机含义是服务消费者每次会任意访问一个服务提供者，并且从概率角度看每个提供者被访问概率一致，可以通过指定范围随机数实现。第一步编写服务器代码

public class MyServer {

    private String ip;

    public MyServer(String ip) {
        this.ip = ip;
    }

    public String getIp() {
        return ip;
    }

    public void setIp(String ip) {
        this.ip = ip;
    }
}

第二步编写基础负载均衡策略

public abstract class AbstractLoadBalance {

    public MyServer select(List<MyServer> serverList) {
        return doSelect(serverList);
    }

    public abstract MyServer doSelect(List<MyServer> serverList);
}

第三步编写简单随机策略

public class RandomBalance extends AbstractLoadBalance {

    @Override
    public MyServer doSelect(List<MyServer> serverList) {
        // 随机数范围[0,serverListSize)
        int index = ThreadLocalRandom.current().nextInt(serverList.size());
        return serverList.get(index);
    }
}

第四步编写测试代码

public class LoadBalanceTest {

    public static void main(String[] args) {
        List<MyServer> serverList = buildData();
        testRandomBalance(serverList);
    }

    public static void testRandomBalance(List<MyServer> serverList) {
        AbstractLoadBalance randomBalance = new RandomBalance();
        for (int i = 0; i < 10; i++) {
            MyServer server = randomBalance.select(serverList);
            System.out.println("RandomBalance route server=" + server);
        }
    }

    public static List<MyServer> buildData() {
        List<MyServer> serverList = new ArrayList<MyServer>();
        MyServer server1 = new MyServer("192.1.1.1");
        MyServer server2 = new MyServer("192.1.1.2");
        MyServer server3 = new MyServer("192.1.1.3");
        serverList.add(server1);
        serverList.add(server2);
        serverList.add(server3);
        return serverList;
    }
}

第五步输出结果，循环次数越多结果越准确

RandomBalance route server=MyServer(ip=192.1.1.2)
RandomBalance route server=MyServer(ip=192.1.1.1)
RandomBalance route server=MyServer(ip=192.1.1.3)
RandomBalance route server=MyServer(ip=192.1.1.2)
RandomBalance route server=MyServer(ip=192.1.1.1)
RandomBalance route server=MyServer(ip=192.1.1.1)
RandomBalance route server=MyServer(ip=192.1.1.2)
RandomBalance route server=MyServer(ip=192.1.1.2)
RandomBalance route server=MyServer(ip=192.1.1.3)
RandomBalance route server=MyServer(ip=192.1.1.3)

3 加权随机

3.1 设计思路

加权随机新增了权重概念，假设服务器A权重等于1，服务器B权重等于5，从概率角度看B服务器被访问概率5倍于A服务器。实现按照权重访问有很多种方式，我们选择使用概率区间这个思路。

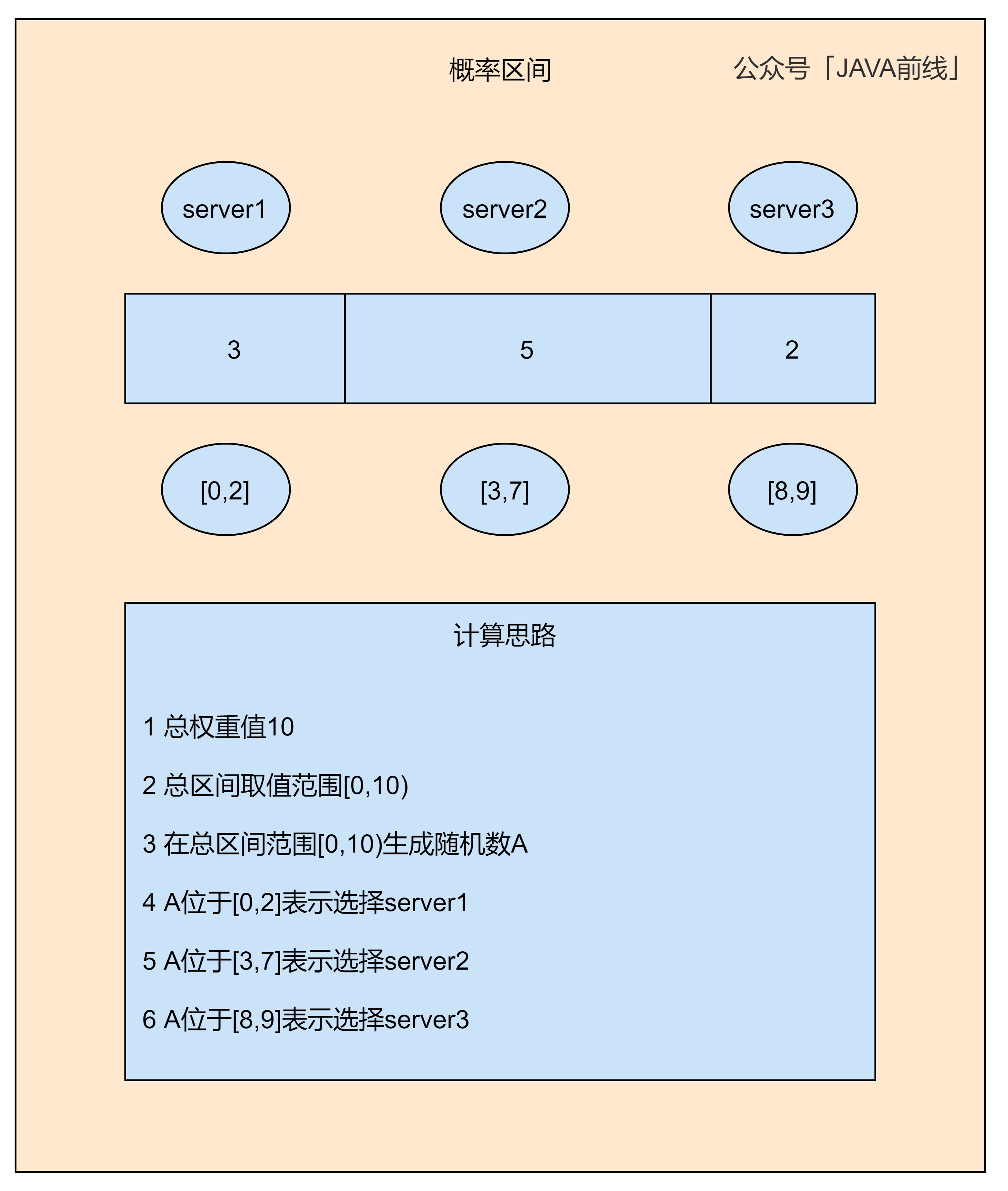

假设现在有三台服务器，服务器权重分别是3、5、2，那么三者构成如下图概率区间：

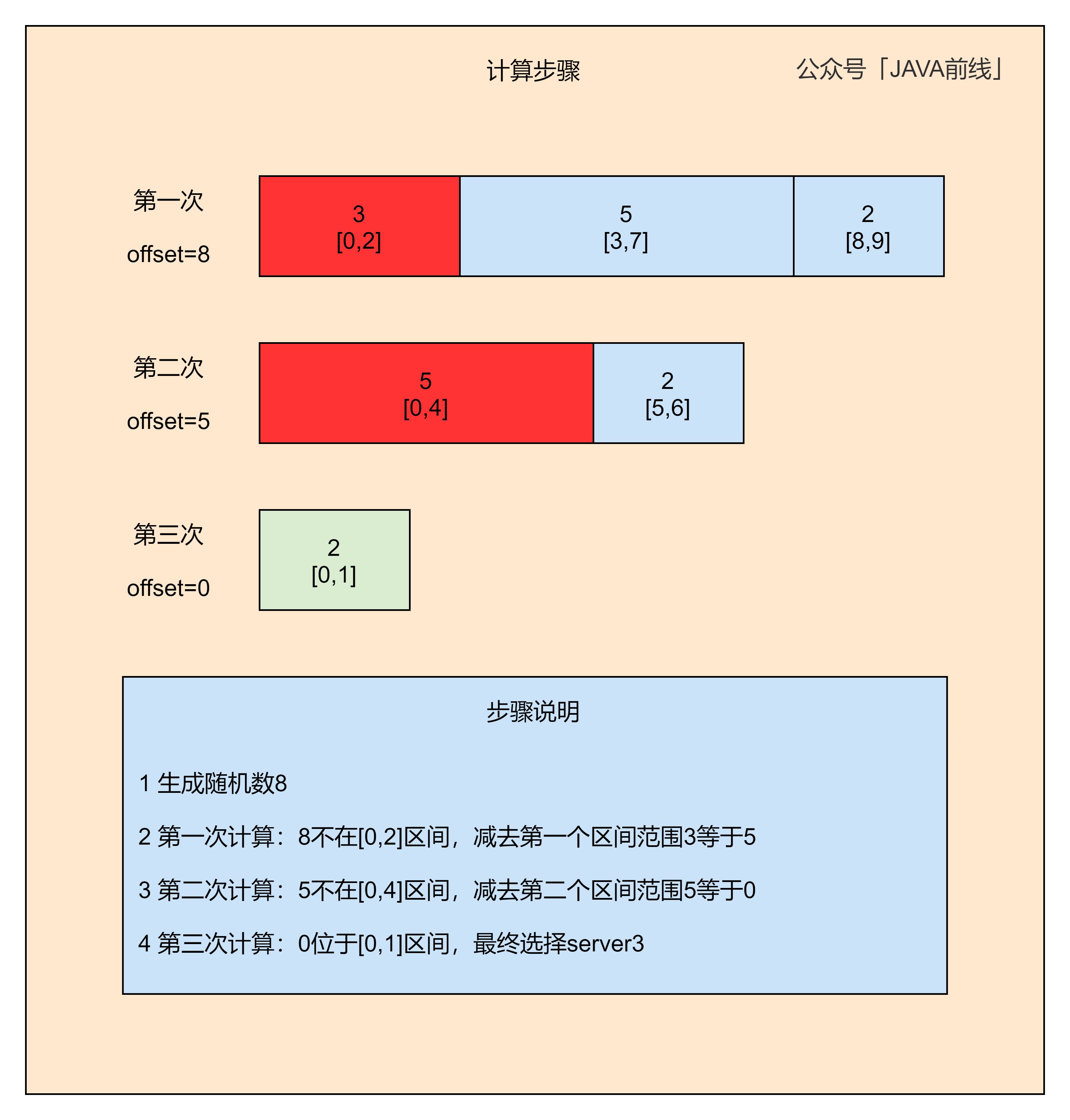

假设随机数等于8，其位于[8,9]区间，所以选择server3，下图说明了概率区间计算步骤：

3.2 代码实例

第一步编写服务器代码

public class MyServer {

    private String ip;

    private int weight;

    public MyServer(String ip) {
        this.ip = ip;
    }

    public String getIp() {
        return ip;
    }

    public void setIp(String ip) {
        this.ip = ip;
    }

    public int getWeight() {
        return weight;
    }

    public void setWeight(int weight) {
        this.weight = weight;
    }
}

第二步编写加权随机策略

public class RandomWeightBalance extends AbstractLoadBalance {

    @Override
    public MyServer doSelect(List<MyServer> serverList) {
        // 所有服务器总权重
        int totalWeight = 0;
        // 第一个服务器权重
        int firstWeight = serverList.get(0).getWeight();
        // 所有服务器权重相等
        boolean sameWeight = true;
        // 遍历所有服务器
        for (MyServer server : serverList) {
            // 计算总权重
            totalWeight += server.getWeight();
            // 任意一个invoker权重不等于第一个权重则设置sameWeight=false
            if (sameWeight && server.getWeight() != firstWeight) {
                sameWeight = false;
            }
        }
        // 权重不相等则根据权重选择
        if (!sameWeight) {
            // 在总区间范围[0,totalWeight)生成随机数A
            Integer offset = ThreadLocalRandom.current().nextInt(totalWeight);
            // 遍历所有服务器区间
            for (MyServer server : serverList) {
                // 如果A在server区间直接返回
                if (offset < server.getWeight()) {
                    return server;
                }
                // 如果A不在server区间则减去此区间范围并继续匹配其它区间
                offset -= server.getWeight();
            }
        }
        // 所有服务器权重相等则随机选择
        return serverList.get(ThreadLocalRandom.current().nextInt(serverList.size()));
    }
}

第三步编写测试代码

public class LoadBalanceTest {

    public static void main(String[] args) {
        List<MyServer> serverList = buildData();
        testRandomWeightBalance(serverList);
    }

    public static void testRandomWeightBalance(List<MyServer> serverList) {
        AbstractLoadBalance randomBalance = new RandomWeightBalance();
        for (int i = 0; i < 10; i++) {
            MyServer server = randomBalance.select(serverList);
            System.out.println("RandomWeightBalance route server=" + server);
        }
    }

    public static List<MyServer> buildData() {
        List<MyServer> serverList = new ArrayList<MyServer>();
        MyServer server1 = new MyServer("192.1.1.1", 3);
        MyServer server2 = new MyServer("192.1.1.2", 5);
        MyServer server3 = new MyServer("192.1.1.3", 2);
        serverList.add(server1);
        serverList.add(server2);
        serverList.add(server3);
        return serverList;
    }
}

第四步输出结果，循环次数越多结果越准确

RandomWeightBalance route server=MyServer(ip=192.1.1.2, weight=2)
RandomWeightBalance route server=MyServer(ip=192.1.1.2, weight=3)
RandomWeightBalance route server=MyServer(ip=192.1.1.1, weight=3)
RandomWeightBalance route server=MyServer(ip=192.1.1.1, weight=3)
RandomWeightBalance route server=MyServer(ip=192.1.1.3, weight=2)
RandomWeightBalance route server=MyServer(ip=192.1.1.3, weight=2)
RandomWeightBalance route server=MyServer(ip=192.1.1.2, weight=5)
RandomWeightBalance route server=MyServer(ip=192.1.1.1, weight=3)
RandomWeightBalance route server=MyServer(ip=192.1.1.2, weight=5)
RandomWeightBalance route server=MyServer(ip=192.1.1.2, weight=5)

3.3 DUBBO源码

public class RandomLoadBalance extends AbstractLoadBalance {
    public static final String NAME = "random";

    @Override
    protected <T> Invoker<T> doSelect(List<Invoker<T>> invokers, URL url, Invocation invocation) {

        // invoker数量
        int length = invokers.size();

        // 所有权重是否相等
        boolean sameWeight = true;

        // 权重数组
        int[] weights = new int[length];

        // 第一个权重
        int firstWeight = getWeight(invokers.get(0), invocation);
        weights[0] = firstWeight;

        // 权重之和
        int totalWeight = firstWeight;

        // 遍历所有invoker
        for (int i = 1; i < length; i++) {

            // 获取权重
            int weight = getWeight(invokers.get(i), invocation);
            weights[i] = weight;

            // 计算总权重
            totalWeight += weight;

            // 任意一个invoker权重不等于第一个权重则设置sameWeight=false
            if (sameWeight && weight != firstWeight) {
                sameWeight = false;
            }
        }
        // 权重不相等则根据权重选择
        if (totalWeight > 0 && !sameWeight) {
            int offset = ThreadLocalRandom.current().nextInt(totalWeight);
            for (int i = 0; i < length; i++) {
                offset -= weights[i];
                if (offset < 0) {
                    return invokers.get(i);
                }
            }
        }
        // 所有服务权重相等则随机选择
        return invokers.get(ThreadLocalRandom.current().nextInt(length));
    }
}

4 简单轮询

简单轮询含义是服务消费者每次会依次访问一个服务提供者，并且从概率角度看每个提供者被访问概率一致，可以通过原子变量累加实现。第一步编写简单轮询策略

public class RoundRobinBalance extends AbstractLoadBalance {
    private AtomicInteger atomicIndex = new AtomicInteger(0);

    @Override
    public MyServer doSelect(List<MyServer> serverList) {
        // atomicIndex自增大于服务器数量时取余
        int index = atomicIndex.getAndIncrement() % serverList.size();
        return serverList.get(index);
    }
}

第二步编写测试代码

public class LoadBalanceTest {

    public static void main(String[] args) {
        List<MyServer> serverList = buildData();
        testRoundRobinBalance(serverList);
    }

    public static void testRoundRobinBalance(List<MyServer> serverList) {
        AbstractLoadBalance roundRobinBalance = new RoundRobinBalance();
        for (int i = 0; i < 10; i++) {
            MyServer server = roundRobinBalance.select(serverList);
            System.out.println("RoundRobinBalance route server=" + server);
        }
    }

    public static List<MyServer> buildData() {
        List<MyServer> serverList = new ArrayList<MyServer>();
        MyServer server1 = new MyServer("192.1.1.1");
        MyServer server2 = new MyServer("192.1.1.2");
        MyServer server3 = new MyServer("192.1.1.3");
        serverList.add(server1);
        serverList.add(server2);
        serverList.add(server3);
        return serverList;
    }
}

第三步输出结果

RoundRobinBalance route server=MyServer(ip=192.1.1.1)
RoundRobinBalance route server=MyServer(ip=192.1.1.2)
RoundRobinBalance route server=MyServer(ip=192.1.1.3)
RoundRobinBalance route server=MyServer(ip=192.1.1.1)
RoundRobinBalance route server=MyServer(ip=192.1.1.2)
RoundRobinBalance route server=MyServer(ip=192.1.1.3)
RoundRobinBalance route server=MyServer(ip=192.1.1.1)
RoundRobinBalance route server=MyServer(ip=192.1.1.2)
RoundRobinBalance route server=MyServer(ip=192.1.1.3)
RoundRobinBalance route server=MyServer(ip=192.1.1.1)

5 简单加权轮询

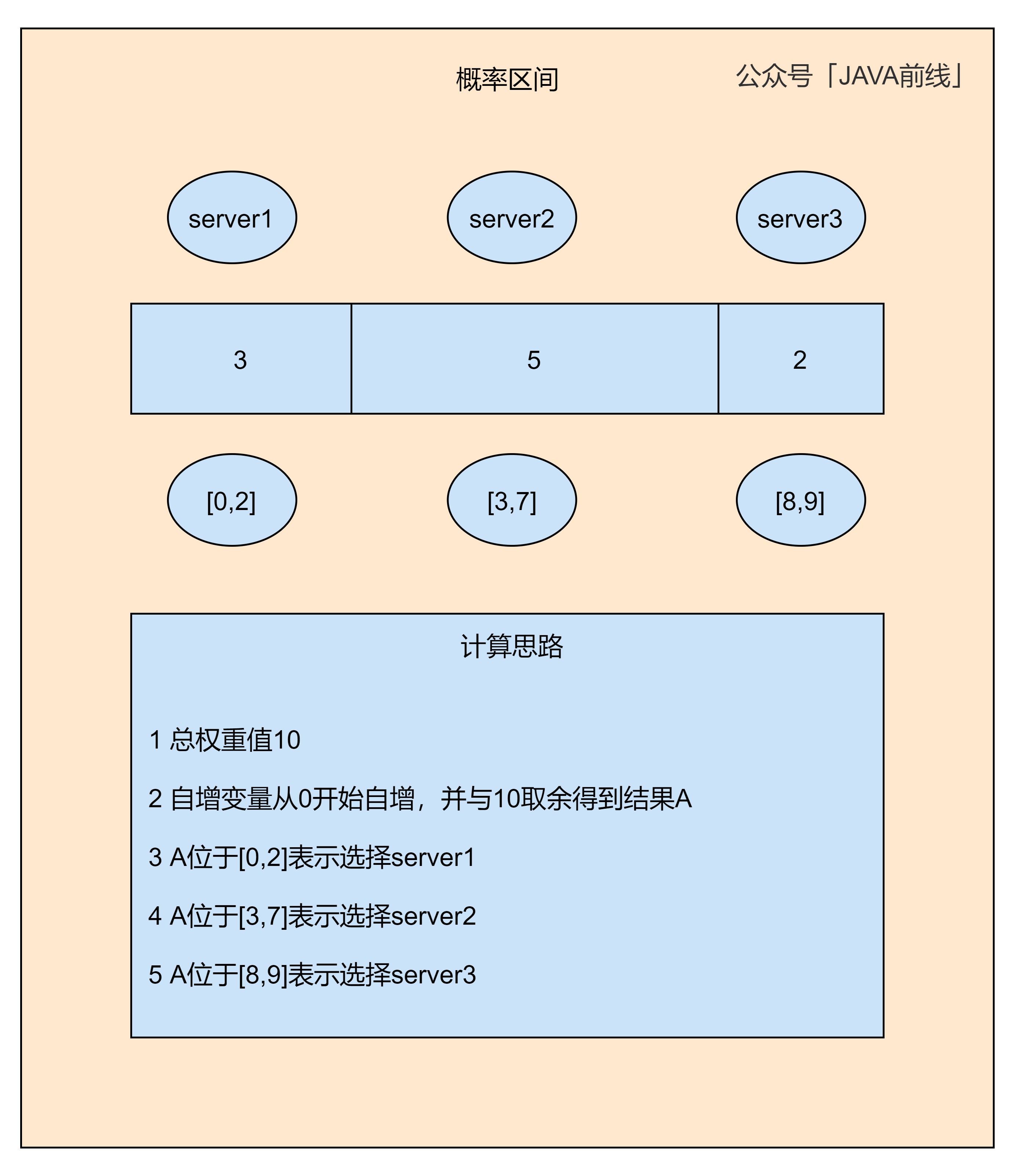

简单加权轮询新增了权重概念，假设服务器A权重等于1，服务器B权重等于5，从概率角度看B服务器被访问概率5倍于A服务器，我们还是使用概率区间这个思路，相较于加权随机会有一些变化。

第一步编写简单加权轮询策略

public class RoundRobinWeightBalance1 extends AbstractLoadBalance {
    private AtomicInteger atomicIndex = new AtomicInteger(0);

    @Override
    public MyServer doSelect(List<MyServer> serverList) {
        int totalWeight = 0;
        int firstWeight = serverList.get(0).getWeight();
        boolean sameWeight = true;
        for (MyServer server : serverList) {
            totalWeight += server.getWeight();
            if (sameWeight && server.getWeight() != firstWeight) {
                sameWeight = false;
            }
        }
        if (!sameWeight) {
            // 自增方式计算offset
            int offset = atomicIndex.getAndIncrement() % totalWeight;
            for (MyServer server : serverList) {
                if (offset < server.getWeight()) {
                    return server;
                }
                offset -= server.getWeight();
            }
        }
        int index = atomicIndex.getAndIncrement() % serverList.size();
        return serverList.get(index);
    }
}

第二步编写测试代码

public class LoadBalanceTest {

    public static void main(String[] args) {
        List<MyServer> serverList = buildData();
        testRoundRobinWeightBalance1(serverList);
    }

    public static void testRoundRobinWeightBalance1(List<MyServer> serverList) {
        AbstractLoadBalance roundRobinBalance = new RoundRobinWeightBalance1();
        for (int i = 0; i < 10; i++) {
            MyServer server = roundRobinBalance.select(serverList);
            System.out.println("RoundRobinWeightBalance1 route server=" + server);
        }
    }

    public static List<MyServer> buildData() {
        List<MyServer> serverList = new ArrayList<MyServer>();
        MyServer server1 = new MyServer("192.1.1.1", 3);
        MyServer server2 = new MyServer("192.1.1.2", 5);
        MyServer server3 = new MyServer("192.1.1.3", 2);
        serverList.add(server1);
        serverList.add(server2);
        serverList.add(server3);
        return serverList;
    }
}

第三步输出结果

RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.1, weight=3)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.1, weight=3)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.1, weight=3)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.2, weight=5)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.2, weight=5)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.2, weight=5)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.2, weight=5)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.2, weight=5)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.3, weight=2)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.3, weight=2)

6 平滑加权轮询

6.1 设计思路

简单加权轮询有什么问题？我们分析其输出结果发现，连续3次访问服务器1，连续5次访问服务器2，连续2次访问服务器3，所以简单加权轮询策略会导致请求集中问题。

RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.1, weight=3)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.1, weight=3)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.1, weight=3)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.2, weight=5)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.2, weight=5)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.2, weight=5)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.2, weight=5)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.2, weight=5)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.3, weight=2)
RoundRobinWeightBalance1 route server=MyServer(ip=192.1.1.3, weight=2)

所以需要使用平滑加权轮询策略，将请求比较均匀地分散至各个服务器，下图说明了计算步骤：

6.2 代码实例

第一步编写服务器代码

public class MyServer {

    private String ip;

    private int weight;

    private int currentWeight = 0;

    public MyServer(String ip) {
        this.ip = ip;
    }

    public MyServer(String ip, int weight) {
        this.ip = ip;
        this.weight = weight;
    }

    public int getWeight() {
        return weight;
    }

    public void setWeight(int weight) {
        this.weight = weight;
    }

    public int getCurrentWeight() {
        return currentWeight;
    }

    public void setCurrentWeight(int currentWeight) {
        this.currentWeight = currentWeight;
    }

    public String getIp() {
        return ip;
    }

    public void setIp(String ip) {
        this.ip = ip;
    }
}

第二步编写平滑加权轮询策略

public class RoundRobinWeightBalance2 extends AbstractLoadBalance {
    private AtomicInteger atomicIndex = new AtomicInteger(0);

    @Override
    public MyServer doSelect(List<MyServer> serverList) {
        int totalWeight = 0;
        int firstWeight = serverList.get(0).getWeight();
        boolean sameWeight = true;
        for (MyServer server : serverList) {
            totalWeight += server.getWeight();
            if (sameWeight && server.getWeight() != firstWeight) {
                sameWeight = false;
            }
            // 设置动态权重 -> currentWeight += weight
            server.setCurrentWeight(server.getCurrentWeight() + server.getWeight());
        }
        if (!sameWeight) {
            // 最大动态权重服务器 -> max(currentWeight)
            MyServer maxCurrentWeightServer = serverList.stream().max((s1, s2) -> s1.getCurrentWeight() - s2.getCurrentWeight()).get();
            // 设置最大动态权重 -> max(currentWeight) - totalWeight
            maxCurrentWeightServer.setCurrentWeight(maxCurrentWeightServer.getCurrentWeight() - totalWeight);
            // 返回最大动态权重服务器
            return maxCurrentWeightServer;
        }
        // 权重相同依次轮询
        int index = atomicIndex.getAndIncrement() % serverList.size();
        return serverList.get(index);
    }
}

第三步编写测试代码

public class LoadBalanceTest {

    public static void main(String[] args) {
        List<MyServer> serverList = buildData();
        testRoundRobinWeightBalance2(serverList);
    }

    public static void testRoundRobinWeightBalance2(List<MyServer> serverList) {
        AbstractLoadBalance roundRobinBalance = new RoundRobinWeightBalance2();
        for (int i = 0; i < 10; i++) {
            MyServer server = roundRobinBalance.select(serverList);
            System.out.println("RoundRobinWeightBalance2 route server=" + server);
        }
    }

    public static List<MyServer> buildData() {
        List<MyServer> serverList = new ArrayList<MyServer>();
        MyServer server1 = new MyServer("192.1.1.1", 3);
        MyServer server2 = new MyServer("192.1.1.2", 5);
        MyServer server3 = new MyServer("192.1.1.3", 2);
        serverList.add(server1);
        serverList.add(server2);
        serverList.add(server3);
        return serverList;
    }
}

第四步输出结果

RoundRobinWeightBalance2 route server=MyServer(ip=192.1.1.2, weight=5, currentWeight=-5)
RoundRobinWeightBalance2 route server=MyServer(ip=192.1.1.1, weight=3, currentWeight=-4)
RoundRobinWeightBalance2 route server=MyServer(ip=192.1.1.3, weight=2, currentWeight=-4)
RoundRobinWeightBalance2 route server=MyServer(ip=192.1.1.2, weight=5, currentWeight=0)
RoundRobinWeightBalance2 route server=MyServer(ip=192.1.1.1, weight=3, currentWeight=-5)
RoundRobinWeightBalance2 route server=MyServer(ip=192.1.1.2, weight=5, currentWeight=0)
RoundRobinWeightBalance2 route server=MyServer(ip=192.1.1.2, weight=5, currentWeight=-5)
RoundRobinWeightBalance2 route server=MyServer(ip=192.1.1.3, weight=2, currentWeight=-4)
RoundRobinWeightBalance2 route server=MyServer(ip=192.1.1.1, weight=3, currentWeight=-3)
RoundRobinWeightBalance2 route server=MyServer(ip=192.1.1.2, weight=5, currentWeight=0)

6.3 DUBBO源码

public class RoundRobinLoadBalance extends AbstractLoadBalance {
    public static final String NAME = "roundrobin";

    private static int RECYCLE_PERIOD = 60000;

    protected static class WeightedRoundRobin {

        // 权重
        private int weight;

        // 动态权重
        private AtomicLong current = new AtomicLong(0);

        // 更新时间
        private long lastUpdate;

        public int getWeight() {
            return weight;
        }

        public void setWeight(int weight) {
            this.weight = weight;
            current.set(0);
        }

        public long increaseCurrent() {
            return current.addAndGet(weight);
        }

        public void sel(int total) {
            current.addAndGet(-1 * total);
        }

        public long getLastUpdate() {
            return lastUpdate;
        }

        public void setLastUpdate(long lastUpdate) {
            this.lastUpdate = lastUpdate;
        }
    }

    private ConcurrentMap<String, ConcurrentMap<String, WeightedRoundRobin>> methodWeightMap = new ConcurrentHashMap<String, ConcurrentMap<String, WeightedRoundRobin>>();
    private AtomicBoolean updateLock = new AtomicBoolean();

    protected <T> Collection<String> getInvokerAddrList(List<Invoker<T>> invokers, Invocation invocation) {
        String key = invokers.get(0).getUrl().getServiceKey() + "." + invocation.getMethodName();
        Map<String, WeightedRoundRobin> map = methodWeightMap.get(key);
        if (map != null) {
            return map.keySet();
        }
        return null;
    }

    @Override
    protected <T> Invoker<T> doSelect(List<Invoker<T>> invokers, URL url, Invocation invocation) {
        String key = invokers.get(0).getUrl().getServiceKey() + "." + invocation.getMethodName();
        ConcurrentMap<String, WeightedRoundRobin> map = methodWeightMap.get(key);
        if (map == null) {
            methodWeightMap.putIfAbsent(key, new ConcurrentHashMap<String, WeightedRoundRobin>());
            map = methodWeightMap.get(key);
        }
        // 总权重
        int totalWeight = 0;

        // 最大当前权重
        long maxCurrent = Long.MIN_VALUE;

        // 当前时间
        long now = System.currentTimeMillis();

        // 选中提供者
        Invoker<T> selectedInvoker = null;

        // 选中提供者权重对象
        WeightedRoundRobin selectedWRR = null;

        // 遍历所有提供者
        for (Invoker<T> invoker : invokers) {
            String identifyString = invoker.getUrl().toIdentityString();
            WeightedRoundRobin weightedRoundRobin = map.get(identifyString);

            // 获取权重
            int weight = getWeight(invoker, invocation);
            if (weightedRoundRobin == null) {
                weightedRoundRobin = new WeightedRoundRobin();
                weightedRoundRobin.setWeight(weight);
                map.putIfAbsent(identifyString, weightedRoundRobin);
            }
            if (weight != weightedRoundRobin.getWeight()) {
                weightedRoundRobin.setWeight(weight);
            }
            // 选择动态权重最大提供者
            long cur = weightedRoundRobin.increaseCurrent();
            weightedRoundRobin.setLastUpdate(now);
            if (cur > maxCurrent) {
                maxCurrent = cur;
                selectedInvoker = invoker;
                selectedWRR = weightedRoundRobin;
            }
            // 计算总权重
            totalWeight += weight;
        }
        // 更新负载均衡容器
        if (!updateLock.get() && invokers.size() != map.size()) {
            if (updateLock.compareAndSet(false, true)) {
                try {
                    ConcurrentMap<String, WeightedRoundRobin> newMap = new ConcurrentHashMap<String, WeightedRoundRobin>();
                    newMap.putAll(map);
                    Iterator<Entry<String, WeightedRoundRobin>> it = newMap.entrySet().iterator();
                    while (it.hasNext()) {
                        Entry<String, WeightedRoundRobin> item = it.next();
                        if (now - item.getValue().getLastUpdate() > RECYCLE_PERIOD) {
                            it.remove();
                        }
                    }
                    methodWeightMap.put(key, newMap);
                } finally {
                    updateLock.set(false);
                }
            }
        }
        if (selectedInvoker != null) {
            // 最大动态权重减去总权重
            selectedWRR.sel(totalWeight);
            return selectedInvoker;
        }
        return invokers.get(0);
    }
}

7 一致性哈希

一致性哈希策略具有三个显著特性：第一是在不新增或者删除提供者情况下，同一个客户端总是可以访问到同一个提供者。第二是一致性哈希可以有效分散新增或者删除服务提供者带来的波动性。第三是一致性哈希虚拟节点可以更加有效分散特性二之波动性。

7.1 特性分析

(1) 特性一

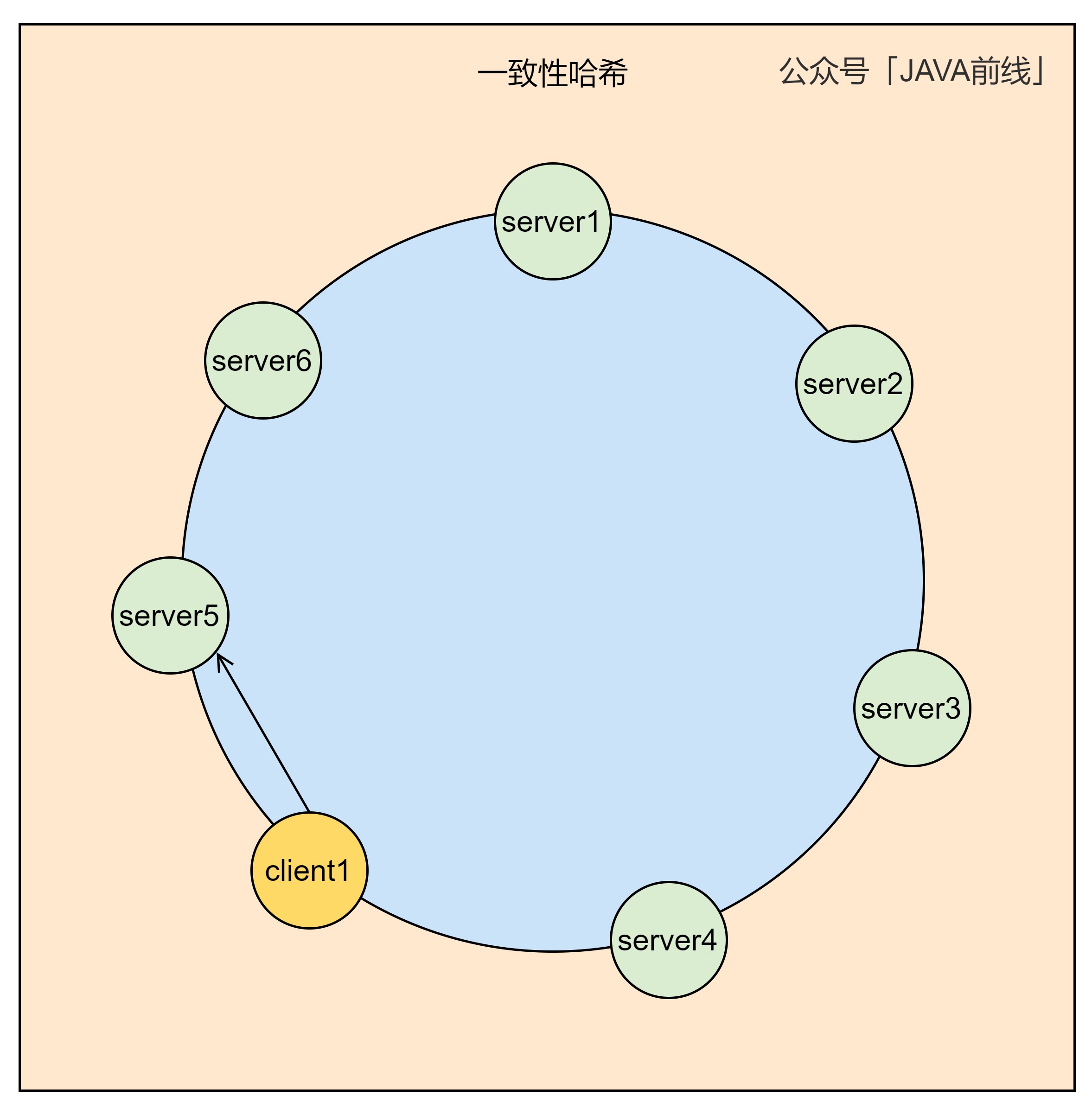

在不新增或者删除提供者情况下，同一个客户端总是可以访问同一个提供者。第一步6个提供者分布在哈希环中，第二步client1发起访问请求，此时计算客户端哈希值位于哈希环位置，第三步沿着哈希环顺时针旋转，找到与客户端哈希值最近的提供者server5。当哈希环结构不发生改变时，client1总是路由到server5。

哈希环应该选择什么数据结构呢？我们可以选择TreeMap构建哈希环，其底层使用了红黑树。

public class TreeMapTest {

    public static void main(String[] args) {

        // 构建哈希环
        TreeMap<Integer, MyServer> treeMap = new TreeMap<Integer, MyServer>();
        treeMap.put(1, new MyServer("1"));
        treeMap.put(2, new MyServer("2"));
        treeMap.put(3, new MyServer("3"));
        treeMap.put(4, new MyServer("4"));
        treeMap.put(5, new MyServer("5"));
        treeMap.put(6, new MyServer("6"));

        // 找到第一个大于客户端哈希值的服务器
        Integer clientHashCode = 5;
        SortedMap<Integer, MyServer> tailMap = treeMap.tailMap(clientHashCode, false);
        MyServer server = tailMap.get(tailMap.firstKey());

        // MyServer(ip=6)
        System.out.println(server);
    }
}

(2) 特性二

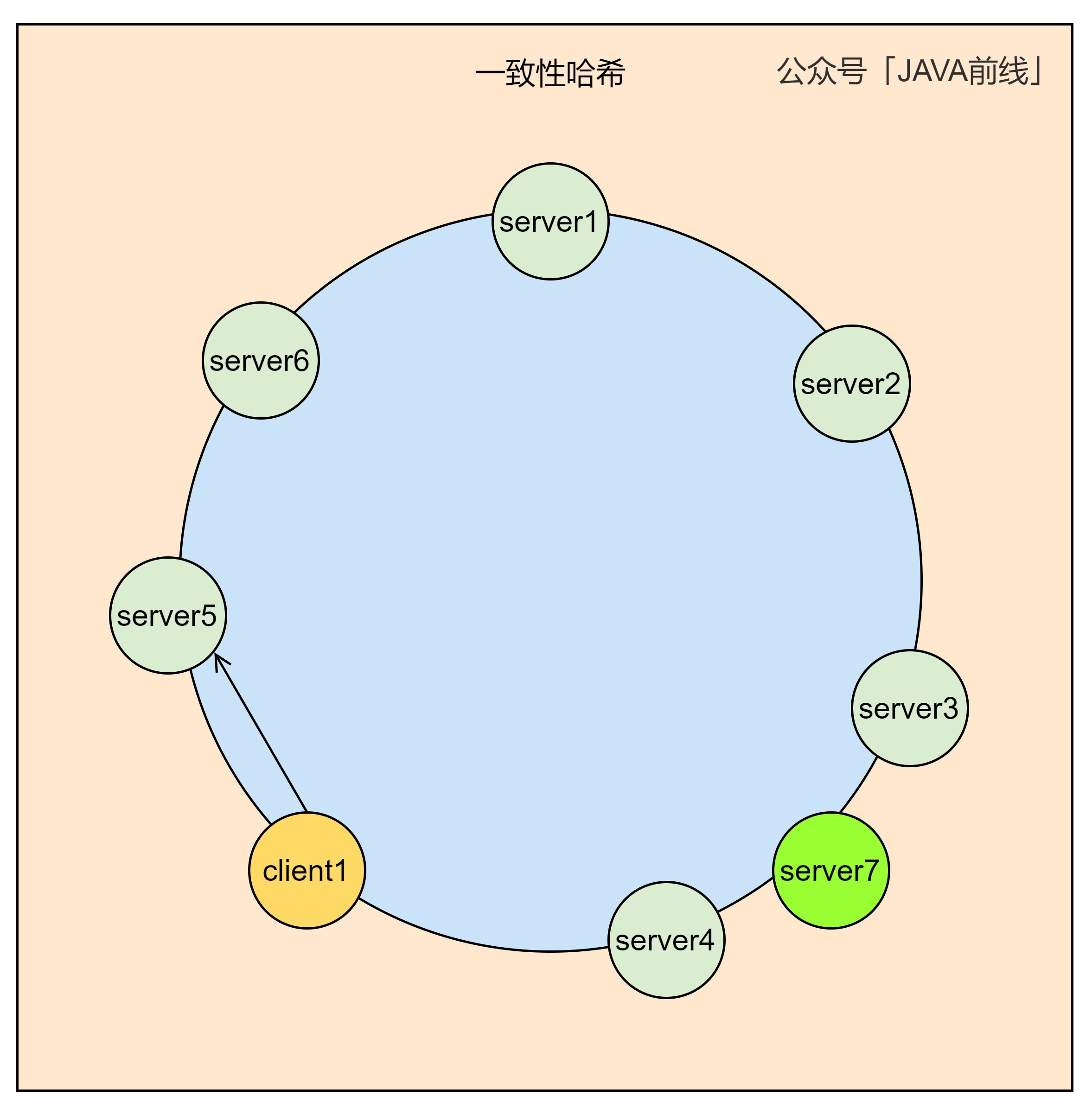

一致性哈希可以有效分散新增或者删除提供者带来的波动性，例如新增服务器server7，但是并不影响client1路由结果：

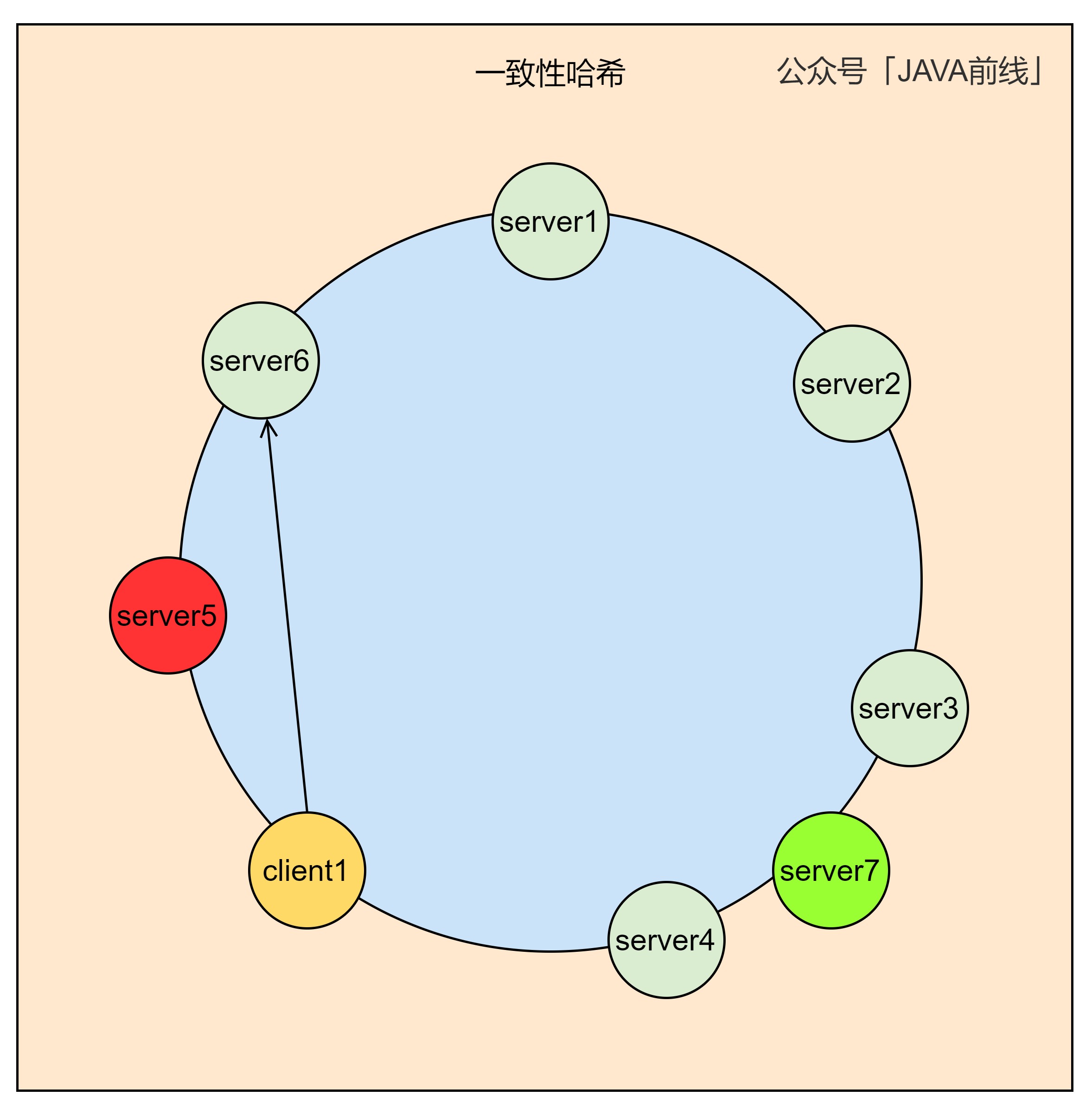

服务器server5发生宕机只会影响client1路由结果，并不会影响其它客户端路由结果：

(3) 特性三

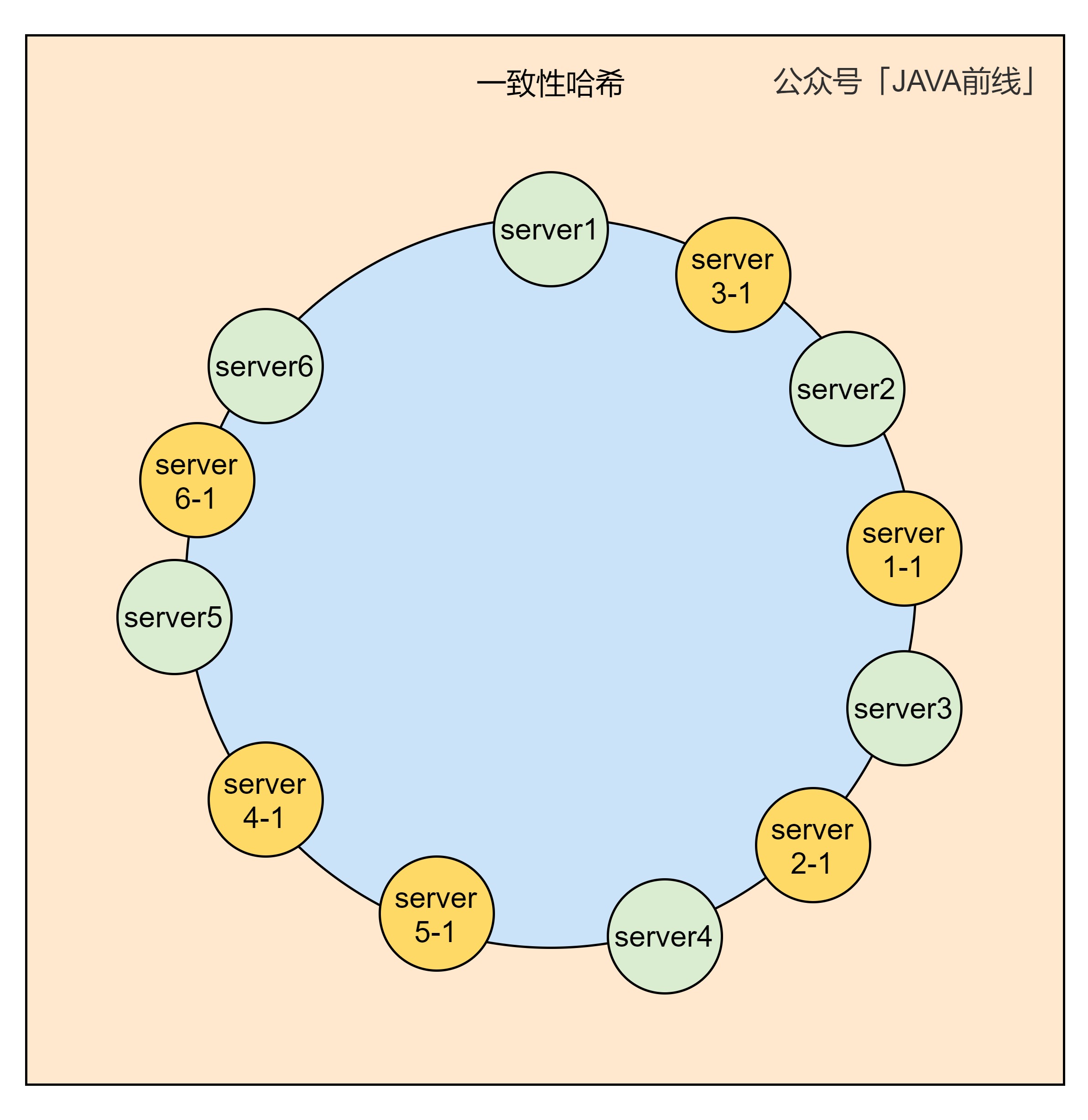

一致性哈希虚拟节点可以更加有效分散特性二之波动性，例如我们可以为每个服务器节点新增一个虚拟节点，使得服务器分散得更加均匀：

7.2 代码实例

第一步编写基础负载均衡策略

public abstract class AbstractConsistentHashLoadBalance {

    public MyServer select(String clientIP, List<MyServer> serverList) {
        return doSelect(clientIP, serverList);
    }

    public abstract MyServer doSelect(String clientIP, List<MyServer> serverList);
}

第二步编写一致性哈希策略

public class ConsistentHashBalance1 extends AbstractConsistentHashLoadBalance {
    private ConsistentHashSelector consistentHashSelector;

    @Override
    public MyServer doSelect(String clientIP, List<MyServer> serverList) {
        initialConsistentHashSelector(serverList);
        return consistentHashSelector.select(clientIP);
    }

    private class ConsistentHashSelector {
        private Integer identityHashCode;
        private TreeMap<Integer /* hashcode */, MyServer> serverNodes = new TreeMap<Integer, MyServer>();

        // 构建哈希环
        public ConsistentHashSelector(Integer identityHashCode, List<MyServer> serverList) {
            this.identityHashCode = identityHashCode;
            TreeMap<Integer, MyServer> newServerNodes = new TreeMap<Integer, MyServer>();
            for (MyServer server : serverList) {
                newServerNodes.put(hashCode(server.getIp()), server);
            }
            serverNodes = newServerNodes;
        }

        // 根据客户端IP路由
        public MyServer select(String clientIP) {

            // 计算客户端哈希值
            int clientHashCode = hashCode(clientIP);

            // 找到第一个大于客户端哈希值的服务器
            SortedMap<Integer, MyServer> tailMap = serverNodes.tailMap(clientHashCode, false);
            if (CollectionUtils.isEmpty(tailMap)) {
                Integer firstKey = serverNodes.firstKey();
                return serverNodes.get(firstKey);
            }

            // 找不到表示在最后一个节点和第一个节点之间 ->选择第一个节点
            Integer firstKey = tailMap.firstKey();
            return tailMap.get(firstKey);
        }

        // 计算哈希值
        private int hashCode(String key) {
            return Objects.hashCode(key);
        }

        // 提供者列表哈希值 -> 如果新增或者删除提供者会发生变化
        public Integer getIdentityHashCode() {
            return identityHashCode;
        }
    }

    private void initialConsistentHashSelector(List<MyServer> serverList) {

        // 计算提供者列表哈希值
        Integer newIdentityHashCode = System.identityHashCode(serverList);

        // 提供者列表哈希值没有变化则无需重新构建哈希环
        if (null != consistentHashSelector && (null != consistentHashSelector.getIdentityHashCode() && newIdentityHashCode == consistentHashSelector.getIdentityHashCode())) {
            return;
        }
        // 提供者列表哈希值发生变化则重新构建哈希环
        consistentHashSelector = new ConsistentHashSelector(newIdentityHashCode, serverList);
    }
}

第三步编写测试代码

public class LoadBalanceTest {

    public static void main(String[] args) {
        testConsistentHashBalance1();
    }

    public static void testConsistentHashBalance1() {
        List<MyServer> serverList = new ArrayList<MyServer>();
        MyServer server1 = new MyServer("1");
        MyServer server2 = new MyServer("2");
        MyServer server3 = new MyServer("3");
        MyServer server4 = new MyServer("4");
        MyServer server5 = new MyServer("5");
        MyServer server6 = new MyServer("6");
        serverList.add(server1);
        serverList.add(server2);
        serverList.add(server3);
        serverList.add(server4);
        serverList.add(server5);
        serverList.add(server6);
        AbstractConsistentHashLoadBalance consistentHashBalance = new ConsistentHashBalance1();
        for (int i = 0; i < 10; i++) {
            String clientIP = "5";
            MyServer server = consistentHashBalance.select(clientIP, serverList);
            System.out.println("clientIP=" + clientIP + ",consistentHashBalance1 route server=" + server);
        }
    }
}

第四步输出结果

clientIP=5,consistentHashBalance1 route server=MyServer(ip=6)
clientIP=5,consistentHashBalance1 route server=MyServer(ip=6)
clientIP=5,consistentHashBalance1 route server=MyServer(ip=6)
clientIP=5,consistentHashBalance1 route server=MyServer(ip=6)
clientIP=5,consistentHashBalance1 route server=MyServer(ip=6)
clientIP=5,consistentHashBalance1 route server=MyServer(ip=6)
clientIP=5,consistentHashBalance1 route server=MyServer(ip=6)
clientIP=5,consistentHashBalance1 route server=MyServer(ip=6)
clientIP=5,consistentHashBalance1 route server=MyServer(ip=6)
clientIP=5,consistentHashBalance1 route server=MyServer(ip=6)

如果新增虚拟节点参看以下代码

public class ConsistentHashBalance2 extends AbstractConsistentHashLoadBalance {
    private ConsistentHashSelector consistentHashSelector;

    @Override
    public MyServer doSelect(String clientIP, List<MyServer> serverList) {
        initialSelector(serverList);
        return consistentHashSelector.select(clientIP);
    }

    private class ConsistentHashSelector {
        private Integer identityHashCode;
        private Integer VIRTUAL_NODES_NUM = 16;
        private TreeMap<Integer /* hashcode */, MyServer> serverNodes = new TreeMap<Integer, MyServer>();

        public ConsistentHashSelector(Integer identityHashCode, List<MyServer> serverList) {
            this.identityHashCode = identityHashCode;
            TreeMap<Integer, MyServer> newServerNodes = new TreeMap<Integer, MyServer>();
            for (MyServer server : serverList) {
                // 虚拟节点
                for (int i = 0; i < VIRTUAL_NODES_NUM; i++) {
                    int virtualKey = hashCode(server.getIp() + "_" + i);
                    newServerNodes.put(virtualKey, server);
                }
            }
            serverNodes = newServerNodes;
        }

        public MyServer select(String clientIP) {
            int clientHashCode = hashCode(clientIP);
            SortedMap<Integer, MyServer> tailMap = serverNodes.tailMap(clientHashCode, false);
            if (CollectionUtils.isEmpty(tailMap)) {
                Integer firstKey = serverNodes.firstKey();
                return serverNodes.get(firstKey);
            }
            Integer firstKey = tailMap.firstKey();
            return tailMap.get(firstKey);
        }

        private int hashCode(String key) {
            return Objects.hashCode(key);
        }

        public Integer getIdentityHashCode() {
            return identityHashCode;
        }
    }

    private void initialSelector(List<MyServer> serverList) {
        Integer newIdentityHashCode = System.identityHashCode(serverList);
        if (null != consistentHashSelector && (null != consistentHashSelector.getIdentityHashCode() && newIdentityHashCode == consistentHashSelector.getIdentityHashCode())) {
            return;
        }
        consistentHashSelector = new ConsistentHashSelector(newIdentityHashCode, serverList);
    }
}

7.3 DUBBO源码

public class ConsistentHashLoadBalance extends AbstractLoadBalance {
    public static final String NAME = "consistenthash";
    private final ConcurrentMap<String, ConsistentHashSelector<?>> selectors = new ConcurrentHashMap<String, ConsistentHashSelector<?>>();

    @Override
    protected <T> Invoker<T> doSelect(List<Invoker<T>> invokers, URL url, Invocation invocation) {
        String methodName = RpcUtils.getMethodName(invocation);
        String key = invokers.get(0).getUrl().getServiceKey() + "." + methodName;
        int identityHashCode = System.identityHashCode(invokers);
        ConsistentHashSelector<T> selector = (ConsistentHashSelector<T>) selectors.get(key);

        // 提供者列表哈希值发生变化则重新构建哈希环
        if (selector == null || selector.identityHashCode != identityHashCode) {
            selectors.put(key, new ConsistentHashSelector<T>(invokers, methodName, identityHashCode));
            selector = (ConsistentHashSelector<T>) selectors.get(key);
        }
        return selector.select(invocation);
    }

    private static final class ConsistentHashSelector<T> {

        private final TreeMap<Long, Invoker<T>> virtualInvokers;

        private final int replicaNumber;

        private final int identityHashCode;

        private final int[] argumentIndex;

        // 构建哈希环
        ConsistentHashSelector(List<Invoker<T>> invokers, String methodName, int identityHashCode) {
            this.virtualInvokers = new TreeMap<Long, Invoker<T>>();
            this.identityHashCode = identityHashCode;
            URL url = invokers.get(0).getUrl();
            this.replicaNumber = url.getMethodParameter(methodName, "hash.nodes", 160);
            String[] index = Constants.COMMA_SPLIT_PATTERN.split(url.getMethodParameter(methodName, "hash.arguments", "0"));
            argumentIndex = new int[index.length];
            for (int i = 0; i < index.length; i++) {
                argumentIndex[i] = Integer.parseInt(index[i]);
            }
            for (Invoker<T> invoker : invokers) {
                String address = invoker.getUrl().getAddress();
                // 新增虚拟节点（默认160个）
                for (int i = 0; i < replicaNumber / 4; i++) {
                    byte[] digest = md5(address + i);
                    for (int h = 0; h < 4; h++) {
                        long m = hash(digest, h);
                        virtualInvokers.put(m, invoker);
                    }
                }
            }
        }

        // 负载均衡
        public Invoker<T> select(Invocation invocation) {
            String key = toKey(invocation.getArguments());
            byte[] digest = md5(key);
            return selectForKey(hash(digest, 0));
        }

        private String toKey(Object[] args) {
            StringBuilder buf = new StringBuilder();
            for (int i : argumentIndex) {
                if (i >= 0 && i < args.length) {
                    buf.append(args[i]);
                }
            }
            return buf.toString();
        }

        private Invoker<T> selectForKey(long hash) {
            Map.Entry<Long, Invoker<T>> entry = virtualInvokers.ceilingEntry(hash);
            if (entry == null) {
                entry = virtualInvokers.firstEntry();
            }
            return entry.getValue();
        }

        // 哈希运算
        private long hash(byte[] digest, int number) {
            return (((long) (digest[3 + number * 4] & 0xFF) << 24)
                    | ((long) (digest[2 + number * 4] & 0xFF) << 16)
                    | ((long) (digest[1 + number * 4] & 0xFF) << 8)
                    | (digest[number * 4] & 0xFF))
                   & 0xFFFFFFFFL;
        }

        private byte[] md5(String value) {
            MessageDigest md5;
            try {
                md5 = MessageDigest.getInstance("MD5");
            } catch (NoSuchAlgorithmException e) {
                throw new IllegalStateException(e.getMessage(), e);
            }
            md5.reset();
            byte[] bytes = value.getBytes(StandardCharsets.UTF_8);
            md5.update(bytes);
            return md5.digest();
        }
    }
}

8 最少活跃数

每个提供者维护并发处理的任务个数，任务个数越大活跃度越高。在服务消费者进行负载均衡时，第一查询提供者负载情况，第二选择活跃度最低的提供者，我们直接分析DUBBO源码：

public class LeastActiveLoadBalance extends AbstractLoadBalance {
    public static final String NAME = "leastactive";

    @Override
    protected <T> Invoker<T> doSelect(List<Invoker<T>> invokers, URL url, Invocation invocation) {

        // invoker数量
        int length = invokers.size();

        // 最小调用次数
        int leastActive = -1;

        // 调用次数等于最小次数invoker数量
        int leastCount = 0;

        // 调用次数等于最小调用次数invoker下标集合
        int[] leastIndexes = new int[length];

        // 每个服务提供者权重
        int[] weights = new int[length];

        // 总权重
        int totalWeight = 0;

        // 第一个调用者权重
        int firstWeight = 0;

        // 权重值是否相同
        boolean sameWeight = true;

        // 遍历invokers
        for (int i = 0; i < length; i++) {
            Invoker<T> invoker = invokers.get(i);

            // 调用次数
            int active = RpcStatus.getStatus(invoker.getUrl(), invocation.getMethodName()).getActive();

            // 获取权重
            int afterWarmup = getWeight(invoker, invocation);

            // 设置权重
            weights[i] = afterWarmup;

            // 第一个invoker或者调用次数小于最小调用次数
            if (leastActive == -1 || active < leastActive) {
                leastActive = active;
                leastCount = 1;
                leastIndexes[0] = i;
                totalWeight = afterWarmup;
                firstWeight = afterWarmup;
                sameWeight = true;
            }
            // 当前服务提供者调用次数等于最小调用次数
            else if (active == leastActive) {
                // 记录下标
                leastIndexes[leastCount++] = i;
                // 新增总权重值
                totalWeight += afterWarmup;
                // 权重值是否相同
                if (sameWeight && i > 0 && afterWarmup != firstWeight) {
                    sameWeight = false;
                }
            }
        }

        // 只有一个invoker调用次数等于最小调用次数直接返回
        if (leastCount == 1) {
            return invokers.get(leastIndexes[0]);
        }

        // 多个invoker调用次数等于最小调用次数并且权重值不相同->根据权重值选择
        if (!sameWeight && totalWeight > 0) {
            int offsetWeight = ThreadLocalRandom.current().nextInt(totalWeight);
            for (int i = 0; i < leastCount; i++) {
                int leastIndex = leastIndexes[i];
                offsetWeight -= weights[leastIndex];
                if (offsetWeight < 0) {
                    return invokers.get(leastIndex);
                }
            }
        }
        // 多个invoker调用次数等于最小调用次数并且权重值相同->随机选择
        return invokers.get(leastIndexes[ThreadLocalRandom.current().nextInt(leastCount)]);
    }
}

9 文章总结

第一本文首先分析了负载均衡、集群容错、服务降级这三组概念，第二结合代码分析了简单随机，加权随机，简单轮询，简单加权轮询，平滑加权轮询，一致性哈希，最少活跃数七种负载均衡策略，其中权重计算、平滑加权轮询，一致性哈希算法值得注意，希望本文对大家有所帮助。

欢迎大家关注公众号「JAVA前线」查看更多精彩分享文章，主要包括源码分析、实际应用、架构思维、职场分享、产品思考等等，同时欢迎大家加我个人微信「java_front」一起交流学习

微信关注我们

原文链接：https://my.oschina.net/u/4850089/blog/5433046

转载内容版权归作者及来源网站所有！

低调大师中文资讯倾力打造互联网数据资讯、行业资源、电子商务、移动互联网、网络营销平台。持续更新报道IT业界、互联网、市场资讯、驱动更新,是最及时权威的产业资讯及硬件资讯报道平台。

Apache Druid 在 Shopee 的工程实践

摘要 Apache Druid 是一款高性能的开源时序数据库，它适用于交互式体验的低延时查询分析场景。本文将主要分享 Apache Druid 在支撑 Shopee 相关核心业务 OLAP 实时分析方面的工程实践。随着 Shopee 业务不断发展，越来越多的相关核心业务愈加依赖基于 Druid 集群的 OLAP 实时分析服务，越来越严苛的应用场景使得我们开始遇到开源项目 Apache Druid 的各种性能瓶颈。我们通过分析研读核心源码，对出现性能瓶颈的元数据管理模块和缓存模块做了相关性能优化。同时，为了满足公司内部核心业务的定制化需求，我们开发了一些新特性，包括整型精确去重算子和灵活的滑动窗口函数。 1. Druid 集群在 Shopee 的应用当前集群部署方案是维护一个超大集群，基于物理机器部署，集群规模达 100+ 节点。Druid 集群作为相关核心业务数据项目的下游，可以通过批任务和流任务写入数据，然后相关业务方可以进行 OLAP 实时查询分析。 2. 技术优化方案分享 2.1 Coordinator 负载平衡算法效率优化 2.1.1 问题背景我们通过实时任务监控报警发...

2022-02-07

474

芋道 ruoyi-vue-pro v1.4.0 发布：重构成多 Maven Module 的代码结构

项目地址 https://gitee.com/zhijiantianya/ruoyi-vue-pro 项目介绍芋道，一套全部开源的企业级的快速开发平台，毫无保留给个人及企业免费使用。有任何问题，或者想要的功能，可以在 Issues 中提给艿艿。前端采用 vue-element-admin ，正在支持 Vue 3 + ElementUI Plus 最新方案。后端采用 Spring Boot、MySQL + MyBatis Plus、Redis + Redisson。权限认证使用 Spring Security & Token & Redis，支持多终端、多种用户的认证系统。支持加载动态权限菜单，按钮级别权限控制，本地缓存提升性能。工作流使用 Activiti ，支持动态表单、在线设计流程、多种任务分配方式。高效率开发，使用代码生成器可以一键生成前后端代码 + 单元测试 + Swagger 接口文档 + Validator 参数校验。集成微信小程序、微信公众号、企业微信、钉钉等三方登陆，集成支付宝、微信等支付与退款。集成阿里云、腾讯云、云片等短信渠道，集...

2022-02-07

763

发表评论

资源下载

更多资源

Mario

马里奥是站在游戏界顶峰的超人气多面角色。马里奥靠吃蘑菇成长，特征是大鼻子、头戴帽子、身穿背带裤，还留着胡子。与他的双胞胎兄弟路易基一起，长年担任任天堂的招牌角色。

Nacos

Nacos /nɑ:kəʊs/ 是 Dynamic Naming and Configuration Service 的首字母简称，一个易于构建 AI Agent 应用的动态服务发现、配置管理和AI智能体管理平台。Nacos 致力于帮助您发现、配置和管理微服务及AI智能体应用。Nacos 提供了一组简单易用的特性集，帮助您快速实现动态服务发现、服务配置、服务元数据、流量管理。Nacos 帮助您更敏捷和容易地构建、交付和管理微服务平台。

Spring

Spring框架（Spring Framework）是由Rod Johnson于2002年提出的开源Java企业级应用框架，旨在通过使用JavaBean替代传统EJB实现方式降低企业级编程开发的复杂性。该框架基于简单性、可测试性和松耦合性设计理念，提供核心容器、应用上下文、数据访问集成等模块，支持整合Hibernate、Struts等第三方框架，其适用范围不仅限于服务器端开发，绝大多数Java应用均可从中受益。

Sublime Text

Sublime Text具有漂亮的用户界面和强大的功能，例如代码缩略图，Python的插件，代码段等。还可自定义键绑定，菜单和工具栏。Sublime Text 的主要功能包括：拼写检查，书签，完整的 Python API ， Goto 功能，即时项目切换，多选择，多窗口等等。Sublime Text 是一个跨平台的编辑器，同时支持Windows、Linux、Mac OS X等操作系统。

长文图解七种负载均衡策略

1 三组概念

2 简单随机

3 加权随机

3.1 设计思路

3.2 代码实例

3.3 DUBBO源码

4 简单轮询

5 简单加权轮询

6 平滑加权轮询

6.1 设计思路

6.2 代码实例

6.3 DUBBO源码

7 一致性哈希

7.1 特性分析

(1) 特性一

(2) 特性二

(3) 特性三

7.2 代码实例

7.3 DUBBO源码

8 最少活跃数

9 文章总结

Apache Druid 在 Shopee 的工程实践

芋道 ruoyi-vue-pro v1.4.0 发布：重构成多 Maven Module 的代码结构

相关文章

发表评论

资源下载

Mario

Nacos

Spring

Sublime Text

欢迎您来访！
