OpenHarmony-2.0-Canary 编译构建流程

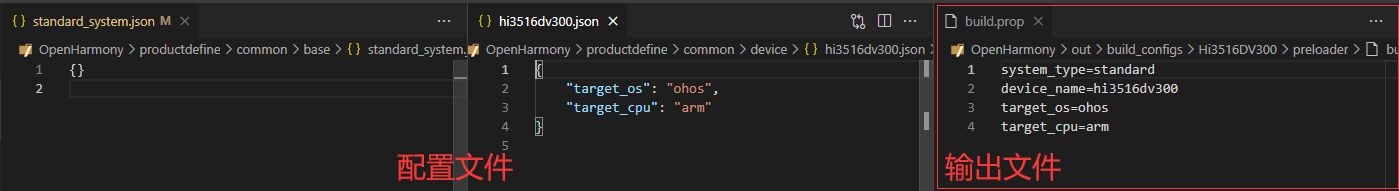

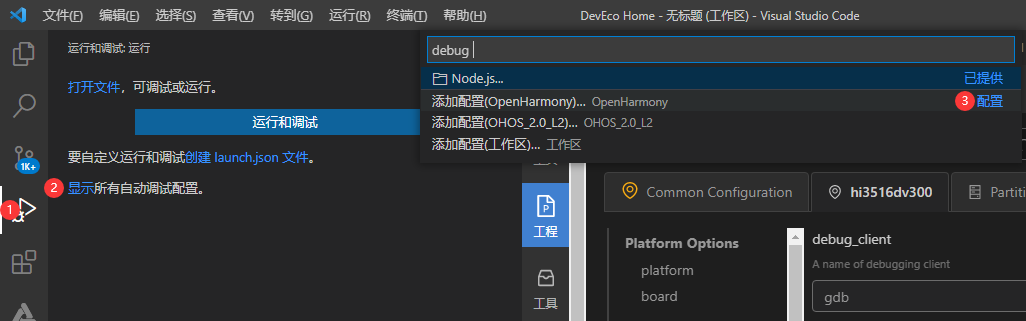

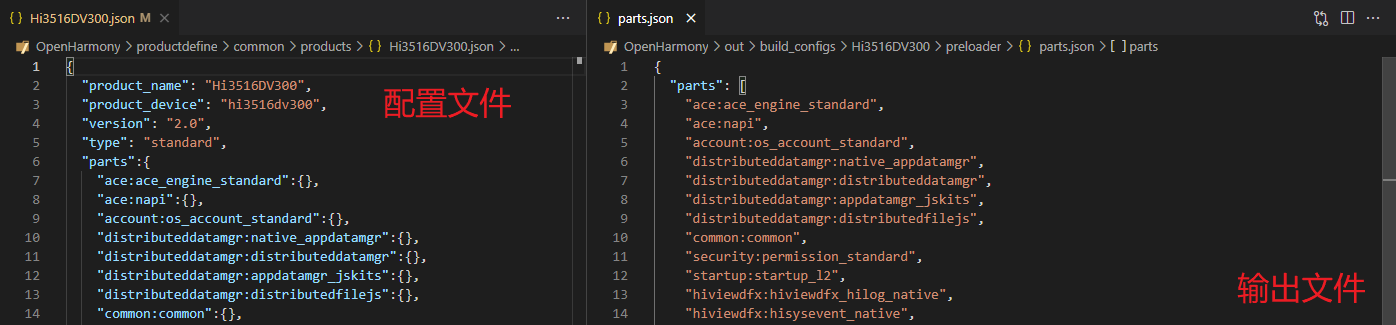

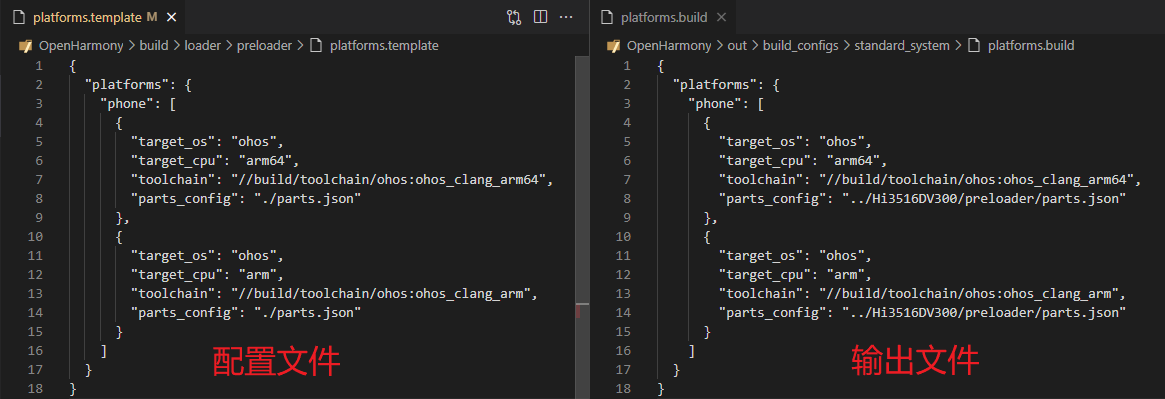

2.0版本的编译发生了很大的变化，由hb命令，变成了build.sh。经过分析发现，build.sh也是调用各种的python脚本来进行构建。这样看来1.1.0用json写配置，用python的 hb 解析，再调用gn、ninja来执行编译构建反而更简单了。估计下个版本还会改，我估计会统一成hb命令。 所以这次先简单分析下。 ./build.sh --product-name Hi3516DV300 ```Bash -x #回显参数和命令 -v #回显执行的源码 打开 OpenHarmony\build\build_scripts 下的 build.sh、build_common.sh、build_ohos.sh、build_standard.sh、parse_params.sh 将set -e 改为 set -exv 开启调试模式 ``` ## build.sh 加了调试参数，我们来分析下 build.sh 在编译构建中做了什么。 ```Bash # 各种判断和获取参数 # preloader 一.预加载 ${PYTHON3} ${source_root_dir}/build/loader/preloader/preloader.py \ --product-name ${product_name} \ --source-root-dir ${source_root_dir} \ --products-config-dir "productdefine/common/products" \ --preloader-output-root-dir "out/build_configs" # 设置环境变量 source ${source_root_dir}/out/build_configs/${product_name}/preloader/build.prop # source /home/bright/OpenHarmony/out/build_configs/Hi3516DV300/preloader/build.prop # call build 二.编译构建 ${source_root_dir}/build/build_scripts/build_${system_type}.sh \ --product-name ${product_name} \ --device-name ${device_name} \ --target-os ${target_os} \ --target-cpu ${target_cpu} \ ${build_params} ``` ## 一.预加载 debug的方法，用单步调试来看看这个 preloader.py 的作用。  调试参数： ```json { // 使用 IntelliSense 了解相关属性。 // 悬停以查看现有属性的描述。 // 欲了解更多信息，请访问: https://go.microsoft.com/fwlink/?linkid=830387 "version": "0.2.0", "configurations": [ { "name": "preloader.py", "type": "python", "request": "launch", "program": "./build/loader/preloader/preloader.py", "console": "integratedTerminal", "args": [ "--product-name","Hi3516DV300", "--source-root-dir","", "--products-config-dir","productdefine/common/products", "--preloader-output-root-dir","out/build_configs" ], "stopOnEntry": true } ] } ``` 调用了2个python文件，Z:\OpenHarmony\build\loader\preloader\preloader.py 和 Z:\OpenHarmony\build\scripts\util\file_utils.py 这个函数有4个参数。 ```Bash python3 build/loader/preloader/preloader.py \ --product-name Hi3516DV300 \ --source-root-dir "" \ --products-config-dir productdefine/common/products \ --preloader-output-root-dir out/build_configs Z:\OpenHarmony\build\loader\preloader\preloader.py:180 # 建议断点打在这，跳过import parser = argparse.ArgumentParser() ``` 全部操作主要就是def _run(args):这一个函数 ```python Z:\OpenHarmony\build\loader\preloader\preloader.py:133 def _run(args): # 忽略不重要的步骤，直接看核心部分 # 生成 out/build_configs/Hi3516DV300/preloader/parts.json write_json_file(parts_info_file, parts_config_info) # 获取 OpenHarmony/build/loader/preloader/platforms.template 这个模板 platforms_template_file = _get_platform_template_file(args.source_root_dir) # 复制 OpenHarmony\out\build_configs\standard_system\platforms.build _copy_platforms_config(platforms_template_file, parts_info_file, platform_config_output_path) _build_info_list = [] build_info_file = os.path.join(product_info_output_path, 'build.prop') for k, v in build_configs.items(): _build_info_list.append('{}={}'.format(k, v)) # 生成 out/build_configs/Hi3516DV300/preloader/build.prop write_file(build_info_file, '\n'.join(_build_info_list)) ``` 简单来说就是通过产品形态配置仓调取3个json文件+1个platforms.template，生成3个配置文件 产品形态配置仓调取3个json文件，具体可以参考：https://gitee.com/openharmony/productdefine_common ```Bash 配置文件： productdefine/common ├── base # 不同系统类型的最小系统，开发者不用配置，系统提供 │ └── standard_system.json ├── device # device配置，配置文件按照device name命名 │ └── hi3516dv300.json └── products # 产品配置，配置文件按照product name命名 └── Hi3516DV300.json 输出文件： ├── Hi3516DV300 │ └── preloader │ ├── build.prop │ └── parts.json └── standard_system └── platforms.build ``` 来个更直观的对比图吧。    ## 二.编译构建 build_standard.sh 这个脚本有2个任务： 1. 准备好参数执行gn、ninja构建命令。 2. 将编译好的文件打包成镜像。 ```Bash build/build_scripts/build_standard.sh --product-name Hi3516DV300 --device-name hi3516dv300 --target-os ohos --target-cpu arm # 换个姿势，方便查看 build_standard.sh --product-name Hi3516DV300 --device-name hi3516dv300 --target-os ohos --target-cpu arm ``` 接下来先分析下 build_standard.sh ```Bash Z:\OpenHarmony\build\build_scripts\build_standard.sh # 忽略不重要的步骤，直接看核心部分 function main() { # build ohos do_make_ohos # 这个函数在 OpenHarmony\build\build_scripts\build_common.sh 文件中。 # 而最终这个函数会生成，下面这条构建脚本，主要的编译工作都是由 build_ohos.sh 来完成的。 + build/build_scripts/build_ohos.sh device_type=Hi3516DV300 target_os=ohos target_cpu=arm gn_args=is_standard_system=true ... ... # build images build/adapter/images/build_image.sh --device-name ${device_name} \ --ohos-build-out-dir ${ohos_build_root_dir}/packages/phone # 第二部分重要工作是生成镜像。参考：2.【生成镜像】 + build/adapter/images/build_image.sh --device-name hi3516dv300 --ohos-build-out-dir /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone } ``` ### 1.build_ohos.sh【编译构建】 这个脚本的结构就简单了 1. 参数初始化 2. 执行编译构建gn、ninjia 3. 统计分析结果 ```Bash build/build_scripts/build_ohos.sh device_type=Hi3516DV300 target_os=ohos target_cpu=arm gn_args=is_standard_system=true # 忽略不重要的步骤，直接看核心部分 main() { source ${BUILD_SCRIPT_DIR}/pre_process.sh pre_process "$@" # 再执行a.参数初始化 source ${BUILD_SCRIPT_DIR}/make_main.sh do_make "$@" # 再执行b.Gn和ninja的命令都是在这个脚本执行 source ${BUILD_SCRIPT_DIR}/post_process.sh post_process "$@" # 再执行c.构建完成之后进行的收尾工作 gn_args=is_standard_system=true exit $RET } main "$@" ================================================================================================================================ 【参数设置】 + BIN_PATH=/home/bright/OpenHarmony/build/build_scripts + BASE_HOME=/home/bright/OpenHarmony + BUILD_SCRIPT_DIR=/home/bright/OpenHarmony/build/core/build_scripts 【脚本执行】 + pre_process device_type=Hi3516DV300 target_os=ohos target_cpu=arm gn_args=is_standard_system=true + main device_type=Hi3516DV300 target_os=ohos target_cpu=arm gn_args=is_standard_system=true + post_process device_type=Hi3516DV300 target_os=ohos target_cpu=arm ``` #### a.pre_process.sh 对各种参数进行初始化 ```Bash pre_process() { echo "pre_process" case $(uname -s) in Darwin) HOST_DIR="darwin-x86" HOST_OS="mac" ;; Linux) HOST_DIR="linux-x86" HOST_OS="linux" ;; *) echo "Unsupported host platform: $(uname -s)" RET=1 exit $RET esac export PATH=${BASE_HOME}/prebuilts/python/${HOST_DIR}/3.8.5/bin:${BASE_HOME}/prebuilts/build-tools/${HOST_DIR}/bin:$PATH python --version # 初始化了4个脚本,对参数进行初始化，这块先不展开了，下个版本不改再来分析 source ${BUILD_SCRIPT_DIR}/init_parameters.sh # 给参数赋值 source ${BUILD_SCRIPT_DIR}/parse_cmdline.sh source ${BUILD_SCRIPT_DIR}/common_fun.sh source ${BUILD_SCRIPT_DIR}/trap_ctrlc.sh init_parameter "$@" # 这个脚本没啥好说的，就是参数赋值 parse_cmdline "$@" # 解析命令行 # Trap SIGINT trap "trap_ctrlc" 2 if [ "${PYCACHE_ENABLE}" == true ];then source ${BUILD_SCRIPT_DIR}/set_pycache.sh set_pycache fi } ================================================================================================================================ 【生成环境变量】 + export PATH=/home/bright/OpenHarmony/prebuilts/python/linux-x86/3.8.5/bin:/home/bright/OpenHarmony/prebuilts/build-tools/linux-x86/bin: /home/bright/.local/bin:/home/bright/OpenHarmony/prebuilts/build-tools/common/nodejs/node-v12.18.4-linux-x64/bin:/home/bright/.local/bin: /home/bright/.local/bin:/home/bright/developtools:/home/bright/developtools/xpack-openocd-0.10.0-15/bin:/home/bright/developtools/gcc-lin aro-arm-linux-gnueabihf-4.9-2014.07_linux/bin:/home/bright/developtools/gcc_riscv32/bin:/home/bright/developtools/hc-gen:/home/bright/dev eloptools/llvm/bin:/home/bright/developtools/ninja:/home/bright/developtools/gn:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/ bin:/usr/games:/usr/local/games:/snap/bin 【执行脚本】 + init_parameter device_type=Hi3516DV300 target_os=ohos target_cpu=arm gn_args=is_standard_system=true + parse_cmdline device_type=Hi3516DV300 target_os=ohos target_cpu=arm gn_args=is_standard_system=true + trap trap_ctrlc 2 # trap运行 trap_ctrlc 脚本。TODO ``` #### b.make_main.sh丨gn、ninja 【重点】来看这个脚本，Gn和ninja的命令都是在这个脚本执行 参数： device_type=Hi3516DV300 target_os=ohos target_cpu=arm gn_args=is_standard_system=true ```Bash build\core\build_scripts\make_main.sh do_make() { TARGET_OUT_DIR=${BASE_HOME}/${OUT_DIR}/${TARGET_OS}-${TARGET_ARCH}-${BUILD_VARIANT} # 设置输出目录 # 忽略不重要的步骤，直接看核心部分 # prepare to save build log LOG_FILE=${TARGET_OUT_DIR}/build.log log_prepare $LOG_FILE # 生成编译构建的log文件，OpenHarmony/out/ohos-arm-release/build.log log "$@" BEGIN_TIME=$(date "+%s") # 记录当前时间 source ${BUILD_SCRIPT_DIR}/get_gn_parameters.sh get_gn_parameters # 这个脚本用来获取gn的参数 if [ "${SKIP_GN_PARSE}"x = falsex ]; then # 这里执行了gn命令，并将过程写入log文件，参考下面【gn命令】 ${BUILD_TOOLS_DIR}/gn gen ${TARGET_OUT_DIR} \ --args="target_os=\"${TARGET_OS}\" target_cpu=\"${TARGET_ARCH}\" is_debug=false \ device_type=\"${DEVICE_TYPE}\" is_component_build=true use_custom_libcxx=true \ ${GN_ARGS} ${TEST_BUILD_PARA_STRING} ${IS_ASAN} \ release_test_suite=${RELEASE_TEST_SUITE}" 2>&1 | tee -a $log # 忽略部分代码，到这里脚本调用了gn，这部分的内容是gn命令产生的，可以在OpenHarmony/out/ohos-arm-release/build.log中找到 log "Starting Ninja..." NINJA_START_TIME=$(date +%s%N) echo python version: $(python --version) ninja_build_args="--source-root-dir ${BASE_HOME} --root-build-dir ${TARGET_OUT_DIR} \ # 设置ninja的参数 --build-target-name ${BUILD_TARGET_NAME}" if [ "${TARGET_PLATFORM}" != "" ];then ninja_build_args="$ninja_build_args --target-platform ${TARGET_PLATFORM}" fi # 在执行ninja命令前，还得调用一个python脚本，参考：【构建目标处理程序】 real_build_target=$(python ${BASE_HOME}/build/scripts/build_target_handler.py $ninja_build_args) echo "build_target: "$real_build_target if [ "${USE_NARUTO}"x = "truex" ];then ${BUILD_TOOLS_DIR}/naruto -d keepdepfile -p ${BASE_HOME}/.naruto_cache -C ${TARGET_OUT_DIR} ${real_build_target} ${NINJA_ARGS} 2>&1 | tee -a $log else # 整个构建脚本最核心的部分，此时构建脚本全部交由ninja处理，打印编译信息，将结果写入log。参考：【ninja命令】 ${BUILD_TOOLS_DIR}/ninja -d keepdepfile -C ${TARGET_OUT_DIR} ${real_build_target} ${NINJA_ARGS} 2>&1 | tee -a $log fi # 忽略部分代码 } ================================================================================================================================ 【gn命令】 + /home/bright/OpenHarmony/prebuilts/build-tools/linux-x86/bin/gn gen /home/bright/OpenHarmony/out/ohos-arm-release '--args=target_os="ohos" target_cpu="arm" is_debug=false device_type="Hi3516DV300" is_component_build=true use_custom_libcxx=true is_standard_system=true release_test_suite=false' 【ninja参数】 + ninja_build_args='--source-root-dir /home/bright/OpenHarmony --root-build-dir /home/bright/OpenHarmony/out/ohos-arm-release --build-target-name packages' 【构建目标处理程序】 + python /home/bright/OpenHarmony/build/scripts/build_target_handler.py \ --source-root-dir /home/bright/OpenHarmony \ --root-build-dir /home/bright/OpenHarmony/out/ohos-arm-release \ --build-target-name packages 【ninja命令】 + ninja -d keepdepfile -C /home/bright/OpenHarmony/out/ohos-arm-release packages ``` #### c.post_process.sh 构建完成之后进行的收尾工作。 参数：device_type=Hi3516DV300 target_os=ohos target_cpu=arm gn_args=is_standard_system=true ```Bash build\core\build_scripts\post_process.sh # 忽略统计时间、pycache等部分代码，总结下来就是执行了几个python脚本 【这个python脚本，生成 sorted_action_duration.txt 排序构建各个模块的操作时间】 + python3 /home/bright/OpenHarmony/build/scripts/ninja2trace.py \ --ninja-log /home/bright/OpenHarmony/out/ohos-arm-release/.ninja_log \ --trace-file /home/bright/OpenHarmony/out/ohos-arm-release/build.trace \ --ninja-start-time 1623461510200574308 \ --duration-file /home/bright/OpenHarmony/out/ohos-arm-release/sorted_action_duration.txt 【计算C目标重叠率统计】 + python3 /home/bright/OpenHarmony/build/ohos/statistics/build_overlap_statistics.py \ --build-out-dir /home/bright/OpenHarmony/out/ohos-arm-release \ --subsystem-config-file /home/bright/OpenHarmony/build/subsystem_config.json \ --root-source-dir /home/bright/OpenHarmony 【获取构建警告列表】 + python3 /home/bright/OpenHarmony/build/scripts/get_warnings.py \ --build-log-file /home/bright/OpenHarmony/out/ohos-arm-release/build.log \ --warning-out-file /home/bright/OpenHarmony/out/ohos-arm-release/packages/WarningList.txt ``` ### 2.build_image.sh【生成镜像】 这个脚本的主要工作 1. 复制 root 目录 2. 生成镜像 ```Bash build/adapter/images/build_image.sh --device-name hi3516dv300 \ --ohos-build-out-dir /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone ... ... prepare_root # a.复制 root 目录 build_vendro_image # b.生成 vendr.image build_system_image # c.生成 system.image build_userdata_image # d.生成 userdata.image if [[ "${device_name}" == "hi3516dv300" ]]; then source ${OHOS_ROOT_PATH}/build/adapter/images/updater/build_updater_image.sh fi ``` #### a.复制 root 目录 ```Bash function prepare_root() { if [[ -d "${ohos_build_out_dir}/images/root" ]]; then rm -rf ${ohos_build_out_dir}/images/root fi cp -arf prebuilts/aosp_prebuilt_libs/minisys/root ${ohos_build_out_dir}/images/ local dir_list=(acct apex cache config data debug_ramdisk dev mnt oem proc sbin storage sys system vendor) pushd ${ohos_build_out_dir}/images/root # 【pushd 把当前工作目录压栈，成为栈顶】 for _path in ${dir_list[@]} do if [[ ! -d "${_path}" ]]; then mkdir ${_path} # 【新建 dir_list 里的目录】 fi done popd # 【popd 将目录弹出目录栈】 } ================================================================================================================================ 【复制root过来】 cp -arf prebuilts/aosp_prebuilt_libs/minisys/root /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/ 【然后新建下面列表的文件夹】 (acct apex cache config data debug_ramdisk dev mnt oem proc sbin storage sys system vendor) ``` #### b.生成 vendr.image ```Bash function build_vendro_image() { cp -arf prebuilts/aosp_prebuilt_libs/minisys/vendor ${ohos_build_out_dir}/images/ if [[ -d "${ohos_build_out_dir}/vendor" ]]; then cp -arf ${ohos_build_out_dir}/vendor/* ${ohos_build_out_dir}/images/vendor/ fi # remove img rm -rf ${ohos_build_out_dir}/images/vendor.img # build system image PATH=prebuilts/aosp_prebuilt_libs/host_tools/bin:$PATH prebuilts/aosp_prebuilt_libs/host_tools/releasetools/build_image.py \ ${ohos_build_out_dir}/images/vendor \ prebuilts/aosp_prebuilt_libs/minisys/vendor_image_info.txt \ ${ohos_build_out_dir}/images/vendor.img \ ${ohos_build_out_dir}/images/system if [[ "${PIPESTATUS[0]}" -ne 0 ]]; then echo "\033[31m build: build vendor image error.\033[0m" exit 1 fi echo -e "\033[32m build vendor image successful.\033[0m" } ================================================================================================================================ 【vendor的来源有两个】 # 1.prebuilts/aosp_prebuilt_libs/minisys/vendor # 2.out/ohos-arm-release/packages/phone/vendor + cp -arf prebuilts/aosp_prebuilt_libs/minisys/vendor /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/ + cp -arf /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/vendor/* /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/vendor/ 【设置环境变量】 PATH=prebuilts/aosp_prebuilt_libs/host_tools/bin:/home/bright/.local/bin:/home/bright/OpenHarmony/prebuilts/build-tools/common/nodejs/node-v12.18.4-linux-x64/bin:/home/bright/.local/bin:/home/bright/.local/bin:/home/bright/developtools:/home/bright/developtools/xpack-openocd-0.10.0-15/bin:/home/bright/developtools/gcc-linaro-arm-linux-gnueabihf-4.9-2014.07_linux/bin:/home/bright/developtools/gcc_riscv32/bin:/home/bright/developtools/hc-gen:/home/bright/developtools/llvm/bin:/home/bright/developtools/ninja:/home/bright/developtools/gn:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games:/snap/bin 【生成镜像】 + prebuilts/aosp_prebuilt_libs/host_tools/releasetools/build_image.py \ /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/vendor \ prebuilts/aosp_prebuilt_libs/minisys/vendor_image_info.txt \ /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/vendor.img \ /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/system ``` #### c.生成 system.image ```Bash function _update_build_prop() { local system_build_prop_file=${ohos_build_out_dir}/images/system/build.prop local ohos_build_prop_file=${OHOS_ROOT_PATH}/build/adapter/makefiles/ohos_system.prop if [[ -f "${ohos_build_prop_file}" ]] && [[ -f "${system_build_prop_file}" ]]; then echo '' >> ${system_build_prop_file} cat ${ohos_build_prop_file} >> ${system_build_prop_file} fi } function build_system_image() { if [[ ! -d "${ohos_build_out_dir}/images" ]]; then mkdir ${ohos_build_out_dir}/images fi cp -arf prebuilts/aosp_prebuilt_libs/minisys/system ${ohos_build_out_dir}/images/ cp -arf ${ohos_build_out_dir}/system/* ${ohos_build_out_dir}/images/system/ # update build.prop _update_build_prop # remove img rm -rf ${ohos_build_out_dir}/images/system.img # build system image PATH=prebuilts/aosp_prebuilt_libs/host_tools/bin:$PATH prebuilts/aosp_prebuilt_libs/host_tools/releasetools/build_image.py \ ${ohos_build_out_dir}/images/system \ prebuilts/aosp_prebuilt_libs/minisys/system_image_info.txt \ ${ohos_build_out_dir}/images/system.img \ ${ohos_build_out_dir}/images/system if [[ "${PIPESTATUS[0]}" -ne 0 ]]; then echo "\033[31m build: build system image error.\033[0m" exit 1 fi echo -e "\033[32m build system image successful.\033[0m" } ================================================================================================================================ 【local命令用于在函数内定义局部变量】 + local system_build_prop_file=/home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/system/build.prop + local ohos_build_prop_file=/build/adapter/makefiles/ohos_system.prop 【system的来源也有2个】 # 1.prebuilts/aosp_prebuilt_libs/minisys/system # 2.out/ohos-arm-release/packages/phone/system cp -arf prebuilts/aosp_prebuilt_libs/minisys/system /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/ cp -arf /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/system/* /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/system/ 【环境变量】 PATH=prebuilts/aosp_prebuilt_libs/host_tools/bin:/home/bright/.local/bin:/home/bright/OpenHarmony/prebuilts/build-tools/common/nodejs/node-v12.18.4-linux-x64/bin:/home/bright/.local/bin:/home/bright/.local/bin:/home/bright/developtools:/home/bright/developtools/xpack-openocd-0.10.0-15/bin:/home/bright/developtools/gcc-linaro-arm-linux-gnueabihf-4.9-2014.07_linux/bin:/home/bright/developtools/gcc_riscv32/bin:/home/bright/developtools/hc-gen:/home/bright/developtools/llvm/bin:/home/bright/developtools/ninja:/home/bright/developtools/gn:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games:/snap/bin 【镜像生成】 prebuilts/aosp_prebuilt_libs/host_tools/releasetools/build_image.py \ /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/system \ prebuilts/aosp_prebuilt_libs/minisys/system_image_info.txt \ /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/system.img \ /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/system ``` #### d.生成 userdata.image ```Bash function build_userdata_image() { if [[ -d "${ohos_build_out_dir}/images/data" ]]; then rm -rf ${ohos_build_out_dir}/images/data fi mkdir ${ohos_build_out_dir}/images/data # build userdat image PATH=prebuilts/aosp_prebuilt_libs/host_tools/bin:$PATH prebuilts/aosp_prebuilt_libs/host_tools/releasetools/build_image.py \ ${ohos_build_out_dir}/images/data \ prebuilts/aosp_prebuilt_libs/minisys/userdata_image_info.txt \ ${ohos_build_out_dir}/images/userdata.img \ ${ohos_build_out_dir}/images/system if [[ "${PIPESTATUS[0]}" -ne 0 ]]; then echo "\033[31m build: build userdata image error.\033[0m" exit 1 fi echo -e "\033[32m build userdata image successful.\033[0m" } ================================================================================================================================ 【新建data目录】 out/ohos-arm-release/packages/phone/images/data 【环境变量】 PATH=prebuilts/aosp_prebuilt_libs/host_tools/bin:/home/bright/.local/bin:/home/bright/OpenHarmony/prebuilts/build-tools/common/nodejs/node-v12.18.4-linux-x64/bin:/home/bright/.local/bin:/home/bright/.local/bin:/home/bright/developtools:/home/bright/developtools/xpack-openocd-0.10.0-15/bin:/home/bright/developtools/gcc-linaro-arm-linux-gnueabihf-4.9-2014.07_linux/bin:/home/bright/developtools/gcc_riscv32/bin:/home/bright/developtools/hc-gen:/home/bright/developtools/llvm/bin:/home/bright/developtools/ninja:/home/bright/developtools/gn:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games:/snap/bin 【镜像生成】 prebuilts/aosp_prebuilt_libs/host_tools/releasetools/build_image.py \ /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/data \ prebuilts/aosp_prebuilt_libs/minisys/userdata_image_info.txt \ /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/userdata.img \ /home/bright/OpenHarmony/out/ohos-arm-release/packages/phone/images/system ``` ### 3.关于build_image.py 这个python脚本多次被调用，如果下次版本升级还用它，我们再来深挖一下，这次先放他一马。 prebuilts/aosp_prebuilt_libs/host_tools/releasetools/build_image.py ```Bash properties_file build_image.py [输入目录] [属性文件] [输出文件] [输出录了] in_dir = argv[0] glob_dict_file = argv[1] out_file = argv[2] target_out = argv[3] ``` 往期文章： [鸿蒙编译构建丨hb工具分析](https://harmonyos.51cto.com/posts/5651) [想了解更多关于鸿蒙的内容，请访问：](https://harmonyos.51cto.com/#bkwz) [51CTO和华为官方战略合作共建的鸿蒙技术社区](https://harmonyos.51cto.com/#bkwz) https://harmonyos.51cto.com/#bkwz
