项目实践 | 行人跟踪与摔倒检测报警(文末获取完整源码)

日期：2021-02-02点击：476收藏

1、简介

本项目的目的是为了给大家提供跟多的实战思路，抛砖引玉为大家提供一个案例，也希望读者可以根据该方法实现更多的思想与想法，也希望读者可以改进该项目种提到的方法，比如改进其中的行人检测器、跟踪方法、行为识别算法等等。

本项目主要检测识别的行为有7类：Standing, Walking, Sitting, Lying Down, Stand up, Sit down, Fall Down。

2、项目方法简介

本文涉及的方法与算法包括：YOLO V3 Tiny、Deepsort、ST-GCN方法，其中YOLO V3 Tiny用于行人检测、DeepSort用于跟踪、而ST-GCN则是用于行为检测。

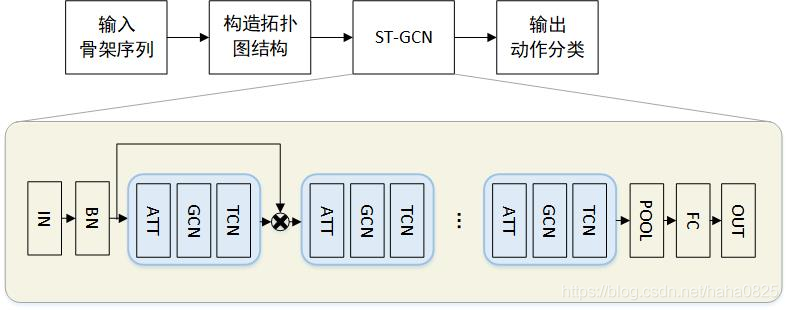

这里由于YOLO与DeepSort大家都已经比较了解，因此这里只简单说明一下ST-GCN 的流程，这里ST-GCN 的方法结构图如下：

给出一个动作视频的骨架序列信息，首先构造出表示该骨架序列信息的图结构，ST-GCN的输入就是图节点上的关节坐标向量，然后是一系列时空图卷积操作来提取高层的特征，最后用SofMax分类器得到对应的动作分类。整个过程实现了端到端的训练。

GCN 帮助我们学习了到空间中相邻关节的局部特征。在此基础上，我们需要学习时间中关节变化的局部特征。如何为 Graph 叠加时序特征，是图卷积网络面临的问题之一。这方面的研究主要有两个思路：时间卷积（TCN）和序列模型（LSTM）。

ST-GCN 使用的是 TCN，由于形状固定，可以使用传统的卷积层完成时间卷积操作。为了便于理解，可以类比图像的卷积操作。st-gcn 的 feature map 最后三个维度的形状为(C,V,T)，与图像 feature map 的形状(C,W,H)相对应。

图像的通道数C对应关节的特征数C。
图像的宽W对应关键帧数V。
图像的高H对应关节数T。

在图像卷积中，卷积核的大小为『w』×『1』，则每次完成w行像素，1列像素的卷积。『stride』为s，则每次移动s像素，完成1行后进行下1行像素的卷积。

在时间卷积中，卷积核的大小为『temporal_kernel_size』×『1』，则每次完成1个节点，temporal_kernel_size 个关键帧的卷积。『stride』为1，则每次移动1帧，完成1个节点后进行下1个节点的卷积。

训练如下：

输入的数据首先进行batch normalization，然后在经过9个ST-GCN单元，接着是一个global pooling得到每个序列的256维特征向量，最后用SoftMax函数进行分类，得到最后的标签。

每一个ST-GCN采用Resnet的结构，前三层的输出有64个通道，中间三层有128个通道，最后三层有256个通道，在每次经过ST-CGN结构后，以0.5的概率随机将特征dropout，第4和第7个时域卷积层的strides设置为2。用SGD训练，学习率为0.01，每10个epochs学习率下降0.1。

ST-GCN 最末卷积层的响应可视化结果图如下：

本文项目主函数代码如下：

import os
import cv2
import time
import torch
import argparse
import numpy as np

from Detection.Utils import ResizePadding
from CameraLoader import CamLoader, CamLoader_Q
from DetectorLoader import TinyYOLOv3_onecls

from PoseEstimateLoader import SPPE_FastPose
from fn import draw_single

from Track.Tracker import Detection, Tracker
from ActionsEstLoader import TSSTG

# source = '../Data/test_video/test7.mp4'
# source = '../Data/falldata/Home/Videos/video (2).avi' # hard detect
source = './output/test3.mp4'
# source = 2
def preproc(image):
 """preprocess function for CameraLoader.
 """
 image = resize_fn(image)
 image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
 return image


def kpt2bbox(kpt, ex=20):
 """Get bbox that hold on all of the keypoints (x,y)
 kpt: array of shape `(N, 2)`,
 ex: (int) expand bounding box,
 """
 return np.array((kpt[:, 0].min() - ex, kpt[:, 1].min() - ex,
 kpt[:, 0].max() + ex, kpt[:, 1].max() + ex))


if __name__ == '__main__':
 par = argparse.ArgumentParser(description='Human Fall Detection Demo.')
 par.add_argument('-C', '--camera', default=source, # required=True, # default=2,
 help='Source of camera or video file path.')
 par.add_argument('--detection_input_size', type=int, default=384,
 help='Size of input in detection model in square must be divisible by 32 (int).')
 par.add_argument('--pose_input_size', type=str, default='224x160',
 help='Size of input in pose model must be divisible by 32 (h, w)')
 par.add_argument('--pose_backbone', type=str, default='resnet50', help='Backbone model for SPPE FastPose model.')
 par.add_argument('--show_detected', default=False, action='store_true', help='Show all bounding box from detection.')
 par.add_argument('--show_skeleton', default=True, action='store_true', help='Show skeleton pose.')
 par.add_argument('--save_out', type=str, default='./output/output3.mp4', help='Save display to video file.')
 par.add_argument('--device', type=str, default='cuda', help='Device to run model on cpu or cuda.')
 args = par.parse_args()

 device = args.device

 # DETECTION MODEL.
 inp_dets = args.detection_input_size
 detect_model = TinyYOLOv3_onecls(inp_dets, device=device)

 # POSE MODEL.
 inp_pose = args.pose_input_size.split('x')
 inp_pose = (int(inp_pose[0]), int(inp_pose[1]))
 pose_model = SPPE_FastPose(args.pose_backbone, inp_pose[0], inp_pose[1], device=device)

 # Tracker.
 max_age = 30
 tracker = Tracker(max_age=max_age, n_init=3)

 # Actions Estimate.
 action_model = TSSTG()

 resize_fn = ResizePadding(inp_dets, inp_dets)

 cam_source = args.camera
 if type(cam_source) is str and os.path.isfile(cam_source):
 # Use loader thread with Q for video file.
 cam = CamLoader_Q(cam_source, queue_size=1000, preprocess=preproc).start()
 else:
 # Use normal thread loader for webcam.
 cam = CamLoader(int(cam_source) if cam_source.isdigit() else cam_source,
 preprocess=preproc).start()

 # frame_size = cam.frame_size
 # scf = torch.min(inp_size / torch.FloatTensor([frame_size]), 1)[0]
 outvid = False
 if args.save_out != '':
 outvid = True
 codec = cv2.VideoWriter_fourcc(*'mp4v')
 print((inp_dets * 2, inp_dets * 2))
 writer = cv2.VideoWriter(args.save_out, codec, 25, (inp_dets * 2, inp_dets * 2))

 fps_time = 0
 f = 0
 while cam.grabbed():
 f += 1
 frame = cam.getitem()
 image = frame.copy()

 # Detect humans bbox in the frame with detector model.
 detected = detect_model.detect(frame, need_resize=False, expand_bb=10)

 # Predict each tracks bbox of current frame from previous frames information with Kalman filter.
 tracker.predict()
 # Merge two source of predicted bbox together.
 for track in tracker.tracks:
 det = torch.tensor([track.to_tlbr().tolist() + [0.5, 1.0, 0.0]], dtype=torch.float32)
 detected = torch.cat([detected, det], dim=0) if detected is not None else det

 detections = [] # List of Detections object for tracking.
 if detected is not None:
 # detected = non_max_suppression(detected[None, :], 0.45, 0.2)[0]
 # Predict skeleton pose of each bboxs.
 poses = pose_model.predict(frame, detected[:, 0:4], detected[:, 4])

 # Create Detections object.
 detections = [Detection(kpt2bbox(ps['keypoints'].numpy()),
 np.concatenate((ps['keypoints'].numpy(),
 ps['kp_score'].numpy()), axis=1),
 ps['kp_score'].mean().numpy()) for ps in poses]

 # VISUALIZE.
 if args.show_detected:
 for bb in detected[:, 0:5]:
 frame = cv2.rectangle(frame, (bb[0], bb[1]), (bb[2], bb[3]), (0, 0, 255), 1)

 # Update tracks by matching each track information of current and previous frame or
 # create a new track if no matched.
 tracker.update(detections)

 # Predict Actions of each track.
 for i, track in enumerate(tracker.tracks):
 if not track.is_confirmed():
 continue
 track_id = track.track_id
 bbox = track.to_tlbr().astype(int)
 center = track.get_center().astype(int)

 action = 'pending..'
 clr = (0, 255, 0)
 # Use 30 frames time-steps to prediction.
 if len(track.keypoints_list) == 30:
 pts = np.array(track.keypoints_list, dtype=np.float32)
 out = action_model.predict(pts, frame.shape[:2])
 action_name = action_model.class_names[out[0].argmax()]
 action = '{}: {:.2f}%'.format(action_name, out[0].max() * 100)
 if action_name == 'Fall Down':
 clr = (255, 0, 0)
 elif action_name == 'Lying Down':
 clr = (255, 200, 0)

 # VISUALIZE.
 if track.time_since_update == 0:
 if args.show_skeleton:
 frame = draw_single(frame, track.keypoints_list[-1])
 frame = cv2.rectangle(frame, (bbox[0], bbox[1]), (bbox[2], bbox[3]), (0, 255, 0), 1)
 frame = cv2.putText(frame, str(track_id), (center[0], center[1]), cv2.FONT_HERSHEY_COMPLEX, 0.4, (255, 0, 0), 2)
 frame = cv2.putText(frame, action, (bbox[0] + 5, bbox[1] + 15), cv2.FONT_HERSHEY_COMPLEX, 0.4, clr, 1)

 # Show Frame.
 frame = cv2.resize(frame, (0, 0), fx=2., fy=2.)
 frame = cv2.putText(frame, '%d, FPS: %f' % (f, 1.0 / (time.time() - fps_time)), (10, 20), cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 255, 0), 1)
 frame = frame[:, :, ::-1]
 fps_time = time.time()

 if outvid:
 writer.write(frame)

 cv2.imshow('frame', frame)
 if cv2.waitKey(1) & 0xFF == ord('q'):
 break
 # Clear resource.
 cam.stop()
 if outvid:
 writer.release()
 cv2.destroyAllWindows()
