Radio
Radio 单选框是在一组选项中，互斥的选择单个选项；
源码分析
class Radio<T> extends StatefulWidget {
const Radio({
Key key,
@required this.value, // 当前单选框设置的值
@required this.groupValue, // 当前单选框选定状态的值
@required this.onChanged, // 选中回调
this.activeColor, // 选中状态颜色
this.focusColor, // 获取焦点时颜色
this.hoverColor, // 高亮时颜色
this.materialTapTargetSize, // 点击范围最小大小
this.focusNode,
this.autofocus = false,
})
}
简单分析源码可得，Radio 是一个有状态的 StatefulWidget 小组件；Radio 单选框本身不保持任何状态，通过 onChanged 回调，来判断当前 value 是否与 groupValue 选项组中对应的 item 是否一致，来判断选中状态；一般通过调用 State.setState() 更新单选按钮的 groupValue 从而响应 onChanged 回调；
案例尝试

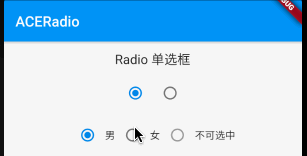

onChanged
Radio 单选框一般分为三个状态，分别为未选中状态、选中状态和不可选中状态；onChanged 为单选框选中的回调，根据 value 和 groupValue 匹配是否为选中状态；当 onChanged 为 null 时，单选框为不可选中状态；
return Row(mainAxisAlignment: MainAxisAlignment.center, children: <Widget>[
Row(children: <Widget>[
Radio(value: GenderType.MALE, groupValue: _groupValue,
onChanged: (val) { print('---onChanged---$val');
setState(() => _groupValue = val);
}),
Text('男')
]),
Row(children: <Widget>[
Radio(value: GenderType.FEMALE, groupValue: _groupValue,
onChanged: (val) { print('---onChanged---$val');
setState(() => _groupValue = val);
}),
Text('女')
]),
Row(children: <Widget>[
Radio(value: GenderType.FEMALE, groupValue: _groupValue, onChanged: null),
Text('不可选中')
])
]);
![]()

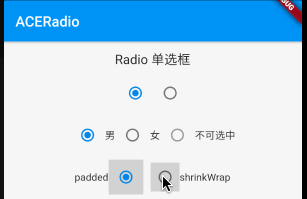

materialTapTargetSize
materialTapTargetSize 为默认 Radio 可选中点击的最小范围；主要分为 padded 和 shrinkWrap 两种状态，分析源码可以看到两者尺寸相差 8.0，因此 Radio 所在的范围是不可变更的，这也是和尚准备自定义 ACERadio 扩展方向之一；
switch (widget.materialTapTargetSize ?? themeData.materialTapTargetSize) {
case MaterialTapTargetSize.padded:
size = const Size(2 * kRadialReactionRadius + 8.0, 2 * kRadialReactionRadius + 8.0);
break;
case MaterialTapTargetSize.shrinkWrap:
size = const Size(2 * kRadialReactionRadius, 2 * kRadialReactionRadius);
break;
}
return Row(mainAxisAlignment: MainAxisAlignment.center, children: <Widget>[
Row(children: <Widget>[
Text('padded'),
Container( color: Colors.grey.withOpacity(0.4),
child: Radio( value: GenderType.MALE, groupValue: _groupValue,
materialTapTargetSize: MaterialTapTargetSize.padded,
onChanged: (val) { print('---onChanged---$val');
setState(() => _groupValue = val);
})),
]),
SizedBox(width: 10),
Row(children: <Widget>[
Container( color: Colors.grey.withOpacity(0.4),
child: Radio( value: GenderType.FEMALE, groupValue: _groupValue,
materialTapTargetSize: MaterialTapTargetSize.shrinkWrap,
onChanged: (val) { print('---onChanged---$val');
setState(() => _groupValue = val);
})),
Text('shrinkWrap')
])
]);
![]()

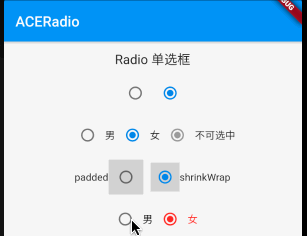

activeColor
activeColor 为单选框选中状态时绘制的颜色；若未设置，默认为 ThemeData.toggleableActiveColor 对应颜色；
return Row(mainAxisAlignment: MainAxisAlignment.center, children: <Widget>[
Row(children: <Widget>[
Radio( value: GenderType.MALE, groupValue: _groupValue,
activeColor: Colors.green,
onChanged: (val) { print('---onChanged---$val');
setState(() => _groupValue = val);
}),
Text('男', style: TextStyle( color: _groupValue == GenderType.MALE ? Colors.green : Colors.black))
]),
Row(children: <Widget>[
Radio( value: GenderType.FEMALE, groupValue: _groupValue,
activeColor: Colors.red,
onChanged: (val) { print('---onChanged---$val');
setState(() => _groupValue = val);
}),
Text('女', style: TextStyle( color: _groupValue == GenderType.FEMALE ? Colors.red : Colors.black))
])
]);
![]()
focusColor & hoverColor
focusColor / hoverColor 分别对应获取焦点时的颜色与点击高亮颜色；但和尚尝试了多次效果并不明显，因需求场景较少，暂不做处理；

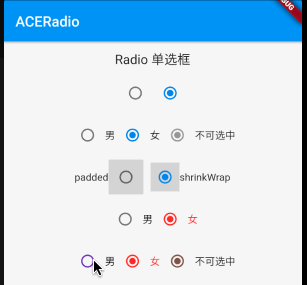

未选中颜色 & 不可选颜色
Radio 并未提供未选中状态和不可选中状态按钮颜色；和尚分析源码，发现 未选中状态 与 ThemeData.unselectedWidgetColor 颜色对应，不可选中状态 与 ThemeData.disabledColor 对应；若需要动态修改这两种颜色状态，可以在对应的 Radio 外设置 ThemeData 对应的颜色状态即可；
return Theme(
data: ThemeData(unselectedWidgetColor: Colors.deepPurple, disabledColor: Colors.brown),
child:
Row(mainAxisAlignment: MainAxisAlignment.center, children: <Widget>[
Row(children: <Widget>[
Radio( value: GenderType.MALE, groupValue: _groupValue,
activeColor: Colors.green,
onChanged: (val) { print('---onChanged---$val');
setState(() => _groupValue = val);
}),
Text('男', style: TextStyle( color: _groupValue == GenderType.MALE ? Colors.green : Colors.black))
]),
Row(children: <Widget>[
Radio( value: GenderType.FEMALE, groupValue: _groupValue,
activeColor: Colors.red,
onChanged: (val) { print('---onChanged---$val');
setState(() => _groupValue = val);
}),
Text('女', style: TextStyle( color: _groupValue == GenderType.FEMALE ? Colors.red : Colors.black))
]),
Row(children: <Widget>[
Radio( value: GenderType.FEMALE, groupValue: _groupValue, onChanged: null),
Text('不可选中')
])
]));
![]()

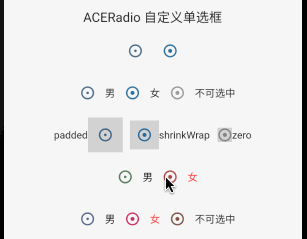

ACERadio
为了更灵活的应用 Radio 单选框，和尚准备在此基础上扩展如下几个方面：
动态设置 未选中状态颜色；
动态设置 不可选中状态颜色；
动态设置 选中框按钮尺寸；
添加状态 取消按钮外边距；
源码扩展
和尚自定义了三种 ACEMaterialTapTargetSize 尺寸，增加了 zero 类型取消按钮外边距；
enum ACEMaterialTapTargetSize { padded, shrinkWrap, zero }
double radius = widget.radioSize ?? kRadialReactionRadius;
switch (widget.materialTapTargetSize ?? ACEMaterialTapTargetSize.padded) {
case ACEMaterialTapTargetSize.padded:
size = Size(2 * radius + 8.0, 2 * radius + 8.0);
break;
case ACEMaterialTapTargetSize.shrinkWrap:
size = Size(2 * radius, 2 * radius);
break;
case ACEMaterialTapTargetSize.zero:
size = Size(radius, radius);
break;
}
和尚优先判断添加的未选中状态颜色和不可选中状态颜色；若未设置以 ThemeData 为准；
Color _getInactiveColor(ThemeData themeData) {
return enabled ? widget.unCheckedColor ?? themeData.unselectedWidgetColor
: widget.disabledColor ?? themeData.disabledColor;
}
和尚添加一个 radioSize 属性，在绘制按钮时，按比例动态绘制按钮尺寸；
// Outer circle
final Paint paint = Paint()
..color = Color.lerp(inactiveColor, radioColor, position.value)..style = PaintingStyle.stroke
..strokeWidth = radioSize / 4 ?? 2.0;
canvas.drawCircle(center, radioSize ?? _kOuterRadius, paint);
// Inner circle
if (!position.isDismissed) {
paint.style = PaintingStyle.fill;
canvas.drawCircle(center,
(radioSize != null ? radioSize * 4.5 / 8 : _kInnerRadius) * position.value, paint);
}
案例尝试

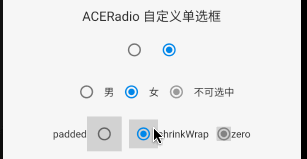

取消按钮外边距
Radio 默认提供了两种最小可点击范围，但和尚想取消按钮整体外边距，于是添加一种 ACEMaterialTapTargetSize.zero 方式来仅设置按钮尺寸；
return Row(mainAxisAlignment: MainAxisAlignment.center, children: <Widget>[
Row(children: <Widget>[
Text('padded'),
Container(color: Colors.grey.withOpacity(0.4),
child: ACERadio(value: GenderType.MALE, groupValue: _groupValue,
materialTapTargetSize: ACEMaterialTapTargetSize.padded,
onChanged: (val) => setState(() => _groupValue = val))),
]),
Row(children: <Widget>[
Container(color: Colors.grey.withOpacity(0.4),
child: ACERadio(value: GenderType.FEMALE, groupValue: _groupValue,
materialTapTargetSize: ACEMaterialTapTargetSize.shrinkWrap,
onChanged: (val) => setState(() => _groupValue = val))),
Text('shrinkWrap')
]),
Row(children: <Widget>[
Container(color: Colors.grey.withOpacity(0.4),
child: ACERadio(value: GenderType.FEMALE, groupValue: _groupValue,
materialTapTargetSize: ACEMaterialTapTargetSize.zero,
onChanged: null)),
Text('zero')
])
]);
![]()
未选中状态 & 不可选中状态
未选中状态 & 不可选中状态 可以通过 ThemeData 来动态修改，和尚为了方便，添加了 unCheckedColor & disabledColor 可直接进行设置；
return Row(mainAxisAlignment: MainAxisAlignment.center, children: <Widget>[
Row(children: <Widget>[
ACERadio(
value: GenderType.MALE, groupValue: _groupValue,
activeColor: Colors.green, unCheckedColor: Colors.deepPurple,
onChanged: (val) { print('---onChanged---$val');
setState(() => _groupValue = val);
}),
Text('男', style: TextStyle( color: _groupValue == GenderType.MALE ? Colors.green : Colors.black))
]),
Row(children: <Widget>[
ACERadio(
value: GenderType.FEMALE, groupValue: _groupValue,
activeColor: Colors.red, unCheckedColor: Colors.deepPurple,
onChanged: (val) { print('---onChanged---$val');
setState(() => _groupValue = val);
}),
Text('女', style: TextStyle( color: _groupValue == GenderType.FEMALE ? Colors.red : Colors.black))
]),
Row(children: <Widget>[
ACERadio(
value: GenderType.FEMALE, groupValue: _groupValue,
disabledColor: Colors.brown, unCheckedColor: Colors.deepPurple,
onChanged: null),
Text('不可选中')
])
]);
![]()

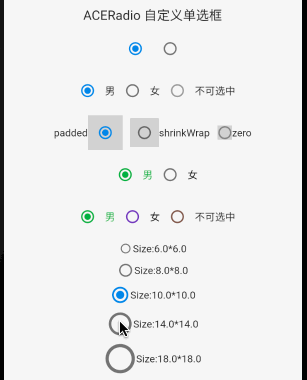

选中框按钮尺寸
Radio 单选框尺寸是固定的，和尚为了更方便的修改，添加了 radioSize 尺寸来动态修改按钮尺寸，且在动态设置按钮尺寸之后依旧支持最小点击范围的三种样式；
return Column(mainAxisSize: MainAxisSize.min, children: <Widget>[
Row(mainAxisSize: MainAxisSize.min, children: <Widget>[
ACERadio(radioSize: 6.0, value: SizeType.SIZE_6, groupValue: _groupSizeValue, onChanged: (val) => setState(() => _groupSizeValue = val)),
Text('Size:6.0*6.0')
]),
Row(mainAxisSize: MainAxisSize.min, children: <Widget>[
ACERadio(radioSize: 8.0, value: SizeType.SIZE_8, groupValue: _groupSizeValue, onChanged: (val) => setState(() => _groupSizeValue = val)),
Text('Size:8.0*8.0')
]),
Row(mainAxisSize: MainAxisSize.min, children: <Widget>[
ACERadio(radioSize: 10.0, value: SizeType.SIZE_10, groupValue: _groupSizeValue, onChanged: (val) => setState(() => _groupSizeValue = val)),
Text('Size:10.0*10.0')
]),
Row(mainAxisSize: MainAxisSize.min, children: <Widget>[
ACERadio(radioSize: 14.0, value: SizeType.SIZE_14, groupValue: _groupSizeValue, onChanged: (val) => setState(() => _groupSizeValue = val)),
Text('Size:14.0*14.0')
]),
Row(mainAxisSize: MainAxisSize.min, children: <Widget>[
ACERadio(radioSize: 18.0, value: SizeType.SIZE_18, groupValue: _groupSizeValue, onChanged: (val) => setState(() => _groupSizeValue = val)),
Text('Size:18.0*18.0')
]),
]);
![]()
ACERadio 案例源码
和尚对底层源码还不够深入，只是对 Radio 单选框的一点小扩展；如有错误，请多多指导！
![]()
