介绍
通过一个完整例子，在 gogf/gf 框架中合理管理日志。
有什么使用场景？
- 日志自动滚动
- 分成多个日志文件
- 日志格式修改
- 等等
我们将会使用 rk-boot 来启动 gogf/gf 框架的微服务。
请访问如下地址获取完整教程：
安装
go get github.com/rookie-ninja/rk-boot/gf
简述概念
rk-boot 使用如下两个库管理日志。
rk-boot 定义了两种日志类型，会在后面详细介绍，这里先做个简短介绍。
- ZapLogger: 标准日志，用于记录 Error, Info 等。
- EventLogger: JSON 或者 Console 格式，用于记录 Event，例如 RPC 请求。
快速开始
在这个例子中，我们会试着改变 zap 日志的路径和格式。
1.创建 boot.yaml
---
zapLogger:
- name: zap-log # Required
zap:
encoding: json # Optional, options: console, json
outputPaths: ["logs/zap.log"] # Optional
gf:
- name: greeter
port: 8080
enabled: true
2.创建 main.go
往 zap-log 日志实例中写个日志。
// Copyright (c) 2021 rookie-ninja
//
// Use of this source code is governed by an Apache-style
// license that can be found in the LICENSE file.
package main
import (
"context"
"github.com/rookie-ninja/rk-boot"
_ "github.com/rookie-ninja/rk-boot/gf"
)
func main() {
// Create a new boot instance.
boot := rkboot.NewBoot()
// Bootstrap
boot.Bootstrap(context.Background())
// Write zap log
boot.GetZapLoggerEntry("zap-log").GetLogger().Info("This is zap-log")
// Wait for shutdown sig
boot.WaitForShutdownSig(context.Background())
}
3.验证
文件夹结构
├── boot.yaml
├── go.mod
├── go.sum
├── logs
│ └── zap.log
└── main.go
日志输出
{"level":"INFO","ts":"2021-10-21T02:10:09.279+0800","msg":"This is zap-log"}
配置 EventLogger
上面的例子中，我们配置了 zap 日志，这回我们修改一下 EventLogger。
1.创建 boot.yaml
---
eventLogger:
- name: event-log # Required
encoding: json # Optional, options: console, json
outputPaths: ["logs/event.log"] # Optional
gf:
- name: greeter
port: 8080
enabled: true
2.创建 main.go
往 event-log 实例中写入日志。
package main
import (
"context"
"github.com/rookie-ninja/rk-boot"
"github.com/rookie-ninja/rk-entry/entry"
)
func main() {
// Create a new boot instance.
boot := rkboot.NewBoot()
// Bootstrap
boot.Bootstrap(context.Background())
// Write event log
helper := boot.GetEventLoggerEntry("event-log").GetEventHelper()
event := helper.Start("demo-event")
event.AddPair("key", "value")
helper.Finish(event)
// Wait for shutdown sig
boot.WaitForShutdownSig(context.Background())
}
3.启动 main.go
$ go run main.go
4.验证
文件夹结构
├── boot.yaml
├── go.mod
├── go.sum
├── logs
│ └── event.log
└── main.go
日志内容
{"endTime": "2022-01-18T22:18:44.926+0800", "startTime": "2022-01-18T22:18:44.926+0800", "elapsedNano": 746, "timezone": "CST", "ids": {"eventId":"2aaea6f5-c7ac-4245-ac50-857726f3ede4"}, "app": {"appName":"rk","appVersion":"","entryName":"","entryType":""}, "env": {"arch":"amd64","az":"*","domain":"*","hostname":"lark.local","localIP":"10.8.0.2","os":"darwin","realm":"*","region":"*"}, "payloads": {}, "error": {}, "counters": {}, "pairs": {"key":"value"}, "timing": {}, "remoteAddr": "localhost", "operation": "demo-event", "eventStatus": "Ended", "resCode": "OK"}
概念
上面的例子中，我们尝试了 ZapLogger 和 EventLogger。接下来我们看看 rk-boot 是如何实现的，并且怎么使用。

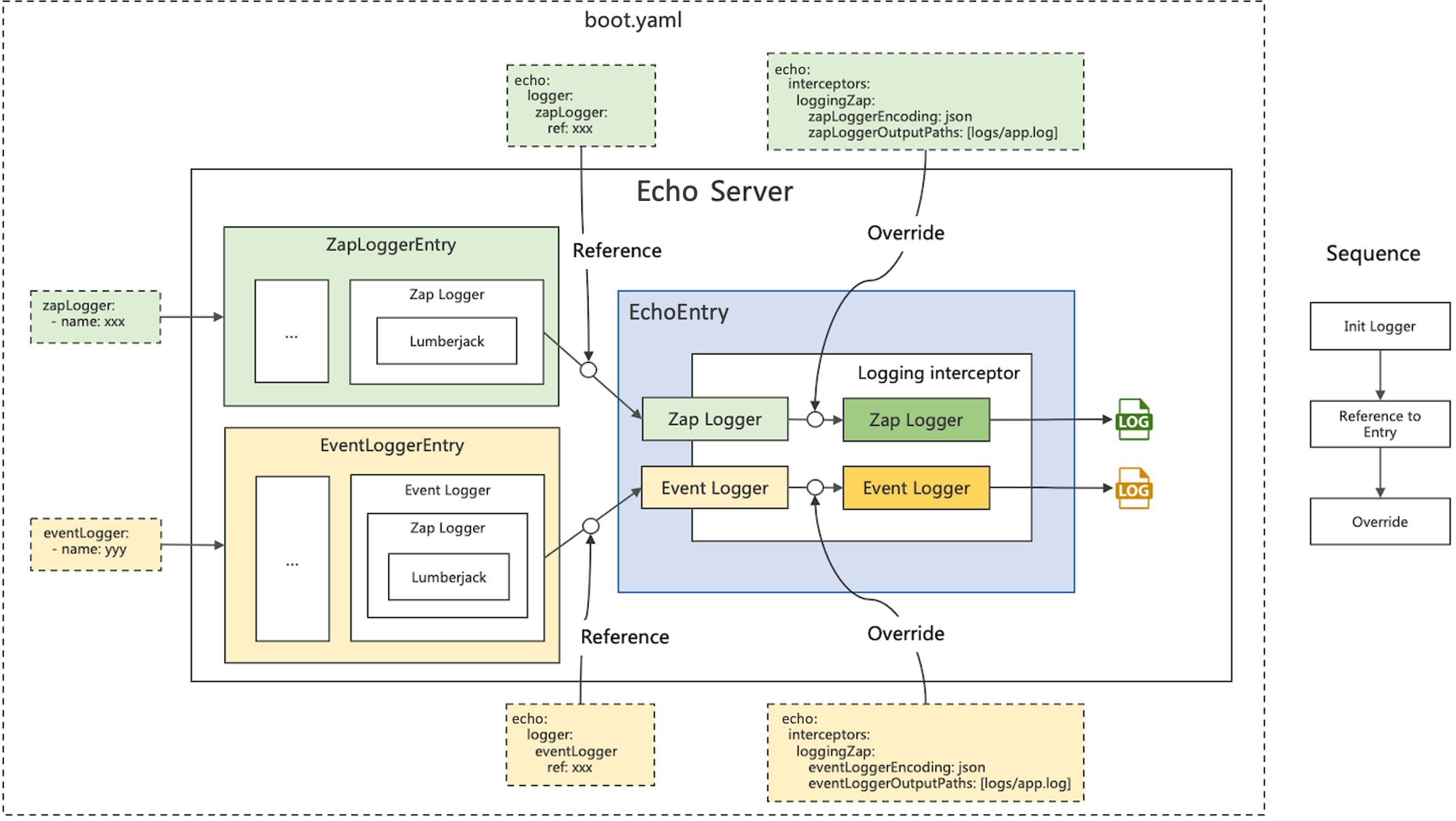

架构
![]()
ZapLoggerEntry
ZapLoggerEntry 是 zap 实例的一个封装。
// ZapLoggerEntry contains bellow fields.
// 1: EntryName: Name of entry.
// 2: EntryType: Type of entry which is ZapLoggerEntryType.
// 3: EntryDescription: Description of ZapLoggerEntry.
// 4: Logger: zap.Logger which was initialized at the beginning.
// 5: LoggerConfig: zap.Logger config which was initialized at the beginning which is not accessible after initialization..
// 6: LumberjackConfig: lumberjack.Logger which was initialized at the beginning.
type ZapLoggerEntry struct {
EntryName string `yaml:"entryName" json:"entryName"`
EntryType string `yaml:"entryType" json:"entryType"`
EntryDescription string `yaml:"entryDescription" json:"entryDescription"`
Logger *zap.Logger `yaml:"-" json:"-"`
LoggerConfig *zap.Config `yaml:"zapConfig" json:"zapConfig"`
LumberjackConfig *lumberjack.Logger `yaml:"lumberjackConfig" json:"lumberjackConfig"`
}
如何在 boot.yaml 里配置 ZapLoggerEntry?
ZapLoggerEntry 完全兼容 zap 和 lumberjack 的 YAML 结构。 用户可以根据需求，配置多个 ZapLogger 实例，并且通过 name 来访问。
完整配置:
---
zapLogger:
- name: zap-logger # Required
description: "Description of entry" # Optional
zap:
level: info # Optional, default: info, options: [debug, DEBUG, info, INFO, warn, WARN, dpanic, DPANIC, panic, PANIC, fatal, FATAL]
development: true # Optional, default: true
disableCaller: false # Optional, default: false
disableStacktrace: true # Optional, default: true
sampling: # Optional, default: empty map
initial: 0
thereafter: 0
encoding: console # Optional, default: "console", options: [console, json]
encoderConfig:
messageKey: "msg" # Optional, default: "msg"
levelKey: "level" # Optional, default: "level"
timeKey: "ts" # Optional, default: "ts"
nameKey: "logger" # Optional, default: "logger"
callerKey: "caller" # Optional, default: "caller"
functionKey: "" # Optional, default: ""
stacktraceKey: "stacktrace" # Optional, default: "stacktrace"
lineEnding: "\n" # Optional, default: "\n"
levelEncoder: "capitalColor" # Optional, default: "capitalColor", options: [capital, capitalColor, color, lowercase]
timeEncoder: "iso8601" # Optional, default: "iso8601", options: [rfc3339nano, RFC3339Nano, rfc3339, RFC3339, iso8601, ISO8601, millis, nanos]
durationEncoder: "string" # Optional, default: "string", options: [string, nanos, ms]
callerEncoder: "" # Optional, default: ""
nameEncoder: "" # Optional, default: ""
consoleSeparator: "" # Optional, default: ""
outputPaths: [ "stdout" ] # Optional, default: ["stdout"], stdout would be replaced if specified
errorOutputPaths: [ "stderr" ] # Optional, default: ["stderr"], stderr would be replaced if specified
initialFields: # Optional, default: empty map
key: "value"
lumberjack: # Optional
filename: "rkapp-event.log" # Optional, default: It uses <processname>-lumberjack.log in os.TempDir() if empty.
maxsize: 1024 # Optional, default: 1024 (MB)
maxage: 7 # Optional, default: 7 (days)
maxbackups: 3 # Optional, default: 3 (days)
localtime: true # Optional, default: true
compress: true # Optional, default: true
如何在代码里获取 ZapLogger?
通过 name 来访问。
boot := rkboot.NewBoot()
// Access entry
boot.GetZapLoggerEntry("zap-logger")
// Access zap logger
boot.GetZapLoggerEntry("zap-logger").GetLogger()
// Access zap logger config
boot.GetZapLoggerEntry("zap-logger").GetLoggerConfig()
// Access lumberjack config
boot.GetZapLoggerEntry("zap-logger").GetLumberjackConfig()
EventLoggerEntry
rk-boot 把每一个 RPC 请求看作一个 Event，并且使用 rk-query 中的 Event 类型来记录日志。
// EventLoggerEntry contains bellow fields.
// 1: EntryName: Name of entry.
// 2: EntryType: Type of entry which is EventLoggerEntryType.
// 3: EntryDescription: Description of EventLoggerEntry.
// 4: EventFactory: rkquery.EventFactory was initialized at the beginning.
// 5: EventHelper: rkquery.EventHelper was initialized at the beginning.
// 6: LoggerConfig: zap.Config which was initialized at the beginning which is not accessible after initialization.
// 7: LumberjackConfig: lumberjack.Logger which was initialized at the beginning.
type EventLoggerEntry struct {
EntryName string `yaml:"entryName" json:"entryName"`
EntryType string `yaml:"entryType" json:"entryType"`
EntryDescription string `yaml:"entryDescription" json:"entryDescription"`
EventFactory *rkquery.EventFactory `yaml:"-" json:"-"`
EventHelper *rkquery.EventHelper `yaml:"-" json:"-"`
LoggerConfig *zap.Config `yaml:"zapConfig" json:"zapConfig"`
LumberjackConfig *lumberjack.Logger `yaml:"lumberjackConfig" json:"lumberjackConfig"`
}
EventLogger 字段
我们可以看到 EventLogger 打印出来的日志里，包含字段，介绍一下这些字段。
| 字段 |
详情 |
| endTime |
结束时间 |
| startTime |
开始时间 |
| elapsedNano |
Event 时间开销（Nanoseconds） |
| timezone |
时区 |
| ids |
包含 eventId, requestId 和 traceId。如果原数据拦截器被启动，或者 event.SetRequest() 被用户调用，新的 RequestId 将会被使用，同时 eventId 与 requestId 会一模一样。 如果调用链拦截器被启动，traceId 将会被记录。 |
| app |
包含 appName, appVersion, entryName, entryType。 |
| env |
包含 arch, az, domain, hostname, localIP, os, realm, region. realm, region, az, domain 字段。这些字段来自系统环境变量（REALM，REGION，AZ，DOMAIN）。 "*" 代表环境变量为空。 |
| payloads |
包含 RPC 相关信息。 |
| error |
包含错误。 |
| counters |
通过 event.SetCounter() 来操作。 |
| pairs |
通过 event.AddPair() 来操作。 |
| timing |
通过 event.StartTimer() 和 event.EndTimer() 来操作。 |
| remoteAddr |
RPC 远程地址。 |
| operation |
RPC 名字。 |
| resCode |
RPC 返回码。 |
| eventStatus |
Ended 或者 InProgress |
例子
------------------------------------------------------------------------
endTime=2021-11-27T02:30:27.670807+08:00
startTime=2021-11-27T02:30:27.670745+08:00
elapsedNano=62536
timezone=CST
ids={"eventId":"4bd9e16b-2b29-4773-8908-66c860bf6754"}
app={"appName":"gf-demo","appVersion":"master-f948c90","entryName":"greeter","entryType":"GfEntry"}
env={"arch":"amd64","az":"*","domain":"*","hostname":"lark.local","localIP":"10.8.0.6","os":"darwin","realm":"*","region":"*"}
payloads={"apiMethod":"GET","apiPath":"/rk/v1/healthy","apiProtocol":"HTTP/1.1","apiQuery":"","userAgent":"curl/7.64.1"}
error={}
counters={}
pairs={}
timing={}
remoteAddr=localhost:61726
operation=/rk/v1/healthy
resCode=200
eventStatus=Ended
EOE
如何在 boot.yaml 里配置 EventLoggerEntry?
EventLoggerEntry 将会把 Application 名字注入到 Event 中。启动器会从 go.mod 文件中提取 Application 名字。 如果没有 go.mod 文件，启动器会使用默认的名字。
用户可以根据需求，配置多个 EventLogger 实例，并且通过 name 来访问。
完整配置:
---
eventLogger:
- name: event-logger # Required
description: "This is description" # Optional
encoding: console # Optional, default: console, options: console and json
outputPaths: ["stdout"] # Optional
lumberjack: # Optional
filename: "rkapp-event.log" # Optional, default: It uses <processname>-lumberjack.log in os.TempDir() if empty.
maxsize: 1024 # Optional, default: 1024 (MB)
maxage: 7 # Optional, default: 7 (days)
maxbackups: 3 # Optional, default: 3 (days)
localtime: true # Optional, default: true
compress: true # Optional, default: true
如何在代码里获取 EventLogger？
通过 name 来访问。
boot := rkboot.NewBoot()
// Access entry
boot.GetEventLoggerEntry("event-logger")
// Access event factory
boot.GetEventLoggerEntry("event-logger").GetEventFactory()
// Access event helper
boot.GetEventLoggerEntry("event-logger").GetEventHelper()
// Access lumberjack config
boot.GetEventLoggerEntry("event-logger").GetLumberjackConfig()
如何使用 Event?
Event 是一个 interface，包含了若干方法，请参考：Event
常用方法：
boot := rkboot.NewBoot()
// Get EventHelper to create Event instance
helper := boot.GetEventLoggerEntry("event-log").GetEventHelper()
// Start and finish event
event := helper.Start("demo-event")
helper.Finish(event)
// Add K/V
event.AddPair("key", "value")
// Start and end timer
event.StartTimer("my-timer")
event.EndTimer("my-timer")
// Set counter
event.SetCounter("my-counter", 1)
