Kubernetes二进制高可用方案（高可用的部署方法）

2021-01-30 814

一、Kubernetes高可用概述

        Kubernetes高可用是保证Master节点中API Server服务的高可用。API Server提供了Kubernetes各类资源对象增删改查的唯一访问入口，是整个Kubernetes系统的数据总线和数据中心。采用负载均衡（Load Balance）连接两个Master节点可以提供稳定容器云业务。

1.1、Kubernetes高可用主机分配

主机名

IP地址

操作系统

主要软件

K8s-master01

192.168,200.111

CentOS7.x

Etcd+Kubernetes

K8s-master02

192.168.200.112

CentOS7.x

Etcd+Kubernetes

K8s-node01

192.168.200.113

CentOS7.x

Etcd+Kubernetes+Flannel+Docker

K8s-node02

192.168.200.114

CentOS7.x

Etcd+Kubernetes+Flannel+Docker

K8s-lb01

192.168.200.115

CentOS7.x

Nginx+Keepalived

K8s-lb02

192.168.200.116

CentOS7.x

Nginx+Keepalived

LB集群VIP地址为192.168.200.200。

1.2、Kubernetes高可用架构拓扑

 二、高可用架构部署

2.1、基础环境配置

（1）配置基础网络信息

        为所有主机配置IP地址、网关、DNS（建议配置阿里云的223.5.5.5）等基础网络信息。建议主机设置为静态IP地址，避免因为IP地址变化出现集群集中无法连接API Server的现象，导致Kubernetes群集不可用。

（2）配置主机名与地址解析记录

为所有主机配置主机名并添加地址解析记录，下面以k8s-master01主机为例进行操作演示。

[root@localhost ~]# hostnamectl set-hostname k8s-master01
[root@localhost ~]# bash

[root@k8s-master01 ~]# cat <<EOF>> /etc/hosts
192.168.200.111 k8s-master01
192.168.200.112 k8s-master02
192.168.200.113 k8s-node01
192.168.200.114 k8s-node02
192.168.200.115 k8s-lb01
192.168.200.116 k8s-lb02
EOF

（3）禁用防火墙与Selinux

[root@k8s-master01 ~]# iptables -F
[root@k8s-master01 ~]# systemctl stop firewalld && systemctl disable firewalld
[root@k8s-master01 ~]# setenforce 0
[root@k8s-master01 ~]# sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config

2.2、部署集群证书

        在k8s-master01主机上创建的目录“/k8s”，并将准备好的脚本文件etcd-cert.sh和etcd.sh上传至/k8s目录中。其中etcd-cert.sh脚本是etcd证书创建的脚本：etcd.sh脚本是etcd服务脚本，包含配置文件及启动脚本。

[root@k8s-master01 ~]# mkdir /k8s
[root@k8s-master01 ~]# cd /k8s/
[root@k8s-master01 k8s]# ls
etcd-cert.sh  etcd.sh

创建目录/k8s/etcd-cert，证书全部存放至该目录中，方便管理。

[root@k8s-master01 k8s]# mkdir etcd-cert
[root@k8s-master01 k8s]# mv etcd-cert.sh etcd-cert

上传cfssl、cfssl-certinfo、cfssljson软件包。部署到/usr/local/bin目录下并配置执行权限


[root@k8s-master01 k8s]# ls	#上传cfssl、cfssl-certinfo、cfssljson软件包（证书生成工具）
cfssl  cfssl-certinfo  cfssljson  etcd-cert  etcd.sh
[root@k8s-master01 k8s]# mv cfssl* /usr/local/bin/
[root@k8s-master01 k8s]# chmod +x /usr/local/bin/cfssl*
[root@k8s-master01 k8s]# ls -l /usr/local/bin/cfssl*
-rwxr-xr-x 1 root root 10376657 7月  21 2020 /usr/local/bin/cfssl
-rwxr-xr-x 1 root root  6595195 7月  21 2020 /usr/local/bin/cfssl-certinfo
-rwxr-xr-x 1 root root  2277873 7月  21 2020 /usr/local/bin/cfssljson

创建CA和Server证书

[root@k8s-master01 ~]# cd /k8s/etcd-cert/
[root@k8s-master01 etcd-cert]# cat etcd-cert.sh
cat > ca-config.json <<EOF
{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "www": {
         "expiry": "87600h",
         "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ]
      }
    }
  }
}
EOF

cat > ca-csr.json <<EOF
{
    "CN": "etcd CA",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Beijing",
            "ST": "Beijing"
        }
    ]
}
EOF

cfssl gencert -initca ca-csr.json | cfssljson -bare ca -

#-----------------------

cat > server-csr.json <<EOF
{
    "CN": "etcd",
    "hosts": [      #这里写的是etcd节点的IP地址（注意最后一个不能有逗号）
    "192.168.200.111",
    "192.168.200.112",
    "192.168.200.113",
    "192.168.200.114"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "BeiJing",
            "ST": "BeiJing"
        }
    ]
}
EOF

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=www server-csr.json | cfssljson -bare server

[root@k8s-master01 etcd-cert]# bash etcd-cert.sh
2021/01/28 15:20:19 [INFO] generating a new CA key and certificate from CSR
2021/01/28 15:20:19 [INFO] generate received request
2021/01/28 15:20:19 [INFO] received CSR
2021/01/28 15:20:19 [INFO] generating key: rsa-2048
2021/01/28 15:20:19 [INFO] encoded CSR
2021/01/28 15:20:19 [INFO] signed certificate with serial number 165215637414524108023506135876170750574821614462
2021/01/28 15:20:19 [INFO] generate received request
2021/01/28 15:20:19 [INFO] received CSR
2021/01/28 15:20:19 [INFO] generating key: rsa-2048
2021/01/28 15:20:19 [INFO] encoded CSR
2021/01/28 15:20:19 [INFO] signed certificate with serial number 423773750965483892371547928227340126131739080799
2021/01/28 15:20:19 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@k8s-master01 etcd-cert]# ls
ca-config.json  ca.csr  ca-csr.json  ca-key.pem  ca.pem  etcd-cert.sh  server.csr  server-csr.json  server-key.pem  server.pem

2.3、部署Etcd集群

2.3.1、准备Etcd相关工具与启动所需证书

[root@k8s-master01 ~]# cd /k8s/

上传 etcd-v3.3.18-linux-amd64.tar.gz软件包

[root@k8s-master01 k8s]# ls etcd
etcd-cert/                       etcd.sh                          etcd-v3.3.18-linux-amd64/        etcd-v3.3.18-linux-amd64.tar.gz
[root@k8s-master01 k8s]# mkdir /opt/etcd/{cfg,bin,ssl} -p
[root@k8s-master01 k8s]# cd etcd-v3.3.18-linux-amd64
[root@k8s-master01 etcd-v3.3.18-linux-amd64]# ls
Documentation  etcd  etcdctl  README-etcdctl.md  README.md  READMEv2-etcdctl.md
[root@k8s-master01 etcd-v3.3.18-linux-amd64]# mv etcd etcdctl /opt/etcd/bin/
[root@k8s-master01 etcd-v3.3.18-linux-amd64]# cp /k8s/etcd-cert/*.pem /opt/etcd/ssl/
[root@k8s-master01 etcd-v3.3.18-linux-amd64]# ls /opt/etcd/ssl/
ca-key.pem  ca.pem  server-key.pem  server.pem

2.3.2、部署Etcd集群

[root@k8s-master01 etcd-v3.3.18-linux-amd64]# cd /k8s/
[root@k8s-master01 k8s]# bash etcd.sh etcd01 192.168.200.111 etcd02=https://192.168.200.112:2380,etcd03=https://192.168.200.113:2380,etcd04=https://192.168.200.114:2380
Created symlink from /etc/systemd/system/multi-user.target.wants/etcd.service to /usr/lib/systemd/system/etcd.service.

执行时会卡在启动etcd服务上，实际已经启动Ctrl+C终止就行。（查看进程存在）（因为第一个etcd会尝试去连接其他节点，但他们此时还并未启动）

[root@k8s-master01 k8s]# scp -r /opt/etcd/ root@k8s-master02:/opt/
[root@k8s-master01 k8s]# scp -r /opt/etcd/ root@k8s-node01:/opt/
[root@k8s-master01 k8s]# scp -r /opt/etcd/ root@k8s-node02:/opt/

[root@k8s-master01 k8s]# scp /usr/lib/systemd/system/etcd.service root@k8s-master02:/usr/lib/systemd/system/
[root@k8s-master01 k8s]# scp /usr/lib/systemd/system/etcd.service root@k8s-node01:/usr/lib/systemd/system/
[root@k8s-master01 k8s]# scp /usr/lib/systemd/system/etcd.service root@k8s-node02:/usr/lib/systemd/system/

其他节点拿到后需修改后使用

[root@k8s-master02 ~]# cat /opt/etcd/cfg/etcd
#[Member]
ETCD_NAME="etcd02"    # 修改为相应的主机名
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.200.112:2380"    # 修改为相应的IP地址
ETCD_LISTEN_CLIENT_URLS="https://192.168.200.112:2379"    # 修改为相应的IP地址

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.200.112:2380"    # 修改为相应的IP地址
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.200.112:2379"    # 修改为相应的IP地址
ETCD_INITIAL_CLUSTER="etcd01=https://192.168.200.111:2380,etcd02=https://192.168.200.112:2380,etcd03=https://192.168.200.113:2380,etcd04=https://192.168.200.114:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"

[root@k8s-node01 ~]# cat /opt/etcd/cfg/etcd
#[Member]
ETCD_NAME="etcd03"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.200.113:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.200.113:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.200.113:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.200.113:2379"
ETCD_INITIAL_CLUSTER="etcd01=https://192.168.200.111:2380,etcd02=https://192.168.200.112:2380,etcd03=https://192.168.200.113:2380,etcd04=https://192.168.200.114:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"

[root@k8s-node02 ~]# cat /opt/etcd/cfg/etcd
#[Member]
ETCD_NAME="etcd04"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.200.114:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.200.114:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.200.114:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.200.114:2379"
ETCD_INITIAL_CLUSTER="etcd01=https://192.168.200.111:2380,etcd02=https://192.168.200.112:2380,etcd03=https://192.168.200.113:2380,etcd04=https://192.168.200.114:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"

maser01、master02、node01、node02这4台主机上均执行以下操作

[root@k8s-master01 k8s]# systemctl daemon-reload && systemctl restart etcd && systemctl enable etcd

2.4、部署APIServer组件

2.4.1、创建所需证书

        上传并解压master.zip包后会生成三个脚本：apiserver.sh、controller-manager.sh、及scheduler.sh。为脚本文件添加执行权限，后面每一个服务的启动都要依赖于这三个脚本。

[root@k8s-master01 ~]# cd /k8s/
[root@k8s-master01 k8s]# unzip master.zip
Archive:  master.zip
  inflating: apiserver.sh
  inflating: controller-manager.sh
  inflating: scheduler.sh
[root@k8s-master01 k8s]# chmod +x *.sh

        创建/k8s/k8s-cert目录，作为证书自签的工作目录，将所有证书都生成到此目录中。在/k8s/k8s-cert目录中创建证书生成脚本k8s-cert.sh，脚本内容如下所示。执行k8s-cert.sh脚本即可生成CA证书、服务器端的私钥、admin证书、proxy代理端证书。

[root@k8s-master01 k8s]# mkdir /k8s/k8s-cert
[root@k8s-master01 k8s]# cd /k8s/k8s-cert/

[root@k8s-master01 k8s-cert]# vim k8s-cert.sh
cat > ca-config.json <<EOF
{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "kubernetes": {
         "expiry": "87600h",
         "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ]
      }
    }
  }
}
EOF

cat > ca-csr.json <<EOF
{
    "CN": "kubernetes",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Beijing",
            "ST": "Beijing",
      	    "O": "k8s",
            "OU": "System"
        }
    ]
}
EOF

cfssl gencert -initca ca-csr.json | cfssljson -bare ca -

#-----------------------

cat > server-csr.json <<EOF
{
    "CN": "kubernetes",
    "hosts": [
      "10.0.0.1",
      "127.0.0.1",
      "192.168.200.111",
      "192.168.200.112",
      "192.168.200.113",
      "192.168.200.114",
      "192.168.200.200",    # 上面是四个节点的IP地址，200.200为VIP）（因为做完高可用之后node通过VIP连接到master，所以咱们的证书也要对VIP起到作用）
      "kubernetes",
      "kubernetes.default",
      "kubernetes.default.svc",
      "kubernetes.default.svc.cluster",
      "kubernetes.default.svc.cluster.local"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "BeiJing",
            "ST": "BeiJing",
            "O": "k8s",
            "OU": "System"
        }
    ]
}
EOF

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes server-csr.json | cfssljson -bare server

#-----------------------

cat > admin-csr.json <<EOF
{
  "CN": "admin",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "L": "BeiJing",
      "ST": "BeiJing",
      "O": "system:masters",
      "OU": "System"
    }
  ]
}
EOF

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes admin-csr.json | cfssljson -bare admin

#-----------------------

cat > kube-proxy-csr.json <<EOF
{
  "CN": "system:kube-proxy",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "L": "BeiJing",
      "ST": "BeiJing",
      "O": "k8s",
      "OU": "System"
    }
  ]
}
EOF

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-proxy-csr.json | cfssljson -bare kube-proxy

执行k8s-cert.sh脚本会生成8张证书。

[root@k8s-master01 k8s-cert]# bash k8s-cert.sh
2021/01/28 16:34:13 [INFO] generating a new CA key and certificate from CSR
2021/01/28 16:34:13 [INFO] generate received request
2021/01/28 16:34:13 [INFO] received CSR
2021/01/28 16:34:13 [INFO] generating key: rsa-2048
2021/01/28 16:34:13 [INFO] encoded CSR
2021/01/28 16:34:13 [INFO] signed certificate with serial number 308439344193766038756929834816982880388926996986
2021/01/28 16:34:13 [INFO] generate received request
2021/01/28 16:34:13 [INFO] received CSR
2021/01/28 16:34:13 [INFO] generating key: rsa-2048
2021/01/28 16:34:14 [INFO] encoded CSR
2021/01/28 16:34:14 [INFO] signed certificate with serial number 75368861589931302301330401750480744629388496397
2021/01/28 16:34:14 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
2021/01/28 16:34:14 [INFO] generate received request
2021/01/28 16:34:14 [INFO] received CSR
2021/01/28 16:34:14 [INFO] generating key: rsa-2048
2021/01/28 16:34:14 [INFO] encoded CSR
2021/01/28 16:34:14 [INFO] signed certificate with serial number 108292524112693440628246698004254871159937905177
2021/01/28 16:34:14 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
2021/01/28 16:34:14 [INFO] generate received request
2021/01/28 16:34:14 [INFO] received CSR
2021/01/28 16:34:14 [INFO] generating key: rsa-2048
2021/01/28 16:34:14 [INFO] encoded CSR
2021/01/28 16:34:14 [INFO] signed certificate with serial number 262399212790704249587468309931495790220005272357
2021/01/28 16:34:14 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@k8s-master01 k8s-cert]# ls *.pem
admin-key.pem  admin.pem  ca-key.pem  ca.pem  kube-proxy-key.pem  kube-proxy.pem  server-key.pem  server.pem
[root@k8s-master01 k8s-cert]# ls *.pem | wc -l
8

证书生辰以后，需要将其中的CA与Server相关证书拷贝到Kubernetes的工作目录。创建/opt/kubernetes/{cfg,bin,ssl}目录，分别用于存放配置文件、可执行文件以及证书文件。

[root@k8s-master01 ~]# mkdir /opt/kubernetes/{cfg,bin,ssl} -p
[root@k8s-master01 ~]# cd /k8s/k8s-cert/
[root@k8s-master01 k8s-cert]# cp ca*pem server*pem /opt/kubernetes/ssl/
[root@k8s-master01 k8s-cert]# ls /opt/kubernetes/ssl/
ca-key.pem  ca.pem  server-key.pem  server.pem

2.4.2、部署APIServer组件

        上传并解压Kubernetes软件压缩包，将压缩包中的kube-apiserver、kubectl、kube-controller-manager与kube-scheduler组件的脚本文件拷贝到/opt/kubernetes/bin/目录下。

[root@k8s-master01 ~]# cd /k8s/
[root@k8s-master01 k8s]# tar xf kubernetes-server-linux-amd64.tar.gz
[root@k8s-master01 k8s]# cd kubernetes/server/bin/
[root@k8s-master01 bin]# cp kube-apiserver kubectl kube-controller-manager kube-scheduler /opt/kubernetes/bin/
[root@k8s-master01 bin]# ls /opt/kubernetes/bin/
kube-apiserver  kube-controller-manager  kubectl  kube-scheduler

        在/opt/kubernetes/cfg/目录中创建名为token.csv的token文件，其本质就是创建一个用户角色，可以理解为管理性的角色。Node节点加入到群集当中也是通过这个角色去控制。但是，在此之前需要通过head命令生成随机序列号作为token令牌。token文件的主要内容如下所示，其中：

  • 48be2e8be6cca6e349d3e932768f5d71为token令牌；
  • kubelet-bootstrap为角色名；
  • 10001为角色ID；
  • "system:kubelet-bootstrap"为绑定的超级用户权限。
[root@k8s-master01 bin]# head -c 16 /dev/urandom | od -An -t x | tr -d ' '
48be2e8be6cca6e349d3e932768f5d71

[root@k8s-master01 ~]# vim /opt/kubernetes/cfg/token.csv
48be2e8be6cca6e349d3e932768f5d71,kubelet-bootstrap,10001,"system:kubelet-bootstrap"

将k8s-master01主机/opt/kubernetes/目录下的所有文件拷贝到k8s-master02主机中。

[root@k8s-master01 ~]# ls -R /opt/kubernetes/
/opt/kubernetes/:    # 三个目录
bin  cfg  ssl

/opt/kubernetes/bin:    # 一些命令
kube-apiserver  kube-controller-manager  kubectl  kube-scheduler

/opt/kubernetes/cfg:    # token的文件
token.csv

/opt/kubernetes/ssl:    # 一些证书
ca-key.pem  ca.pem  server-key.pem  server.pem
[root@k8s-master01 ~]#  scp -r /opt/kubernetes/ root@k8s-master02:/opt

        运行apiserver.sh脚本，运行脚本需要填写两个位置参数。第一个位置参数是本地的IP地址，第二个位置参数是API Server群集列表。

[root@k8s-master01 ~]# cd /k8s/
[root@k8s-master01 k8s]# bash apiserver.sh https://192.168.200.111 https://192.168.200.111:2379,https://192.168.200.112:2379,https://192.168.200.113:2379,https://192.168.200.114:2379
Created symlink from /etc/systemd/system/multi-user.target.wants/kube-apiserver.service to /usr/lib/systemd/system/kube-apiserver.service.

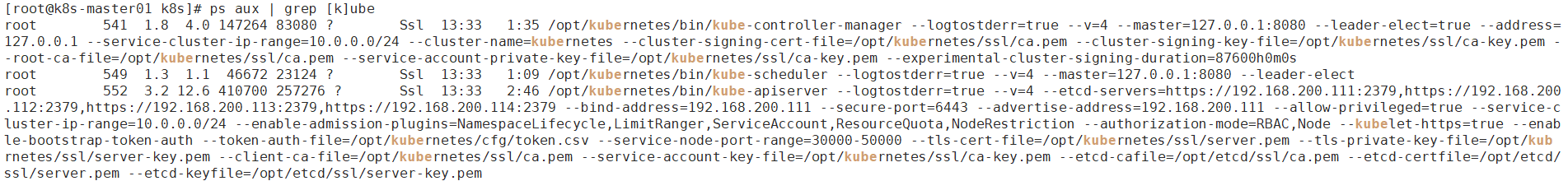

[root@k8s-master01 k8s]# ps aux | grep [k]ube

查看k8s-master01节点的6443安全端口以及https的8080端口是否启动。

[root@k8s-master01 k8s]# netstat -anpt | grep -E "6443|8080"
tcp        0      0 192.168.200.111:6443    0.0.0.0:*               LISTEN      39105/kube-apiserve
tcp        0      0 127.0.0.1:8080          0.0.0.0:*               LISTEN      39105/kube-apiserve
tcp        0      0 192.168.200.111:46832   192.168.200.111:6443    ESTABLISHED 39105/kube-apiserve
tcp        0      0 192.168.200.111:6443    192.168.200.111:46832   ESTABLISHED 39105/kube-apiserve

        将/opt/kubernetes/cfg/工作目录下的kube-apiserver配置文件及其token.csv令牌文件拷贝到k8s-master02主机上。在k8s-master02主机是上修改kube-apiserver配置文件，将bind-address、advertise-address地址修改为本机地址。

[root@k8s-master01 k8s]# scp /opt/kubernetes/cfg/* root@k8s-master02:/opt/kubernetes/cfg/

k8s-master02主机操作：



KUBE_APISERVER_OPTS="--logtostderr=true \
--v=4 \
--etcd-servers=https://192.168.200.111:2379,https://192.168.200.112:2379,https://192.168.200.113:2379,https://192.168.200.114:2379 \
--bind-address=192.168.200.112 \    # 修改为相应的IP地址
--secure-port=6443 \
--advertise-address=192.168.200.112 \    # 修改为相应的IP地址
--allow-privileged=true \
--service-cluster-ip-range=10.0.0.0/24 \
--enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,ResourceQuota,NodeRestriction \
--authorization-mode=RBAC,Node \
--kubelet-https=true \
--enable-bootstrap-token-auth \
--token-auth-file=/opt/kubernetes/cfg/token.csv \
--service-node-port-range=30000-50000 \
--tls-cert-file=/opt/kubernetes/ssl/server.pem  \
--tls-private-key-file=/opt/kubernetes/ssl/server-key.pem \
--client-ca-file=/opt/kubernetes/ssl/ca.pem \
--service-account-key-file=/opt/kubernetes/ssl/ca-key.pem \
--etcd-cafile=/opt/etcd/ssl/ca.pem \
--etcd-certfile=/opt/etcd/ssl/server.pem \
--etcd-keyfile=/opt/etcd/ssl/server-key.pem"
[root@k8s-master02 ~]# vim /opt/kubernetes/cfg/kube-apiserver

        将k8s-master01节点的kube-apiserver.service启动脚本拷贝到k8s-master02节点的/usr/lib/systemd/system目录下，并且在k8s-master02启动API Server，并且查看端口信息。

[root@k8s-master01 k8s]# scp /usr/lib/systemd/system/kube-apiserver.service root@k8s-master02:/usr/lib/systemd/system

k8s-master02主机操作：

[root@k8s-master02 ~]# systemctl start kube-scheduler  && systemctl enable kube-scheduler
[root@k8s-master02 ~]# netstat -anptu | grep -E "6443|8080"
tcp        0      0 192.168.200.112:6443    0.0.0.0:*               LISTEN      544/kube-apiserver
tcp        0      0 127.0.0.1:8080          0.0.0.0:*               LISTEN      544/kube-apiserver

2.5、部署Schedule组件

[root@k8s-master01 ~]# cd /k8s/
[root@k8s-master01 k8s]# ./scheduler.sh 127.0.0.1
Created symlink from /etc/systemd/system/multi-user.target.wants/kube-scheduler.service to /usr/lib/systemd/system/kube-scheduler.service.

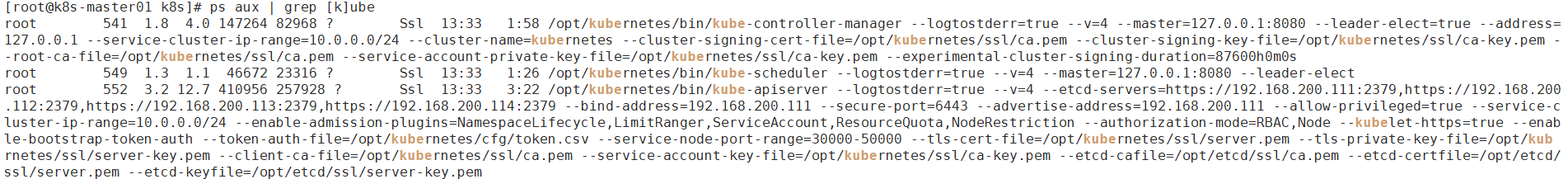

[root@k8s-master01 k8s]# ps aux | grep [k]ube

将k8s-master01节点的kube-scheduler配置文件与kube-scheduler.service启动脚本拷贝到k8s-master02节点上，并且在k8s-master02启动Schedule。

[root@k8s-master01 k8s]# scp /opt/kubernetes/cfg/kube-controller-manager root@k8s-master02:/opt/kubernetes/cfg/
[root@k8s-master01 k8s]# scp /usr/lib/systemd/system/kube-controller-manager.service root@k8s-master02:/usr/lib/systemd/system

k8s-master02主机操作：

[root@k8s-master02 ~]# systemctl start kube-scheduler
[root@k8s-master02 ~]# systemctl enable kube-scheduler

2.6、部署Controller-Manager组件

在k8s-master01节点，启动Controller-Manager服务。

[root@k8s-master01 k8s]# ./controller-manager.sh 127.0.0.1
Created symlink from /etc/systemd/system/multi-user.target.wants/kube-controller-manager.service to /usr/lib/systemd/system/kube-controller-manager.service.

        将k8s-master01节点的kube-controller-manager配置文件和controller-manager.service启动脚本拷贝到k8s-master02节点的/opt/kubernetes/cfg目录下，并且在k8s-master02节点上启动Controller-Manager。

[root@k8s-master01 k8s]# scp /opt/kubernetes/cfg/kube-controller-manager root@k8s-master02:/opt/kubernetes/cfg/
[root@k8s-master01 k8s]# scp /usr/lib/systemd/system/kube-controller-manager.service root@k8s-master02:/usr/lib/systemd/system

k8s-master02主机操作：

[root@k8s-master02 ~]# systemctl start kube-controller-manager
[root@k8s-master02 ~]# systemctl enable kube-controller-manager

在k8s-master01和k8s-master02节点上，查看各组件状态。

[root@k8s-master01 k8s]# /opt/kubernetes/bin/kubectl get cs
NAME                 STATUS    MESSAGE             ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-0               Healthy   {"health":"true"}
etcd-1               Healthy   {"health":"true"}
etcd-2               Healthy   {"health":"true"}
etcd-3               Healthy   {"health":"true"}
[root@k8s-master02 ~]#  /opt/kubernetes/bin/kubectl get cs
NAME                 STATUS    MESSAGE             ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-1               Healthy   {"health":"true"}
etcd-0               Healthy   {"health":"true"}
etcd-3               Healthy   {"health":"true"}
etcd-2               Healthy   {"health":"true"}

2.7、部署Docker环境

在两台node节点上均需要操作，以k8s-node01主机为例：

安装docker-ce

wget -O /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo

yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

yum makecache fast
yum -y install docker-ce
systemctl start docker && systemctl enable docker
docker version

阿里云镜像加速器

 tee /etc/docker/daemon.json <<-'EOF'
{
  "registry-mirrors": ["https://vbgix9o1.mirror.aliyuncs.com"]
}
EOF
systemctl daemon-reload && systemctl restart docker
docker info

2.8、部署Flannel网络组件

        虽然在两台node节点上安装了Docker，但是Docker运行的容器还需要网络组件Flannel的支持来实现彼此之间互联互通。

        首先需要将分配的子网段写入到Etcd中，以便Flannel使用。网络中涉及到的路由如何转发、源目地址如何封装等信息均存储到Etcd中。

        通过执行以下的etcdctl命令，定义以逗号进行分割列出群集中的IP地址，set指定网络中的配置，对应的参数etcd是一个键值对，设置网段为172.17.0.0/16，类型是vxlan。

        执行完后，查看两台node节点的docker0地址，即docker网关的地址是否为172.17.0.0/16网段的地址。

[root@k8s-master01 ~]# cd /k8s/etcd-cert/
[root@k8s-master01 etcd-cert]# /opt/etcd/bin/etcdctl --ca-file=ca.pem --cert-file=server.pem --key-file=server-key.pem --endpoints="https://192.168.200.111:2379,https://192.168.200.112:2379,https://192.168.200.113:2379,https://192.168.200.114:2379" set /coreos.com/network/config '{"Network":"172.17.0.0/16","Backend":{"Type":"vxlan"}}'
{"Nerwork":"172.17.0.0/16","Backend":{"Type":"vxlan"}}
[root@k8s-node01 ~]# ifconfig docker0
docker0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 172.17.0.1  netmask 255.255.0.0  broadcast 172.17.255.255
        ether 02:42:d6:c7:05:8b  txqueuelen 0  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

查看写入的网络信息

[root@k8s-master01 etcd-cert]# /opt/etcd/bin/etcdctl --ca-file=ca.pem --cert-file=server.pem --key-file=server-key.pem --endpoints="https://192.168.200.111:2379,https://192.168.200.112:2379,https://192.168.200.113:2379,https://192.168.200.114:2379" get /coreos.com/network/config
{"Nerwork":"172.17.0.0/1","Backend":{"Type":"vxlan"}}

        将flannel-v0.10.1-linux-amd64.tar.gz软件包上传两个node节点服务器，并进行解压缩。

在两台node节点上均需要操作

[root@k8s-node01 ~]# tar xf flannel-v0.12.0-linux-amd64.tar.gz

    在node节点上创建k8s工作目录。将flanneld脚本和mk-docker-opts.sh脚本剪切至k8s工作目录中。

[root@k8s-node01 ~]# mkdir /opt/kubernetes/{cfg,bin,ssl} -p
[root@k8s-node01 ~]# mv mk-docker-opts.sh flanneld /opt/kubernetes/bin/

        将追备好的flannel.sh脚本拖至两台node节点上，用以启动Flannel服务和创建陪孩子文件。其中：指定陪孩子文件路径/opt/kubernetes/cfg/flanneld/，Etcd的终端地址以及需要认证的证书密钥文件；指定启动脚本路径/usr/lib/systemd/system/flanneld.service，添加至自定义系统服务中，交由系统统一管理。

以k8s-node01为例：

[root@k8s-node01 ~]# cat /opt/etcd/cfg/etcd
#[Member]
ETCD_NAME="etcd03"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.200.113:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.200.113:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.200.113:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.200.113:2379"
ETCD_INITIAL_CLUSTER="etcd01=https://192.168.200.111:2380,etcd02=https://192.168.200.112:2380,etcd03=https://192.168.200.113:2380,etcd04=https://192.168.200.114:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
[root@k8s-node01 ~]# cat flannel.sh
#!/bin/bash

ETCD_ENDPOINTS=${1:-"http://127.0.0.1:2379"}

cat <<EOF >/opt/kubernetes/cfg/flanneld

FLANNEL_OPTIONS="--etcd-endpoints=${ETCD_ENDPOINTS} \
-etcd-cafile=/opt/etcd/ssl/ca.pem \
-etcd-certfile=/opt/etcd/ssl/server.pem \
-etcd-keyfile=/opt/etcd/ssl/server-key.pem"

EOF

cat <<EOF >/usr/lib/systemd/system/flanneld.service
[Unit]
Description=Flanneld overlay address etcd agent
After=network-online.target network.target
Before=docker.service

[Service]
Type=notify
EnvironmentFile=/opt/kubernetes/cfg/flanneld
ExecStart=/opt/kubernetes/bin/flanneld --ip-masq \$FLANNEL_OPTIONS
ExecStartPost=/opt/kubernetes/bin/mk-docker-opts.sh -k DOCKER_NETWORK_OPTIONS -d /run/flannel/subnet.env
Restart=on-failure

[Install]
WantedBy=multi-user.target

EOF

systemctl daemon-reload
systemctl enable flanneld
systemctl restart flanneld

[root@k8s-node01 ~]# bash flannel.sh https://192.168.200.111:2379,https://192.168.200.112:2379,https://192.168.200.113,https://192.168.200.114:2379

        两台node节点配置Docker连接Flannel。docker.service需要借助Flannel进行通信，需要修改docker.service。添加EnvironmentFile=/run/flannel/subnet.env，借助Flannel的子网进行通信以及添加$DOCKER_NETWORK_OPTIONS网络参数。以上两个参数均是官网要求。下面以k8s-node01主机为例进行操作演示。

[root@k8s-node01 ~]# vim /usr/lib/systemd/system/docker.service
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service containerd.service
Wants=network-online.target
Requires=docker.socket containerd.service

[Service]
Type=notify
# the default is not to use systemd for cgroups because the delegate issues still
# exists and systemd currently does not support the cgroup feature set required
# for containers run by docker
EnvironmentFile=/run/flannel/subnet.env    # 添加此行
ExecStart=/usr/bin/dockerd $DOCKER_NETWORK_OPTIONS -H fd:// --containerd=/run/containerd/containerd.sock  #  添加变量
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always

# Note that StartLimit* options were moved from "Service" to "Unit" in systemd 229.
# Both the old, and new location are accepted by systemd 229 and up, so using the old location
# to make them work for either version of systemd.
StartLimitBurst=3

# Note that StartLimitInterval was renamed to StartLimitIntervalSec in systemd 230.
# Both the old, and new name are accepted by systemd 230 and up, so using the old name to make
# this option work for either version of systemd.
StartLimitInterval=60s

# Having non-zero Limit*s causes performance problems due to accounting overhead
# in the kernel. We recommend using cgroups to do container-local accounting.
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity

# Comment TasksMax if your systemd version does not support it.
# Only systemd 226 and above support this option.
TasksMax=infinity

# set delegate yes so that systemd does not reset the cgroups of docker containers
Delegate=yes

# kill only the docker process, not all processes in the cgroup
KillMode=process
OOMScoreAdjust=-500

[Install]
WantedBy=multi-user.target

在两台node节点上查看使用的子网地址分别为172.17.11.1/24和172.17.100.1/24。bip是指定启动时的子网。

[root@k8s-node01 ~]# cat /run/flannel/subnet.env
DOCKER_OPT_BIP="--bip=172.17.11.1/24"
DOCKER_OPT_IPMASQ="--ip-masq=false"
DOCKER_OPT_MTU="--mtu=1450"
DOCKER_NETWORK_OPTIONS=" --bip=172.17.11.1/24 --ip-masq=false --mtu=1450"
[root@k8s-node02 ~]# cat /run/flannel/subnet.env
DOCKER_OPT_BIP="--bip=172.17.100.1/24"
DOCKER_OPT_IPMASQ="--ip-masq=false"
DOCKER_OPT_MTU="--mtu=1450"
DOCKER_NETWORK_OPTIONS=" --bip=172.17.100.1/24 --ip-masq=false --mtu=1450"

        在两台node节点上修改完启动脚本之后，需要重新启动Docker服务。分别查看两台node节点的docker0网卡信息。

[root@k8s-node01 ~]# systemctl daemon-reload && systemctl restart docker
[root@k8s-node01 ~]# ip add s docker0
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:d6:c7:05:8b brd ff:ff:ff:ff:ff:ff
    inet 172.17.11.1/24 brd 172.17.11.255 scope global docker0
       valid_lft forever preferred_lft forever
[root@k8s-node02 ~]#  systemctl daemon-reload && systemctl restart docker
[root@k8s-node02 ~]# ip add s docker0
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:b8:77:89:4a brd ff:ff:ff:ff:ff:ff
    inet 172.17.100.1/24 brd 172.17.100.255 scope global docker0
       valid_lft forever preferred_lft forever

        在两台node节点上分别运行busybox容器。（busybox是一个集成了三百多个常用linux命令和工具的软件工具箱，在本案例中用于测试）。

        进入容器内部查看k8s-node01节点的地址是172.17.11.2；k8s-node02节点的地址是172.17.100.2。与/run/flannel/subnet.env文件中看到的子网信息处于同一个网段。

        接着再通过ping命令测试，如果k8s-node02容器能ping通k8s-node01容器的IP地址就代表两个独立的容器可以互通，说明Flannel组件搭建成功。

[root@k8s-node01 ~]# docker pull busybox
[root@k8s-node01 ~]# docker run -it busybox /bin/sh
/ # ipaddr show eth0
9: eth0@if10: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1450 qdisc noqueue
    link/ether 02:42:ac:11:0b:03 brd ff:ff:ff:ff:ff:ff
    inet 172.17.11.2/24 brd 172.17.11.255 scope global eth0
       valid_lft forever preferred_lft forever

[root@k8s-node02 ~]# docker pull busybox
[root@k8s-node02 ~]# docker run -it busybox /bin/sh
/ # ip a s eth0
7: eth0@if8: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1450 qdisc noqueue
    link/ether 02:42:ac:11:64:02 brd ff:ff:ff:ff:ff:ff
    inet 172.17.100.2/24 brd 172.17.100.255 scope global eth0
       valid_lft forever preferred_lft forever
/ # ping -c 4 172.17.11.2
PING 172.17.11.2 (172.17.11.2): 56 data bytes
64 bytes from 172.17.11.2: seq=0 ttl=62 time=1.188 ms
64 bytes from 172.17.11.2: seq=1 ttl=62 time=0.598 ms
64 bytes from 172.17.11.2: seq=2 ttl=62 time=0.564 ms
64 bytes from 172.17.11.2: seq=3 ttl=62 time=0.372 ms

--- 172.17.11.2 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 0.372/0.680/1.188 ms

2.9、部署kubeconfig配置（类似于kubeadmin的初始化）

在k8s-master01节点上将kubelet和kube-proxy执行脚本拷贝到两台node节点上。

[root@k8s-master01 ~]# cd /k8s/kubernetes/server/bin/
[root@k8s-master01 bin]# scp kubelet kube-proxy root@k8s-node01:/opt/kubernetes/bin/
[root@k8s-master01 bin]# scp kubelet kube-proxy root@k8s-node02:/opt/kubernetes/bin/

        将node.zip上传至两台node节点，并解压node.zip，可获得proxy.sh和kubelet.sh两个执行脚本。以k8s-node01为例进行操作演示。

[root@k8s-node01 ~]# unzip node.zip
Archive:  node.zip
  inflating: proxy.sh
  inflating: kubelet.sh

[root@k8s-node02 ~]# unzip node.zip
Archive:  node.zip
  inflating: proxy.sh
  inflating: kubelet.sh

        在k8s-master01节点上创建kubeconfig工作目录。将kubecofng.sh脚本上传至当前目录/k8s/kubeconfig/下，此脚本中包含有创建TLS Bootstrapping Token、创建kubeletbootstrapping kubeconfig、设置集群参数、设置客户端认证参数、设置上下文参数、设置默认上下文、创建kube-proxy kubeconfig文件。

查看序列号将其拷贝到客户端认证参数。更新kubeconfig.sh脚本的token值。

[root@k8s-master01 ~]# mkdir /k8s/kubeconfig
[root@k8s-master01 ~]# cd /k8s/kubeconfig/

[root@k8s-master01 kubeconfig]# cat /opt/kubernetes/cfg/token.csv
48be2e8be6cca6e349d3e932768f5d71,kubelet-bootstrap,10001,"system:kubelet-bootstrap"

[root@k8s-master01 kubeconfig]# vim kubeconfig.sh
# 创建 TLS Bootstrapping Token
#BOOTSTRAP_TOKEN=$(head -c 16 /dev/urandom | od -An -t x | tr -d ' ')
BOOTSTRAP_TOKEN=48be2e8be6cca6e349d3e932768f5d71

        为了便于识别在k8s-master01和k8s-master02节点上声明路径export PATH=$PATH:/opt/kubernetes/bin/到环境变量中。

[root@k8s-master01 ~]# echo "export PATH=$PATH:/opt/kubernetes/bin/" >> /etc/profile
[root@k8s-master01 ~]# source /etc/profile

[root@k8s-master02 ~]# echo "export PATH=$PATH:/opt/kubernetes/bin/" >> /etc/profile
[root@k8s-master02 ~]# source /etc/profile

        将kubeconfig.sh重命名为kubeconfig，执行kubeconfig脚本。使用bash执行kubeconfig，第一个参数是当前APIServer的IP，它会写入整个配置当中；第二个参数执行证书kubenets的证书位置。执行完成以后会生成bootstrap.kubeconfig和kube-proxy.kubeconfig两个文件。

[root@k8s-master01 ~]# cd /k8s/kubeconfig/
[root@k8s-master01 kubeconfig]# mv kubeconfig.sh kubeconfig
[root@k8s-master01 kubeconfig]# bash kubeconfig 192.168.200.111 /k8s/k8s-cert/
Cluster "kubernetes" set.
User "kubelet-bootstrap" set.
Context "default" created.
Switched to context "default".
Cluster "kubernetes" set.
User "kube-proxy" set.
Context "default" created.
Switched to context "default".
[root@k8s-master01 kubeconfig]# ls
bootstrap.kubeconfig  kubeconfig  kube-proxy.kubeconfig  token.csv

将bootstrap.kubeconfig和kube-proxy.kubeconfig文件拷贝到两台node节点上。

[root@k8s-master01 kubeconfig]# scp bootstrap.kubeconfig kube-proxy.kubeconfig root@k8s-node01:/opt/kubernetes/cfg/
[root@k8s-master01 kubeconfig]# scp bootstrap.kubeconfig kube-proxy.kubeconfig root@k8s-node02:/opt/kubernetes/cfg/

        创建bootstrap角色，并赋予权限。用于连接API Server请求签名（关键）。查看k8s-node01节点的bootstrap.kubeconfig。kubelet在启动的时候如果想加入集群中，需要请求申请API Server请求签名。kubeconfig的作用是指名如果想要加入群集，需要通过哪一个地址、端口才能申请到所需要的证书。

[root@k8s-master01 kubeconfig]# kubectl create clusterrolebinding kubelet-bootstrap --clusterrole=system:node-bootstrapper --user=kubelet-bootstrap
clusterrolebinding.rbac.authorization.k8s.io/kubelet-bootstrap created
[root@k8s-node01 ~]# cat /opt/kubernetes/cfg/bootstrap.kubeconfig
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUR2akNDQXFhZ0F3SUJBZ0lVTmdibUJxMkJpRkF5Z1lEVFpvb1p1a3V4QWZvd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1pURUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEREQUtCZ05WQkFvVEEyczRjekVQTUEwR0ExVUVDeE1HVTNsemRHVnRNUk13RVFZRFZRUURFd3ByCmRXSmxjbTVsZEdWek1CNFhEVEl4TURFeU9EQTRNamt3TUZvWERUSTJNREV5TnpBNE1qa3dNRm93WlRFTE1Ba0cKQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbGFXcHBibWN4RERBSwpCZ05WQkFvVEEyczRjekVQTUEwR0ExVUVDeE1HVTNsemRHVnRNUk13RVFZRFZRUURFd3ByZFdKbGNtNWxkR1Z6Ck1JSUJJakFOQmdrcWhraUc5dzBCQVFFRkFBT0NBUThBTUlJQkNnS0NBUUVBMk1GRzYyVDdMTC9jbnpvNGx4V0gKZGNOVnVkblkzRTl0S2ZvbThNaVZKcFRtVUhlYUhoczY2M1loK1VWSklnWXkwVXJzWGRyc2VPWDg2Nm9PcEN1NQpUajRKbEUxbXQ5b1NlOEhLeFVhYkRqVjlwd05WQm1WSllCOEZIMnZVaTZVZEVpOVNnVXF2OTZIbThBSUlFbTFhCmpLREc2QXRJRWFZdFpJQ1MyeVg5ZStPVXVCUUtkcDBCcGdFdUxkMko5OEpzSjkrRzV6THc5bWdab0t5RHBEeHUKVHdGRC9HK2k5Vk9mbTh6ZzYzVzRKMUJWL0RLVXpTK1Q3NEs0S3I5ZmhDbHp4ZVo3bXR1eXVxUkM2c1lrcXpBdApEbklmNzB1QWtPRzRYMU52eUhjVmQ5Rzg4ZEM3NDNSbFZGZGNvbzFOM0hoZ1FtaG12ZXdnZ0tQVjZHWGwwTkJnCkx3SURBUUFCbzJZd1pEQU9CZ05WSFE4QkFmOEVCQU1DQVFZd0VnWURWUjBUQVFIL0JBZ3dCZ0VCL3dJQkFqQWQKQmdOVkhRNEVGZ1FVRVJ0cngrWHB4andVQWlKemJnUEQ2bGJOUlFFd0h3WURWUjBqQkJnd0ZvQVVFUnRyeCtYcAp4andVQWlKemJnUEQ2bGJOUlFFd0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFJWTBtdWxJK25BdE1KcWpSZXFnCmRuWk1Ya2U3ZGxIeHJKMmkvT3NaSXRoZUhYakMwMGdNWlRZSGV6WUxSKzl0MUNKV1lmUVdOR3V3aktvYitPaDUKMlE5SURUZmpJblhXcmU5VU5SNUdGNndNUDRlRzZreUVNbE9WcUc3L2tldERpNlRzRkZyZWJVY0FraEFnV0J1eApJWXJWb1ZhMFlCK3hhZk1KdTIzMnQ5VmtZZHovdm9jWGV1MHd1L096Z1dsUEJFNFBkSUVHRWprYW5yQTk5UCtGCjhSUkJudmVJcjR4S21iMlJIcEFYWENMRmdvNTc1c1hEQWNGbWswVm1KM2kzL3pPbmlsd3cwRmpFNFU2OVRmNWMKekhncE0vdmtLbG9aTjYySW44YUNtbUZTcmphcjJRem1Ra3FwWHRsQmdoZThwUjQ3UWhiZS93OW5DWGhsYnVySgpzTzQ9Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
    server: https://192.168.200.200:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: kubelet-bootstrap
  name: default
current-context: default
kind: Config
preferences: {}
users:
- name: kubelet-bootstrap
  user:
    token: 48be2e8be6cca6e349d3e932768f5d71

2.10、部署Kubelet组件

        在两台node节点上，执行kubelet脚本，并通过ps命令查看服务启动情况。kubelet启动之后会自动联系API Server发进行证书申请。在k8s-master01节点上通过get csr命令查看是否收到请求申请。当看到处于Pending状态时，即为等待集群给该节点颁发证书。

[root@k8s-node01 ~]# bash kubelet.sh 192.168.200.113
Created symlink from /etc/systemd/system/multi-user.target.wants/kubelet.service to /usr/lib/systemd/system/kubelet.service.

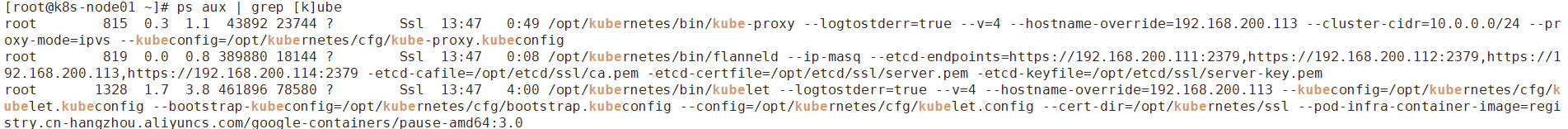

[root@k8s-node01 ~]# ps aux | grep [k]ube

[root@k8s-node02 ~]# bash kubelet.sh 192.168.200.114
Created symlink from /etc/systemd/system/multi-user.target.wants/kubelet.service to /usr/lib/systemd/system/kubelet.service.

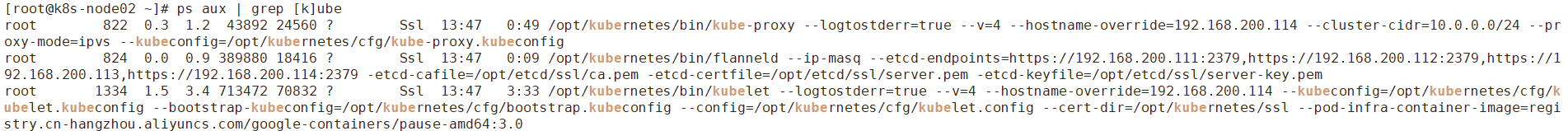

[root@k8s-node02 ~]# ps aux | grep [k]ube

[root@k8s-master01 kubeconfig]# kubectl get csr
NAME                                                   AGE    REQUESTOR           CONDITION
node-csr-4R-rZXsEI6Zf6HnklxVGZooXPwS11_8mTG5H5czDXTM   105s   kubelet-bootstrap   Pending
node-csr-Ha9B_rJVSOJ2OSTlOSiXwFbnwyLw_x4qUVfQfX-ks_4   48s    kubelet-bootstrap   Pending

        k8s-master01节点颁发证书给两台node节点。通过get csr命令可以查看到证书已经颁发。使用get node查看，两台node节点都已经加入到了群集中。

[root@k8s-master01 kubeconfig]# kubectl certificate approve node-csr-4R-rZXsEI6Zf6HnklxVGZooXPwS11_8mTG5H5czDXTM
certificatesigningrequest.certificates.k8s.io/node-csr-4R-rZXsEI6Zf6HnklxVGZooXPwS11_8mTG5H5czDXTM approved
[root@k8s-master01 kubeconfig]# kubectl certificate approve node-csr-Ha9B_rJVSOJ2OSTlOSiXwFbnwyLw_x4qUVfQfX-ks_4
certificatesigningrequest.certificates.k8s.io/node-csr-Ha9B_rJVSOJ2OSTlOSiXwFbnwyLw_x4qUVfQfX-ks_4 approved

[root@k8s-master01 kubeconfig]# kubectl get csr
NAME                                                   AGE     REQUESTOR           CONDITION
node-csr-4R-rZXsEI6Zf6HnklxVGZooXPwS11_8mTG5H5czDXTM   5m44s   kubelet-bootstrap   Approved,Issued
node-csr-Ha9B_rJVSOJ2OSTlOSiXwFbnwyLw_x4qUVfQfX-ks_4   4m47s   kubelet-bootstrap   Approved,Issued

2.11、部署Kube-Proxy组件

在两台node节点上执行proxy.sh脚本。

[root@k8s-node01 ~]# bash proxy.sh 192.168.200.113
Created symlink from /etc/systemd/system/multi-user.target.wants/kube-proxy.service to /usr/lib/systemd/system/kube-proxy.service.

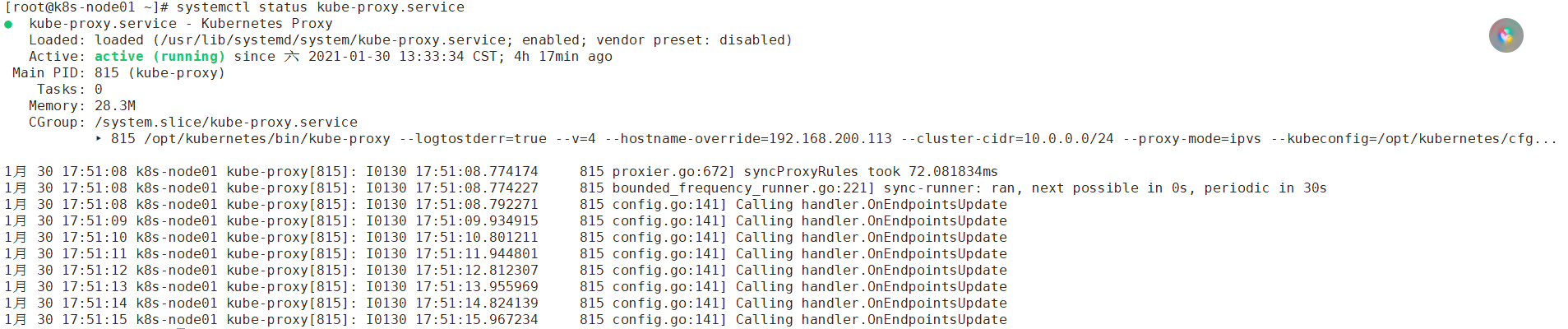

[root@k8s-node01 ~]# systemctl status kube-proxy.service

[root@k8s-node02 ~]# bash proxy.sh 192.168.200.114
Created symlink from /etc/systemd/system/multi-user.target.wants/kube-proxy.service to /usr/lib/systemd/system/kube-proxy.service.

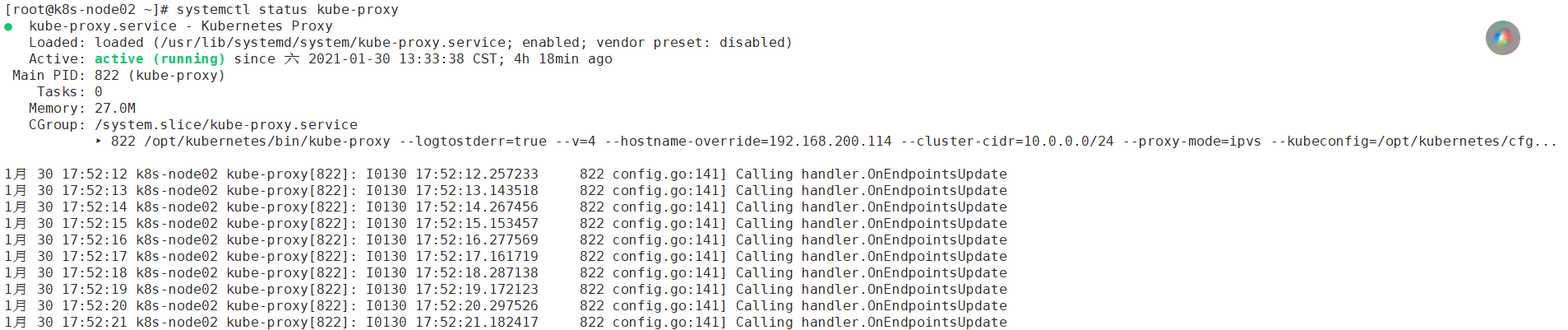

[root@k8s-node02 ~]# systemctl status kube-proxy

[root@k8s-master02 ~]# kubectl get node
NAME              STATUS   ROLES    AGE   VERSION
192.168.200.113   Ready    <none>   25h   v1.12.3
192.168.200.114   Ready    <none>   25h   v1.12.3

2.12、部署Nginx反向代理

        在NodePort基础上，Kubernetes可以请求底层云平台创建一个负载均衡器，将每个Node作为后端，进行服务分发。该模式需要底层云平台（例如GCE）支持。

安装配置Nginx服务，lb01、lb02主机上执行以下操作，以lb01节点为例

[root@k8s-lb01 ~]# rpm -ivh epel-release-latest-7.noarch.rpm
[root@k8s-lb01 ~]# yum -y install nginx
[root@k8s-lb01 ~]# vim /etc/nginx/nginx.conf
events {
    worker_connections 1024;
}

stream {    #四层代理stream和http是平级所以不要放在里面
    log_format main '$remote_addr $upstream_addr - [$time_local] $status $upstream_bytes_sent';
    access_log /var/log/nginx/k8s-access.log main;
    upstream k8s-apiserver {    # upstream声明k8s-apiserver，指定了两个master的6443端口
        server 192.168.200.111:6443;
        server 192.168.200.112:6443;
    }
    server {  # 然后server，listen监听的端口6443，proxy_pass反向代理给他
        listen 6443;
        proxy_pass k8s-apiserver;
    }
}

http {
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '

[root@k8s-lb01 ~]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@k8s-lb01 ~]# systemctl start nginx && systemctl enable nginx
Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.

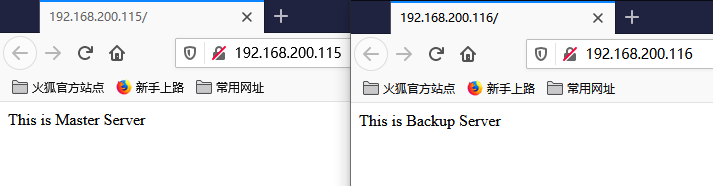

修改两台Nginx节点的首页，以示区分，并且浏览器中访问两台LB节点

[root@k8s-lb01 ~]# echo "This is Master Server" > /usr/share/nginx/html/index.html
[root@k8s-lb02 ~]# echo "This is Backup Server" > /usr/share/nginx/html/index.html

2.13、部署Keepalived

[root@k8s-lb01 ~]# yum -y install keepalived
[root@k8s-lb01 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id LVS_DEVEL
}

vrrp_script check_nginx {
    script "/etc/nginx/check_nginx.sh"
}

vrrp_instance VI_1 {
    state MASTER
    interface ens32
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.200.200
    }
    track_script {
        check_nginx
    }
}

[root@k8s-lb01 ~]# scp /etc/keepalived/keepalived.conf 192.168.200.116:/etc/keepalived/
[root@k8s-lb02 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id LVS_DEVEL
}

vrrp_script check_nginx {
    script "/etc/nginx/check_nginx.sh"
}

vrrp_instance VI_1 {
    state BACKUP    # 修改
    interface ens32
    virtual_router_id 51
    priority 90    # 修改优先级
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.200.200
    }
    track_script {
        check_nginx
    }
}

在两台LB节点上创建触发脚本，统计数据进行比对，值为0的时候，关闭Keepalived服务。

lb01、lb02主机上均执行以下操作

[root@k8s-lb01 ~]# vim /etc/nginx/check_nginx.sh
count=$(ps -ef|grep nginx|egrep -cv "grep|$$")
if [ "$count" -eq 0 ];then
    systemctl stop keepalived
fi
[root@k8s-lb02 ~]# chmod +x /etc/nginx/check_nginx.sh
[root@k8s-lb02 ~]# systemctl start keepalived && systemctl enable keepalived

        查看网卡信息，可以查看到k8s-lb01节点上有漂移地址192.168.200.200/24，而k8s-lb02节点上没有漂移地址。

[root@k8s-lb01 ~]# ip a s ens32
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:3b:05:a3 brd ff:ff:ff:ff:ff:ff
    inet 192.168.200.115/24 brd 192.168.200.255 scope global noprefixroute ens32
       valid_lft forever preferred_lft forever
    inet 192.168.200.200/32 scope global ens32
       valid_lft forever preferred_lft forever
    inet6 fe80::e88c:df62:6a14:b1f3/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
    inet6 fe80::5d90:6146:c376:1e0f/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
    inet6 fe80::ea69:6f19:80be:abc3/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
[root@k8s-lb02 ~]# ip a s ens32
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:74:cc:8a brd ff:ff:ff:ff:ff:ff
    inet 192.168.200.116/24 brd 192.168.200.255 scope global noprefixroute ens32
       valid_lft forever preferred_lft forever
    inet6 fe80::5d90:6146:c376:1e0f/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
    inet6 fe80::e88c:df62:6a14:b1f3/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
    inet6 fe80::ea69:6f19:80be:abc3/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever

        验证故障转移切换：首先将k8s-lb01节点上的Nginx服务关闭，查看IP信息可以看出k8s-lb01的漂移IP已经不存在，Keepalived服务也关闭离；查看k8s-lb02的IP信息，漂移IP地址已经绑定在k8s-lb02节点上。此时在将k8s-lb01的Nginx与Keepalived服务开启，漂移IP地址就会重新k8s-lb01节点上。

[root@k8s-lb01 ~]# systemctl stop nginx
[root@k8s-lb01 ~]# ps aux | grep [k]eepalived

[root@k8s-lb02 ~]# ip a s ens32
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:74:cc:8a brd ff:ff:ff:ff:ff:ff
    inet 192.168.200.116/24 brd 192.168.200.255 scope global noprefixroute ens32
       valid_lft forever preferred_lft forever
    inet 192.168.200.200/32 scope global ens32
       valid_lft forever preferred_lft forever
    inet6 fe80::5d90:6146:c376:1e0f/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
    inet6 fe80::e88c:df62:6a14:b1f3/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
    inet6 fe80::ea69:6f19:80be:abc3/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever

故障恢复测试

[root@k8s-lb01 ~]# systemctl start nginx
[root@k8s-lb01 ~]# systemctl start keepalived
[root@k8s-lb01 ~]# ip a s ens32
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:3b:05:a3 brd ff:ff:ff:ff:ff:ff
    inet 192.168.200.115/24 brd 192.168.200.255 scope global noprefixroute ens32
       valid_lft forever preferred_lft forever
    inet 192.168.200.200/32 scope global ens32
       valid_lft forever preferred_lft forever
    inet6 fe80::e88c:df62:6a14:b1f3/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
    inet6 fe80::5d90:6146:c376:1e0f/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
    inet6 fe80::ea69:6f19:80be:abc3/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
[root@k8s-lb02 ~]# ip add s ens32
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:74:cc:8a brd ff:ff:ff:ff:ff:ff
    inet 192.168.200.116/24 brd 192.168.200.255 scope global noprefixroute ens32
       valid_lft forever preferred_lft forever
    inet6 fe80::e88c:df62:6a14:b1f3/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
    inet6 fe80::5d90:6146:c376:1e0f/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever
    inet6 fe80::ea69:6f19:80be:abc3/64 scope link tentative noprefixroute dadfailed
       valid_lft forever preferred_lft forever

        修改两台node节点上的bootstrap.kubeconfig、kubelet.kubeconfig和kube-prosy.kubeconfig配置文件，这三个文件中指向API Server的IP地址，将此地址更新为VIP地址。

node01、node02主机上均执行以下操作

[root@k8s-node01 ~]# cd /opt/kubernetes/cfg/
[root@k8s-node01 cfg]# vim bootstrap.kubeconfig
……//省略部分内容
    server: https://192.168.200.111:6443
……//省略部分内容

[root@k8s-node01 cfg]# vim kubelet.kubeconfig
……//省略部分内容
    server: https://192.168.200.111:6443
……//省略部分内容

[root@k8s-node01 cfg]# vim kube-proxy.kubeconfig
……//省略部分内容
    server: https://192.168.200.111:6443
……//省略部分内容

[root@k8s-node01 cfg]# grep 200.200 *
bootstrap.kubeconfig:    server: https://192.168.200.200:6443
kubelet.kubeconfig:    server: https://192.168.200.200:6443
kube-proxy.kubeconfig:    server: https://192.168.200.200:6443

重启两台node节点相关服务。node01、node02主机上均执行以下操作

[root@k8s-node01 cfg]# systemctl restart kubelet
[root@k8s-node01 cfg]# systemctl restart kube-proxy

k8s-lb01节点上动态查看Nginx的访问日志。从日志中可以看出了负载均衡已经实现。

[root@k8s-lb01 ~]# tail -fn 200 /var/log/nginx/k8s-access.log
192.168.200.113 192.168.200.111:6443 - [29/Jan/2021:20:29:41 +0800] 200 1120
192.168.200.113 192.168.200.112:6443 - [29/Jan/2021:20:29:41 +0800] 200 1120
192.168.200.114 192.168.200.112:6443 - [29/Jan/2021:20:30:12 +0800] 200 1121
192.168.200.114 192.168.200.111:6443 - [29/Jan/2021:20:30:12 +0800] 200 1121

2.14、部署测试应用

在k8s-master01节点上创建Pod，使用的镜像是Nginx。

[root@k8s-node01 ~]# docker pull nginx
[root@k8s-node02 ~]# docker pull nginx

[root@k8s-master01 ~]# kubectl run nginx --image=nginx
kubectl run --generator=deployment/apps.v1beta1 is DEPRECATED and will be removed in a future version. Use kubectl create instead.
deployment.apps/nginx created
[root@k8s-master01 ~]# kubectl get pod
NAME                    READY   STATUS    RESTARTS   AGE
nginx-dbddb74b8-9f5m6   1/1     Running   1          21h

开启查看日志权限。

[root@k8s-master01 ~]# kubectl create clusterrolebinding cluseter-system-anonymous --clusterrole=cluster-admin --user=system:anonymous
clusterrolebinding.rbac.authorization.k8s.io/cluseter-system-anonymous created

通过-o wide参数，输出整个网络状态。可以查看此容器的IP是172.17.11.2，容器是放在IP地址为192.168.200.113的node节点中。

[root@k8s-master01 ~]# kubectl get pods -o wide
NAME                    READY   STATUS    RESTARTS   AGE     IP            NODE              NOMINATED NODE
nginx-dbddb74b8-9f5m6   1/1     Running   0          4m27s   172.17.11.2   192.168.200.113   <none>
[root@k8s-node01 ~]# ip a s flannel.1
4: flannel.1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN group default
    link/ether a6:29:7d:74:2d:1a brd ff:ff:ff:ff:ff:ff
    inet 172.17.11.0/32 scope global flannel.1
       valid_lft forever preferred_lft forever
    inet6 fe80::a429:7dff:fe74:2d1a/64 scope link
       valid_lft forever preferred_lft forever

        使用curl访问Pod容器地址172.17.11.2。访问日志会产生信息，回到k8s-master01节点中查看日志信息。并且查看容器。其他的node节点也能访问到。

[root@k8s-node01 ~]#  curl 172.17.11.2
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

查看日志输出

[root@k8s-master01 ~]# kubectl logs nginx-dbddb74b8-9f5m6
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: info: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: info: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Configuration complete; ready for start up
172.17.11.1 - - [29/Jan/2021:12:58:28 +0000] "GET / HTTP/1.1" 200 612 "-" "curl/7.29.0" "-"
[root@k8s-master01 ~]# kubectl logs nginx-dbddb74b8-9f5m6
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: info: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: info: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Configuration complete; ready for start up
172.17.11.1 - - [29/Jan/2021:12:58:28 +0000] "GET / HTTP/1.1" 200 612 "-" "curl/7.29.0" "-"
172.17.11.1 - - [29/Jan/2021:12:59:41 +0000] "GET / HTTP/1.1" 200 612 "-" "curl/7.29.0" "-"













上一篇 下一篇
优秀的个人博客,低调大师

微信关注我们

原文链接：https://my.oschina.net/Ultralinux/blog/4938665

转载内容版权归作者及来源网站所有！

低调大师中文资讯倾力打造互联网数据资讯、行业资源、电子商务、移动互联网、网络营销平台。持续更新报道IT业界、互联网、市场资讯、驱动更新,是最及时权威的产业资讯及硬件资讯报道平台。

Golang学习笔记--slice使用总结

切片对数组进行包装，为数据序列提供了更通用、更强大和更方便的接口。Go中的大多数数组编程都是用切片而不是简单的数组来完成的 slice（切片）代表变长的序列，序列中每个元素都有相同的类型。一个slice类型一般写作[]T，其中T代表slice中元素的类型。 1.slice创建 直接通过初始化参数创建 slice0 := []int{1,3,7,5,2,3,4} fmt.Println(slice0,len(slice0),cap(slice0)) // [1 3 7 5 2 3 4] 7 7 使用内置函数make创建。使用默认值进行初始化 slice1 := make([]int,5,10) fmt.Println(slice1,len(slice1),cap(slice1)) // [0 0 0 0 0] 5 10 从指定下标创建。没指定的将使用默认值进行初始化，比如int类型是0值，string类型是空串。 slice2 := [...]int{1:1,12:12} fmt.Println(slice2) // [0 1 0 0 0 0 0 0 0 0 0 0 12]...
2021-01-30
655
上一篇

Kotlin Vocabulary | Kotlin 默认参数

默认参数 是一个简短而易用的功能，它可以让您无需模版代码便可实现函数重载。和 Kotlin 所提供的许多其他功能一样，默认参数会给人一种魔法般的感觉。如果您想要知道其中的奥秘，请继续阅读，本文将会揭晓默认参数内部的工作原理。 基本用法 如果您需要重载一个函数，您可以使用默认参数，而不是将同一个函数实现许多次: &lt;!-- Copyright 2019 Google LLC. SPDX-License-Identifier: Apache-2.0 --&gt; // 无需像下面这样实现： fun play(toy: Toy){ ... } fun play(){ play(SqueakyToy) } // 使用默认参数： fun play(toy: Toy = SqueakyToy) fun startPlaying() { play(toy = Stick) play() // toy = SqueakyToy } 默认参数也可以应用于构造函数中: &lt;!-- Copyright 2019 Google LLC. SPDX-License-Identifier: Apache-...
2021-01-30
606
下一篇

相关文章

发表评论

资源下载

更多资源
腾讯云软件源

腾讯云软件源

为解决软件依赖安装时官方源访问速度慢的问题，腾讯云为一些软件搭建了缓存服务。您可以通过使用腾讯云软件源站来提升依赖包的安装速度。为了方便用户自由搭建服务架构，目前腾讯云软件源站支持公网访问和内网访问。

时间: 2026-04-11 大小: 1MB 下载: 9次
Nacos

Nacos

Nacos /nɑ:kəʊs/ 是 Dynamic Naming and Configuration Service 的首字母简称，一个易于构建 AI Agent 应用的动态服务发现、配置管理和AI智能体管理平台。Nacos 致力于帮助您发现、配置和管理微服务及AI智能体应用。Nacos 提供了一组简单易用的特性集，帮助您快速实现动态服务发现、服务配置、服务元数据、流量管理。Nacos 帮助您更敏捷和容易地构建、交付和管理微服务平台。

时间: 2026-04-24 大小: 189MB 下载: 6次
Rocky Linux

Rocky Linux

Rocky Linux（中文名：洛基）是由Gregory Kurtzer于2020年12月发起的企业级Linux发行版，作为CentOS稳定版停止维护后与RHEL（Red Hat Enterprise Linux）完全兼容的开源替代方案，由社区拥有并管理，支持x86_64、aarch64等架构。其通过重新编译RHEL源代码提供长期稳定性，采用模块化包装和SELinux安全架构，默认包含GNOME桌面环境及XFS文件系统，支持十年生命周期更新。

时间: 2026-05-30 大小: 1.42GB 下载: 5次
WebStorm

WebStorm

WebStorm 是jetbrains公司旗下一款JavaScript 开发工具。目前已经被广大中国JS开发者誉为“Web前端开发神器”、“最强大的HTML5编辑器”、“最智能的JavaScript IDE”等。与IntelliJ IDEA同源，继承了IntelliJ IDEA强大的JS部分的功能。

时间: 2025-12-13 大小: 249.54MB 下载: 22次
手机查看

扫码在手机上查看文章

扫描二维码，手机阅读更方便

热门标签
DeepSeek Jdk25 OpenAi HarmonyOS6 Nacos3 SpringBoot4 SpringCloud Docker Kubernetes Service Mesh Redis Gemini3 Rocky

欢迎您来访！

登录后，您将获得更多功能！
热门文章
联系我们

有任何问题或合作意向欢迎联系我们

Email: 99873273@qq.com

QQ: 99873273

用户登录
用户注册
