Ubuntu 16.04/18.04/20.04 安装 ffmpeg4.4

​ 最近在玩以太网推视频流。由于自身不是做上层应用层软件出生，只能现有工具的手段完成。通过Google和度娘搜索有两种方案：FFmpeg和GStreamer的方案。最终我选择使用FFmpeg工具。

​ FFmpeg_百度百科 (baidu.com) 是一套可以用来记录、转换数字音频、视频，并能将其转化为流的开源计算机程序。采用LGPL或GPL许可证。它提供了录制、转换以及流化音视频的完整解决方案。它包含了非常先进的音频/视频编解码库libavcodec，为了保证高可移植性和编解码质量，libavcodec里很多code都是从头开发的。

FFmpeg在Linux平台下开发，但它同样也可以在其它操作系统环境中编译运行，包括Windows、[Mac OS X](https://baike.baidu.com/item/Mac OS X/470629)等。这个项目最早由Fabrice Bellard发起，2004年至2015年间由Michael Niedermayer主要负责维护。许多FFmpeg的开发人员都来自MPlayer项目，而且当前FFmpeg也是放在MPlayer项目组的服务器上。项目的名称来自MPEG视频编码标准，前面的"FF"代表"Fast Forward"。 [1] FFmpeg编码库可以使用GPU加速。

​ 我的Linux服务器是Ubuntu16.04。下面方法适用于Ubuntu16.04以上任何版本的Ubuntu。

给当前Ubuntu添加PPA源

​ PPA是Personal Package Archives首字母简写。翻译为中文意思是：个人软件包文档。只有Ubuntu用户可以用，而所有的PPA都是寄存在launchpad.net网站上。使用PPA的好处是Ubuntu系统中使用PPA源的软件可以让你在第一时间体验到最新版本的软件。

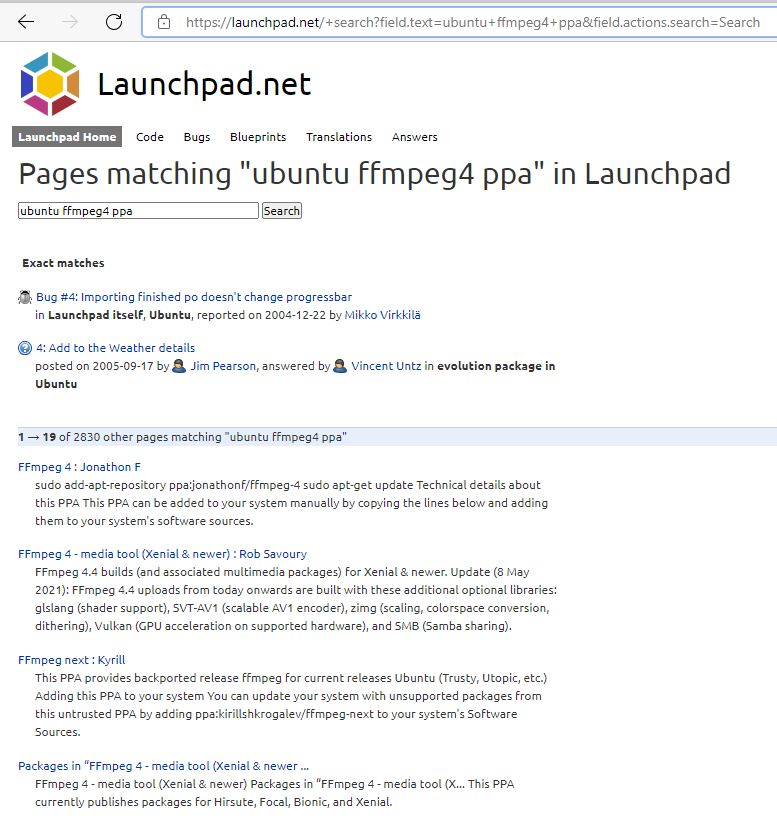

​ 所以我们需要在launchpad.net网站上搜索我们对应Ubuntu16.04的ffmpeg4 ppa软件包。

点开FFmpeg 4 - media tool (Xenial & newer) : Rob Savoury

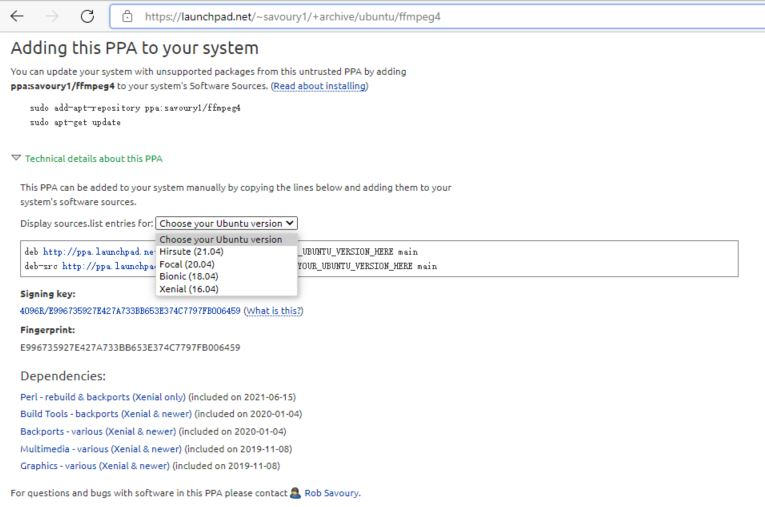

非常感谢Rob Savoury，他的ppa:savoury1包含了Ubuntu版本比较多从Ubuntu 16.04(Xenial)到Ubuntu20.04(Focal)。

增加PPA并升级相应的软件包：

 $ sudo add-apt-repository ppa:savoury1/graphics $ sudo add-apt-repository ppa:savoury1/multimedia $ sudo add-apt-repository ppa:savoury1/ffmpeg4 $ sudo apt-get update $ sudo apt-get upgrade && sudo apt-get dist-upgrade $ sudo apt-get install ffmpeg

命令log如下：

 $ sudo add-apt-repository ppa:savoury1/graphics $ sudo add-apt-repository ppa:savoury1/multimedia $ sudo add-apt-repository ppa:savoury1/ffmpeg4 FFmpeg 4.4 builds (and associated multimedia packages) for Xenial & newer. Update (8 May 2021): FFmpeg 4.4 uploads from today onwards are built with these additional optional libraries: glslang (shader support), SVT-AV1 (scalable AV1 encoder), zimg (scaling, colorspace conversion, dithering), Vulkan (GPU acceleration on supported hardware), and SMB (Samba sharing). ==========================================================================                    FFmpeg 4 - media tool (Xenial & newer) ========================================================================== ...... ...... *** Install *** FFmpeg can be installed from this PPA alone, as the required packages to satisfy minimum versions have been copied here (notify me if any missing). However, if _all_ newest versions of graphics and multimedia packages are desired then two additional PPAs can be added before installing FFmpeg:   sudo add-apt-repository ppa:savoury1/graphics   sudo add-apt-repository ppa:savoury1/multimedia   sudo add-apt-repository ppa:savoury1/ffmpeg4   sudo apt-get update   sudo apt-get upgrade && sudo apt-get dist-upgrade   sudo apt-get install ffmpeg ...... ...... *** Build *** This PPA has build dependencies on:   ppa:savoury1/build-tools   ppa:savoury1/backports   ppa:savoury1/graphics   ppa:savoury1/multimedia *** Credits *** ...... ...... Press [ENTER] to continue or ctrl-c to cancel adding it gpg: keyring `/tmp/tmpq1hloyh6/secring.gpg' created gpg: keyring `/tmp/tmpq1hloyh6/pubring.gpg' created gpg: requesting key FB006459 from hkp server keyserver.ubuntu.com gpg: /tmp/tmpq1hloyh6/trustdb.gpg: trustdb created gpg: key FB006459: public key "Launchpad PPA for Rob Savoury" imported gpg: Total number processed: 1 gpg: imported: 1 (RSA: 1) OK $ sudo apt-get update Hit:1 http://mirrors.aliyun.com/docker-ce/linux/ubuntu xenial InRelease Hit:2 https://mirrors.aliyun.com/docker-ce/linux/ubuntu xenial InRelease Hit:3 http://ppa.launchpad.net/savoury1/ffmpeg4/ubuntu xenial InRelease ...... ...... Get:23 http://ppa.launchpad.net/savoury1/multimedia/ubuntu xenial/main Translation-en [113 kB] Fetched 2,023 kB in 8s (234 kB/s) Reading package lists... Done W: Duplicate sources.list entry https://mirrors.aliyun.com/docker-ce/linux/ubuntu xenial Release $ sudo apt-get upgrade && sudo apt-get dist-upgrade $ sudo apt-get install ffmpeg

Check当前ffmpeg的版本：

 $ ffmpeg -version ffmpeg version 4.4-1ubuntu0~16.04.sav0.1 Copyright (c) 2000-2021 the FFmpeg developers built with gcc 5.4.0 (Ubuntu 5.4.0-6ubuntu1~16.04.12) 20160609 configuration: --prefix=/usr --extra-version='1ubuntu0~16.04.sav0.1' --toolchain=hardened --libdir=/usr/lib/x86_64-linux-gnu --incdir=/usr/include/x86_64-linux-gnu --arch=amd64 --enable-gpl --disable-stripping --enable-avresample --disable-filter=resample --enable-gnutls --enable-ladspa --enable-libaom --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libcdio --enable-libcodec2 --enable-libdav1d --enable-libflite --enable-libfontconfig --enable-libfreetype --enable-libfribidi --enable-libgme --enable-libgsm --enable-libjack --enable-libmp3lame --enable-libmysofa --enable-libopenjpeg --enable-libopenmpt --enable-libopus --enable-libpulse --enable-librabbitmq --enable-librubberband --enable-libshine --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvorbis --enable-libvpx --enable-libwebp --enable-libx265 --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-libzvbi --enable-lv2 --enable-omx --enable-openal --enable-opencl --enable-opengl --enable-sdl2 --enable-pocketsphinx --enable-librsvg --enable-crystalhd --enable-libmfx --enable-libdc1394 --enable-libdrm --enable-libiec61883 --enable-nvenc --enable-chromaprint --enable-frei0r --enable-libx264 --enable-shared libavutil 56. 70.100 / 56. 70.100 libavcodec 58.134.100 / 58.134.100 libavformat 58. 76.100 / 58. 76.100 libavdevice 58. 13.100 / 58. 13.100 libavfilter 7.110.100 / 7.110.100 libavresample 4. 0. 0 / 4. 0. 0 libswscale 5. 9.100 / 5. 9.100 libswresample 3. 9.100 / 3. 9.100 libpostproc 55. 9.100 / 55. 9.100

给开发板安装FFmpeg-static

由于开发板跑Linux不具备和PC Ubuntu一样的能力。所以最快捷的方式是使用FFmpeg-static静态编译，生成可执行文件直接在板子上跑。

这个得感谢github的Jonas Chevalier和John Van Sickle。两个人分别提供了现成的编译脚本或者编译文件。

1. 首先我说一下Jonas Chevalier如何编译。

Ubuntu用户直接用下面一条命令即可：

 sudo ./build-ubuntu.sh #似乎这个5年没有人更新了编译有问题。这个必须是基于Ubuntu18.04的版本。

最近更新的是Dockerfile和build.sh。浏览了Dockerfile

 FROM ubuntu:bionic # bionic is Ubuntu18.04 # Basic packages needed to download dependencies and unpack them. RUN apt-get update && apt-get install -y \ bzip2 \ perl \ tar \ wget \ xz-utils \ && rm -rf /var/lib/apt/lists/* # Install packages necessary for compilation. RUN apt-get update && apt-get install -y \ autoconf \ automake \ bash \ build-essential \ cmake \ curl \ frei0r-plugins-dev \ gawk \ libfontconfig-dev \ libfreetype6-dev \ libopencore-amrnb-dev \ libopencore-amrwb-dev \ libsdl2-dev \ libspeex-dev \ libtheora-dev \ libtool \ libva-dev \ libvdpau-dev \ libvo-amrwbenc-dev \ libvorbis-dev \ libwebp-dev \ libxcb1-dev \ libxcb-shm0-dev \ libxcb-xfixes0-dev \ libxvidcore-dev \ lsb-release \ pkg-config \ sudo \ tar \ texi2html \ yasm \ && rm -rf /var/lib/apt/lists/* # Copy the build scripts. COPY dl.tar.gz build.sh download.pl env.source fetchurl /ffmpeg-static/ VOLUME /ffmpeg-static WORKDIR /ffmpeg-static CMD /bin/bash

所以我基于Docker编译,如何搭建Docker环境，大家可以参考**Ubuntu16.04/18.04/20.04下安装Docker**。

由于国内强的问题，build.sh里去下载文件的时候会失败。大家可以wget https://gitee.com/msntec/open-source-tool/blob/master/ffmpeg/static/dl.tar.gz到ffmpeg-static目录里。

 # 根据当前目录的Dockerfile创建ffmpeg-static镜像 $ docker build -t ffmpeg-static . # 运行ffmpeg-static镜像 $ docker run -it ffmpeg-static # 编译生成静态文件 $ ./build.sh

静态的ffmpeg等文件即将被创建再/ffmpeg-static/bin目录下：

 root@54ad0ea1b861:/ffmpeg-static/bin# ls -al total 85340 drwxr-xr-x 2 root root 4096 Oct 15 09:23 . drwxr-xr-x 6 root root 4096 Oct 15 09:06 .. -rwxr-xr-x 1 root root 40376352 Oct 15 09:23 ffmpeg -rwxr-xr-x 1 root root 40286240 Oct 15 09:23 ffprobe -rwxr-xr-x 1 root root 1910448 Oct 15 09:06 nasm -rwxr-xr-x 1 root root 1369576 Oct 15 09:06 ndisasm -rwxr-xr-x 1 root root 1143080 Oct 15 09:06 vsyasm -rwxr-xr-x 1 root root 1142992 Oct 15 09:06 yasm -rwxr-xr-x 1 root root 1134160 Oct 15 09:06 ytasm root@54ad0ea1b861:/ffmpeg-static/bin#

2. 我们在说一下John Van Sickle的方法。

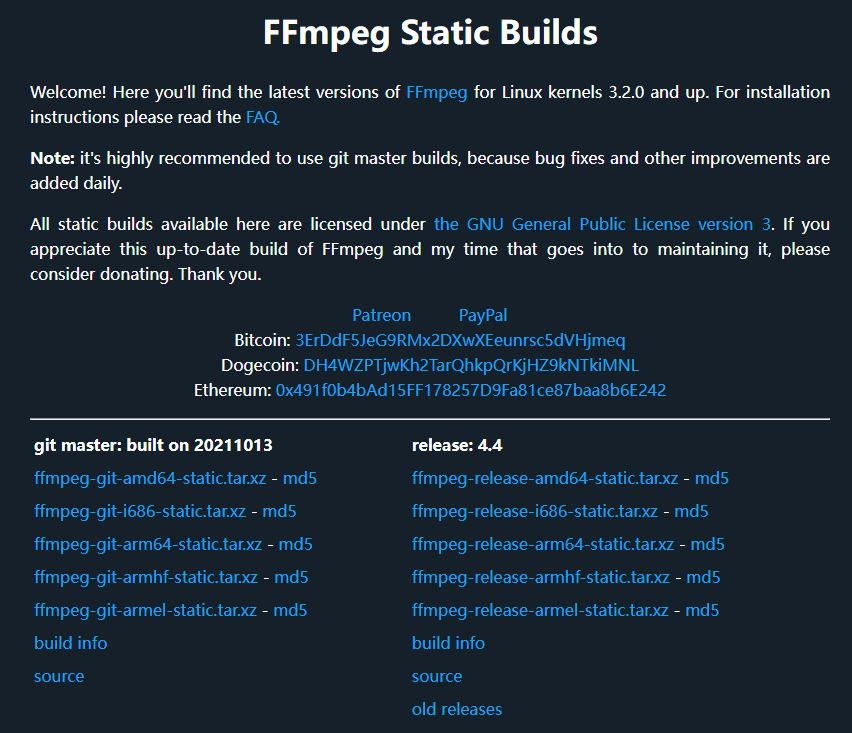

John Van Sickle比较直接，他已经提供好了直接的静态镜像给大家。

x86_64,x86_32,Arm64,Arm32静态镜像都有。也提供相应的静态编译源码给大家自行编译。

下面我直接拿x86_64解压作为运行实例

 $ wget https://johnvansickle.com/ffmpeg/releases/ffmpeg-release-amd64-static.tar.xz --2021-10-15 17:47:56-- https://johnvansickle.com/ffmpeg/releases/ffmpeg-release-amd64-static.tar.xz Resolving johnvansickle.com (johnvansickle.com)... 107.180.57.212 Connecting to johnvansickle.com (johnvansickle.com)|107.180.57.212|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 39577132 (38M) [application/x-xz] Saving to: ‘ffmpeg-release-amd64-static.tar.xz’ ffmpeg-release-amd64-static.tar.xz 100%[============================================================================================================================================================>] 37.74M 6.32MB/s in 8.3s 2021-10-15 17:48:05 (4.55 MB/s) - ‘ffmpeg-release-amd64-static.tar.xz’ saved [39577132/39577132] $ tar -xvJf ffmpeg-release-amd64-static.tar.xz ffmpeg-4.4-amd64-static/ ffmpeg-4.4-amd64-static/GPLv3.txt ffmpeg-4.4-amd64-static/manpages/ ffmpeg-4.4-amd64-static/manpages/ffmpeg-all.txt ...... ...... ffmpeg-4.4-amd64-static/model/vmaf_v0.6.1neg.pkl ffmpeg-4.4-amd64-static/readme.txt ffmpeg-4.4-amd64-static/ffmpeg $ cd ffmpeg-4.4-amd64-static/ $ ./ffmpeg -version ffmpeg version 4.4-static https://johnvansickle.com/ffmpeg/ Copyright (c) 2000-2021 the FFmpeg developers built with gcc 8 (Debian 8.3.0-6) configuration: --enable-gpl --enable-version3 --enable-static --disable-debug --disable-ffplay --disable-indev=sndio --disable-outdev=sndio --cc=gcc --enable-fontconfig --enable-frei0r --enable-gnutls --enable-gmp --enable-libgme --enable-gray --enable-libaom --enable-libfribidi --enable-libass --enable-libvmaf --enable-libfreetype --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --enable-librubberband --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libvorbis --enable-libopus --enable-libtheora --enable-libvidstab --enable-libvo-amrwbenc --enable-libvpx --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxml2 --enable-libdav1d --enable-libxvid --enable-libzvbi --enable-libzimg libavutil 56. 70.100 / 56. 70.100 libavcodec 58.134.100 / 58.134.100 libavformat 58. 76.100 / 58. 76.100 libavdevice 58. 13.100 / 58. 13.100 libavfilter 7.110.100 / 7.110.100 libswscale 5. 9.100 / 5. 9.100 libswresample 3. 9.100 / 3. 9.100 libpostproc 55. 9.100 / 55. 9.100 $ ldd ./ffmpeg not a dynamic executable

查看帮助

 $ ffmpeg -bsfs #可用的bit流 $ ffmpeg -codecs #可用的编解码器 $ ffmpeg -decoders #可用的解码器 $ ffmpeg -encoders #可用的编码器 $ ffmpeg -filters #可用的过滤器 $ ffmpeg -formats #可用的视频格式 $ ffmpeg -layouts #可用的声道布局 $ ffmpeg -L #可用的license $ ffmpeg -pix_fmts #可用的像素格式 $ ffmpeg -protocals #可用的协议

录屏

 ffmpeg -video_size 1920x1080 -framerate 25 -f x11grab -i :0.0 out.mp4

UDP推流

 ffmpeg -f x11grab -i :0.0 -s 1920x720 -r 50 -vcodec libx264 -preset ultrafast -tune zerolatency -crf 18 -f mpegts udp://192.168.2.102:1234 ffplay -protocol_whitelist "file,udp,rtp" -i udp://192.168.2.102:1234

录屏和录音推流命令，不带GPU加速

 ffmpeg -f x11grab -video_size 1920x1080 -framerate 25 -i :0.0+0,0 -f alsa -ac 2 -i default -vcodec libx264 -acodec libmp3lame -ar 44100 -b:a 128k -f mpegts udp://127.0.0.1:1234 [x11grab @ 0x55ef43bdca40] Stream #0: not enough frames to estimate rate; consider increasing probesize Input #0, x11grab, from ':0.0+0,0': Duration: N/A, start: 1634292242.014571, bitrate: 1658880 kb/s Stream #0:0: Video: rawvideo (BGR[0] / 0x524742), bgr0, 1920x1080, 1658880 kb/s, 25 fps, 1000k tbr, 1000k tbn, 1000k tbc Guessed Channel Layout for Input Stream #1.0 : stereo Input #1, alsa, from 'default': Duration: N/A, start: 1634292241.886154, bitrate: 1536 kb/s Stream #1:0: Audio: pcm_s16le, 48000 Hz, stereo, s16, 1536 kb/s Stream mapping: Stream #0:0 -> #0:0 (rawvideo (native) -> h264 (libx264)) Stream #1:0 -> #0:1 (pcm_s16le (native) -> mp3 (libmp3lame)) Press [q] to stop, [?] for help [libx264 @ 0x55ef43c3b440] using cpu capabilities: MMX2 SSE2Fast SSSE3 SSE4.2 AVX [libx264 @ 0x55ef43c3b440] profile High 4:4:4 Predictive, level 4.0, 4:4:4, 8-bit Output #0, mpegts, to 'udp://127.0.0.1:1234': Metadata: encoder : Lavf58.76.100 Stream #0:0: Video: h264, yuv444p(tv, progressive), 1920x1080, q=2-31, 25 fps, 90k tbn Metadata: encoder : Lavc58.134.100 libx264 Side data: cpb: bitrate max/min/avg: 0/0/0 buffer size: 0 vbv_delay: N/A Stream #0:1: Audio: mp3, 44100 Hz, stereo, s16p, 128 kb/s Metadata: encoder : Lavc58.134.100 libmp3lame [alsa @ 0x55ef43be4900] Thread message queue blocking; consider raising the thread_queue_size option (current value: 8) [alsa @ 0x55ef43be4900] ALSA buffer xrun. frame= 81 fps= 23 q=-1.0 Lsize= 138kB time=00:00:03.20 bitrate= 353.9kbits/s dup=0 drop=1 speed=0.901x

录屏和录音推流命令，带GPU加速。H264+mp3编码

 ffmpeg -f x11grab -video_size 1920x1080 -framerate 25 -i :0.0+0,0 -f alsa -ac 2 -i default -ar 44100 -b:a 128k -acodec libmp3lame -vcodec h264_vaapi -vf scale=1600:900 -f mpegts udp://127.0.0.1:1234

录屏和录音推流命令，带GPU加速。H264+aac编码

 ffmpeg -f x11grab -video_size 1920x1080 -framerate 25 -i :0.0+0,0 -f alsa -ac 2 -i default -vcodec h264_vaapi -acodec aac -ar 44100 -b:a 128k -f mpegts udp://127.0.0.1:1234
